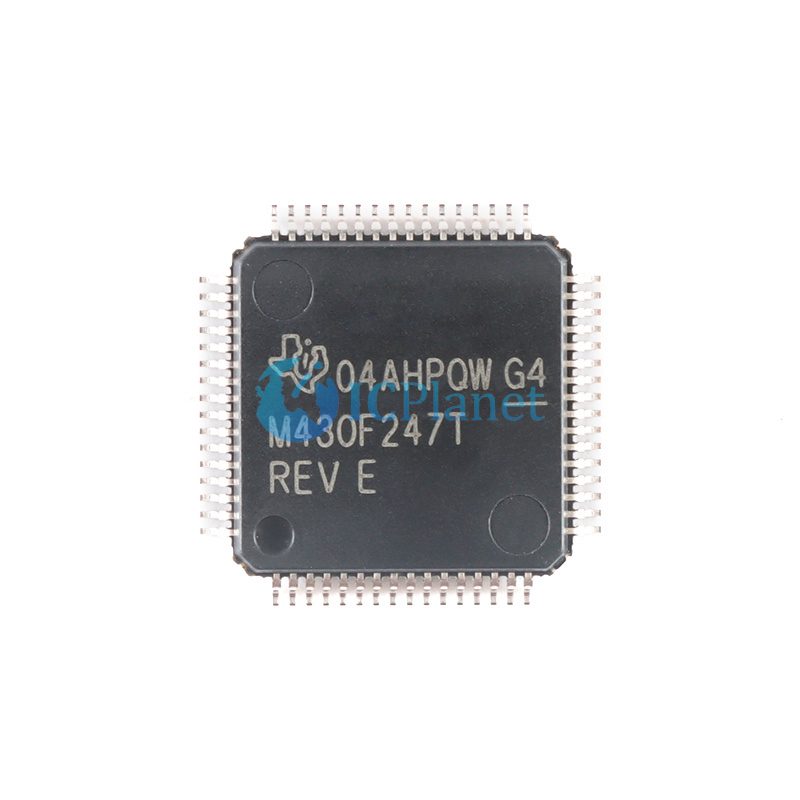

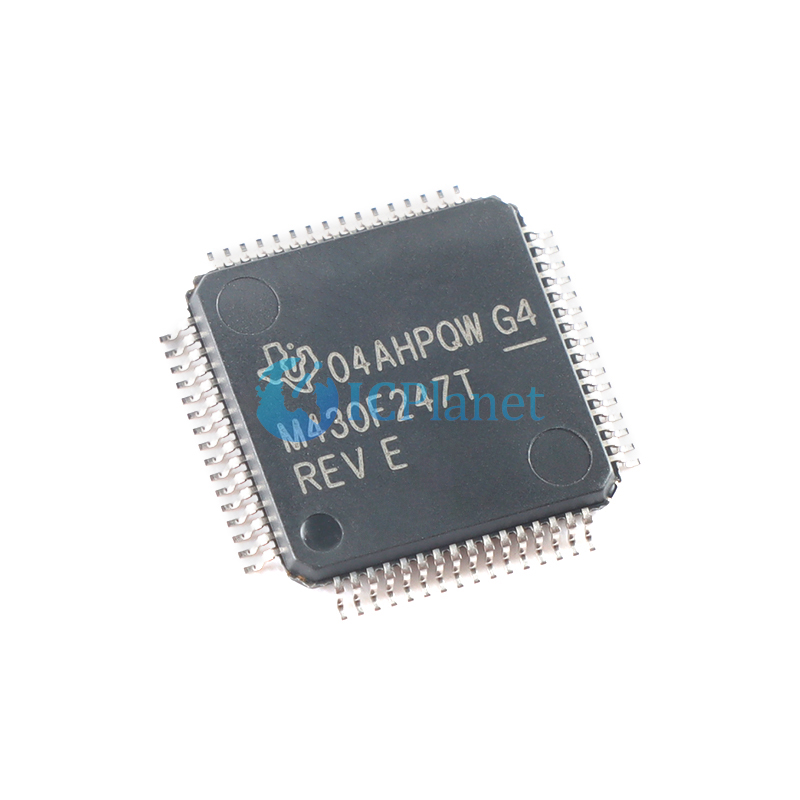

MSP430F247TPMR
Texas Instruments
ICPlanet
MSP430 CPU16 series Microcontroller IC 16-Bit 16MHz 32KB (32K x 8 + 256B) FLASH 64-LQFP (10x10)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430F2xx |

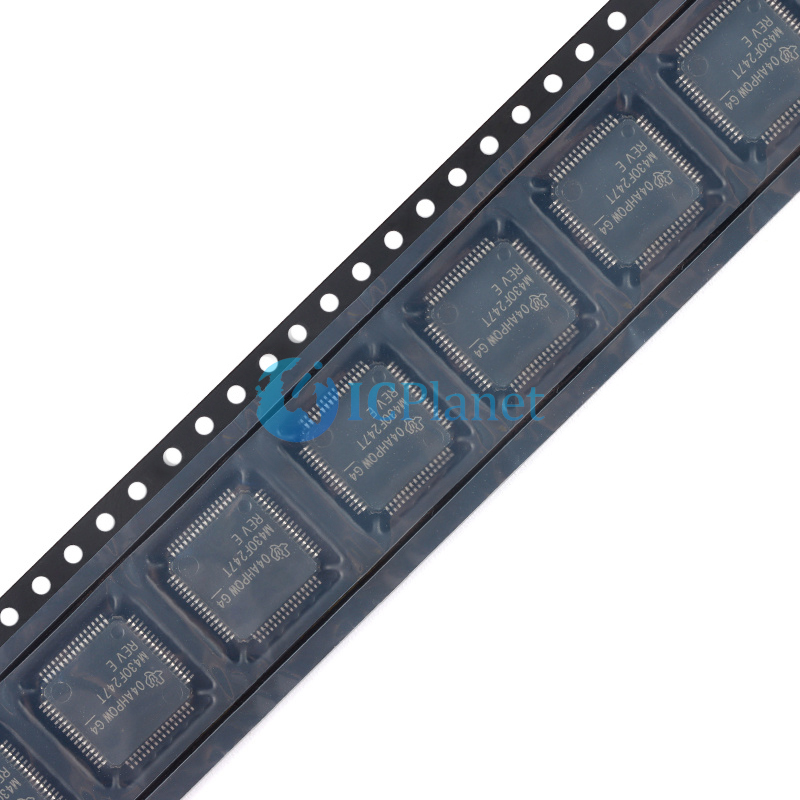

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Core Processor | MSP430 CPU16 |
Core Size | 16-Bit |
Speed | 16MHz |
Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 48 |
Program Memory Size | 32KB (32K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 4K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 8x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 105°C (TA) |
Mounting Type | Surface Mount |

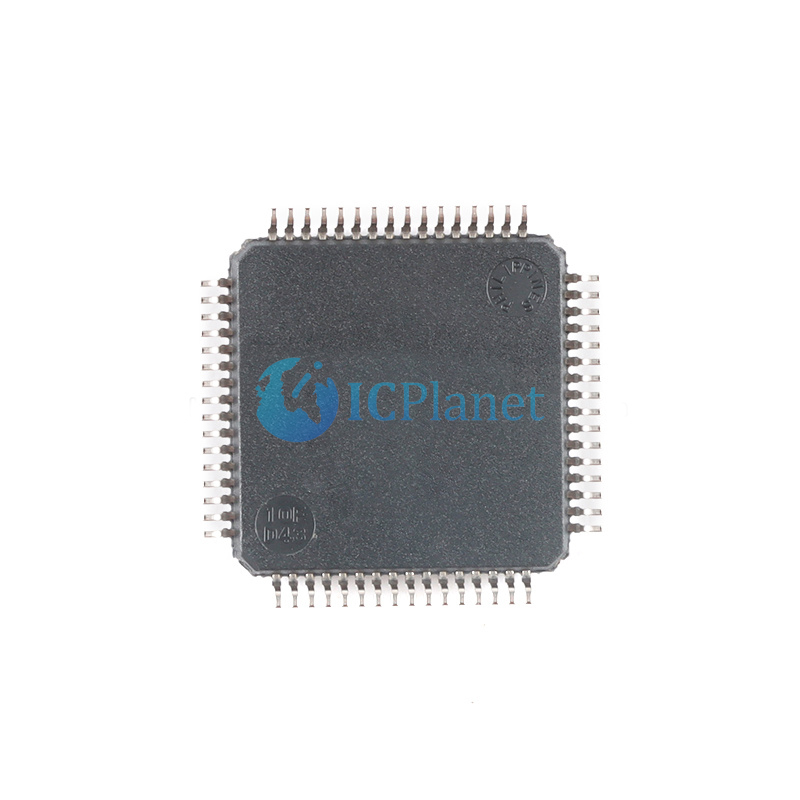

Package / Case | 64-LQFP |
Supplier Device Package | 64-LQFP (10x10) |
