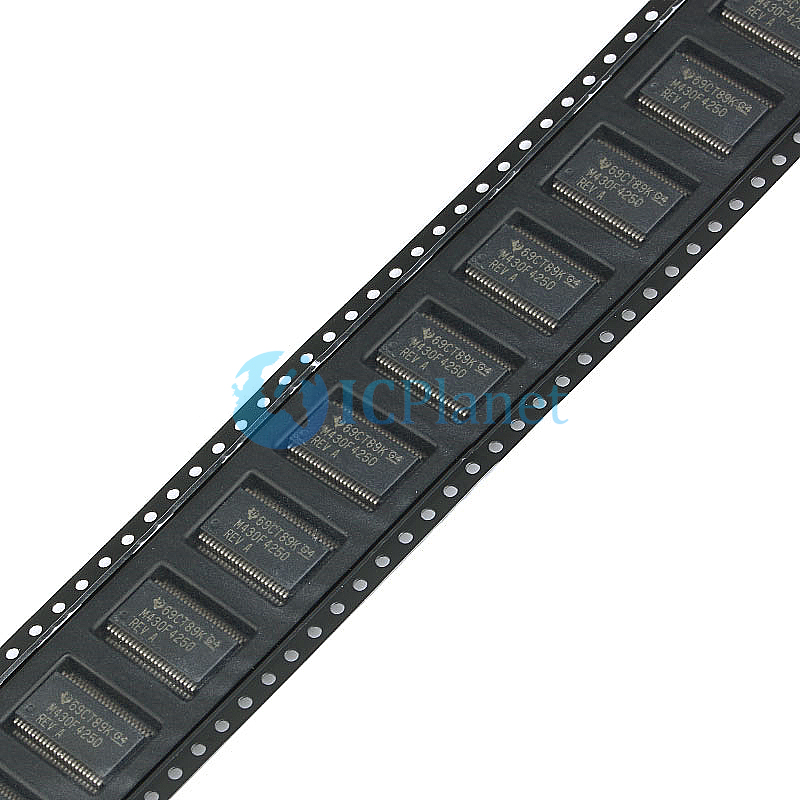

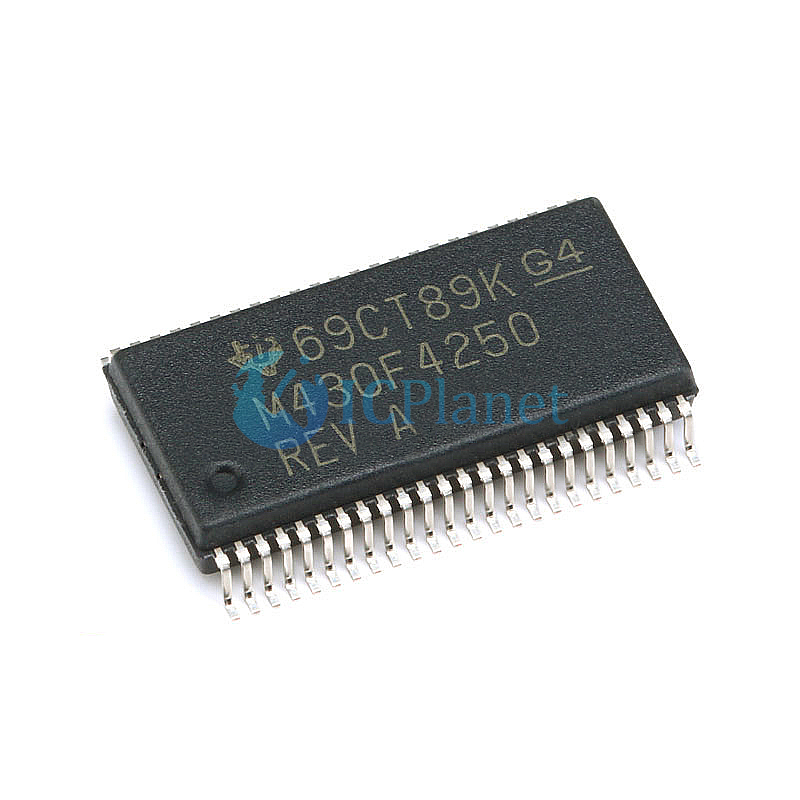

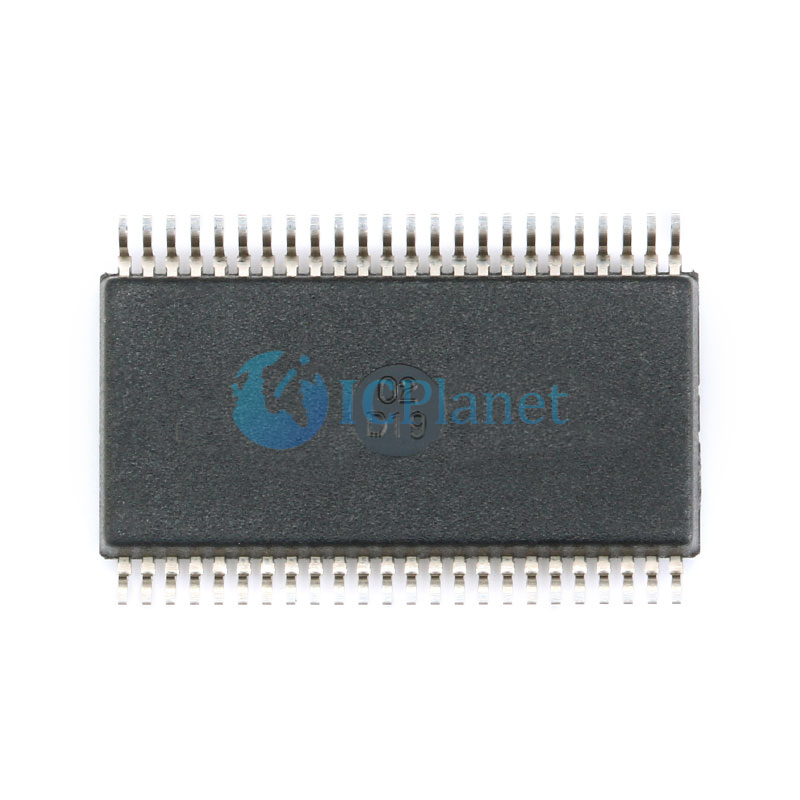

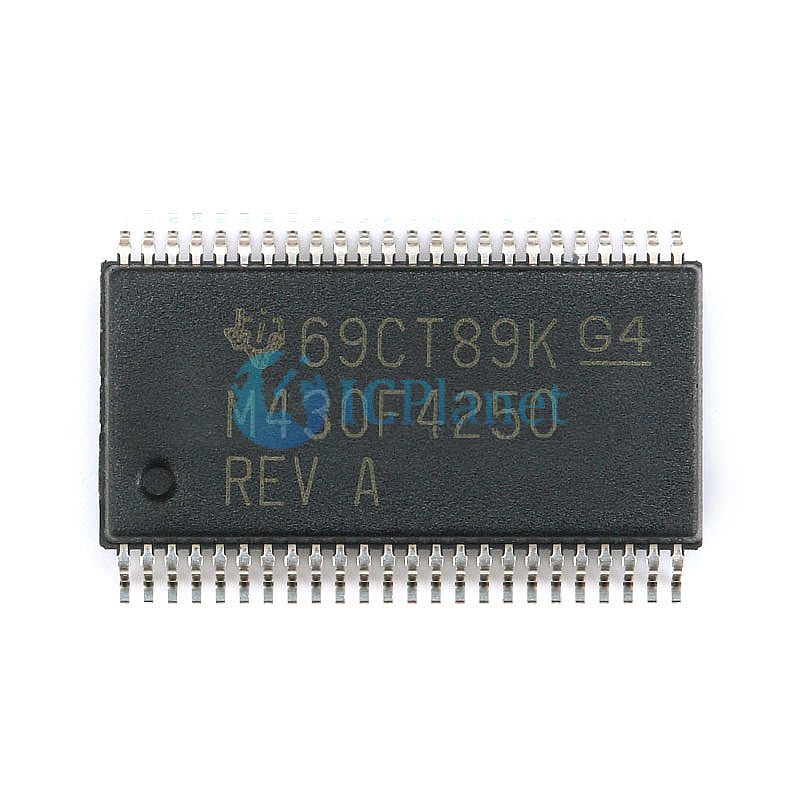

MSP430F4250IDL
Texas Instruments
ICPlanet
MSP430 series Microcontroller IC 16-Bit 8MHz 16KB (16K x 8 + 256B) FLASH 48-SSOP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430x4xx |
Package | Tube |
Part Status | Active |
Core Processor | MSP430 |
Core Size | 16-Bit |
Speed | 8MHz |
Connectivity | - |
Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
Number of I/O | 32 |
Program Memory Size | 16KB (16K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 256 x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 1x16b; D/A 1x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
Supplier Device Package | 48-SSOP |
