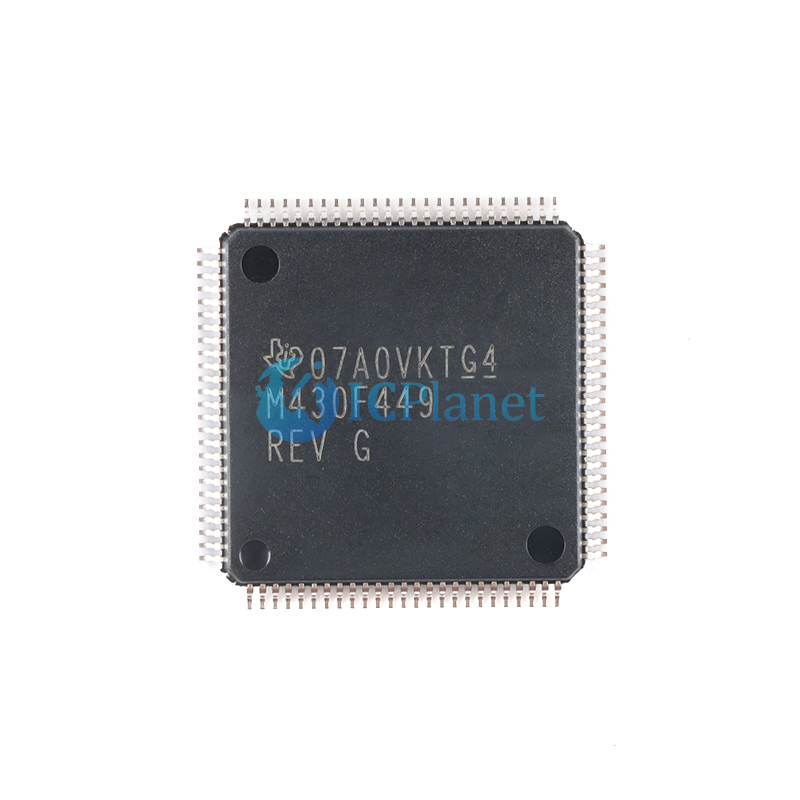

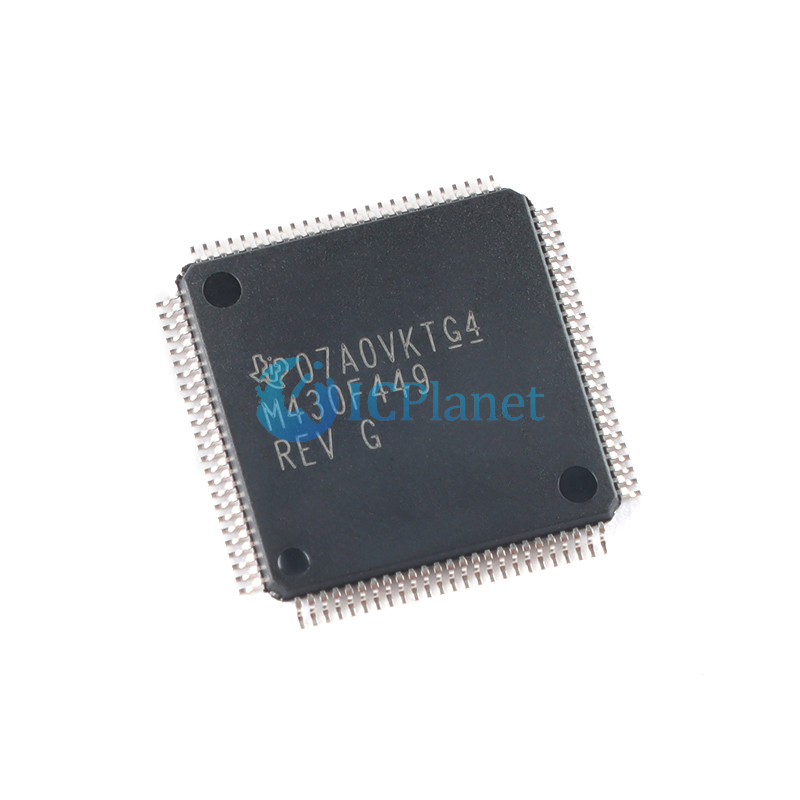

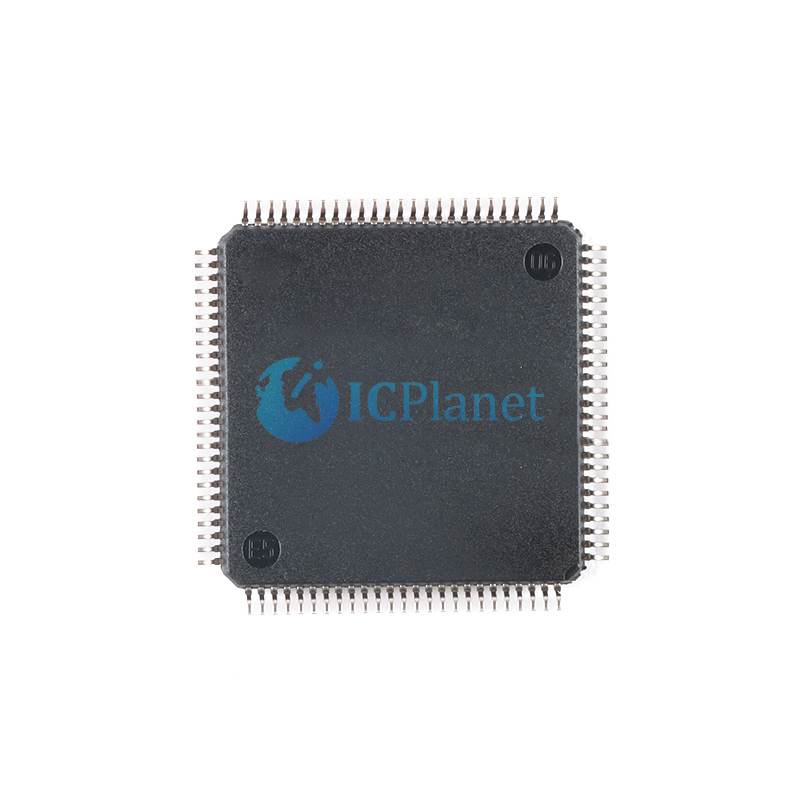

MSP430F449IPZR
Texas Instruments
ICPlanet
MSP430 CPU16 series Microcontroller IC 16-Bit 8MHz 60KB (60K x 8 + 256B) FLASH 100-LQFP (14x14)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430x4xx |

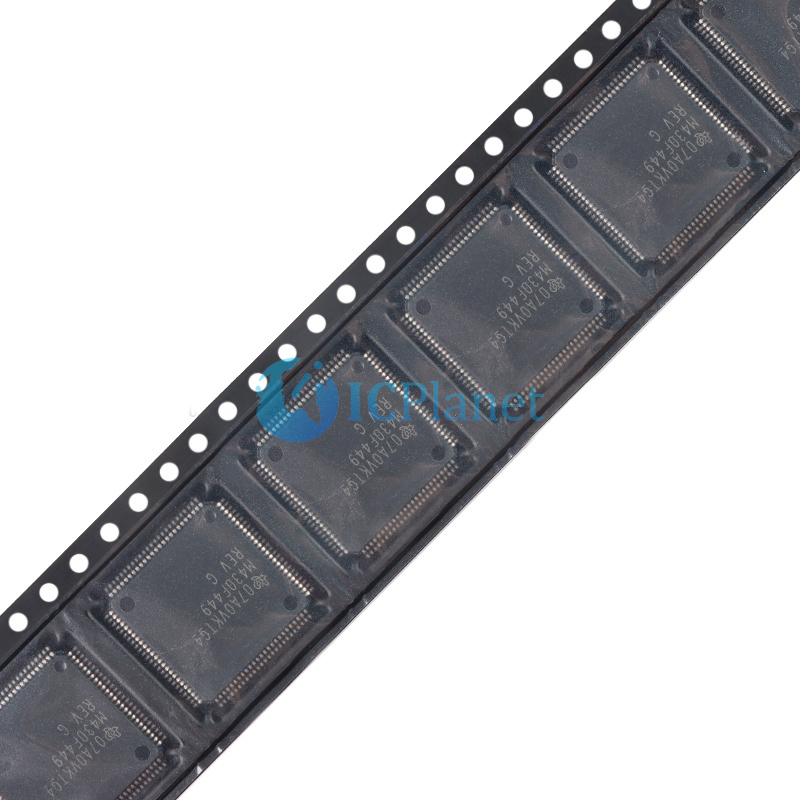

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Core Processor | MSP430 CPU16 |
Core Size | 16-Bit |
Speed | 8MHz |
Connectivity | SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
Number of I/O | 48 |
Program Memory Size | 60KB (60K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 2K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 8x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 100-LQFP |
Supplier Device Package | 100-LQFP (14x14) |
■ Ultralow-Power Consumption:
− Active Mode: 280 µA at 1 MHz, 2.2 V
− Standby Mode: 1.1 µA
− Off Mode (RAM Retention): 0.1 µA
■ Five Power Saving Modes
■ Wake-Up From Standby Mode in Less Than 6 µs
■ 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
■ 12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature
■ 16-Bit Timer_B With Three† or Seven‡ Capture/Compare-With-Shadow Registers
■ 16-Bit Timer_A With Three Capture/Compare Registers
■ On-Chip Comparator
■ Serial Communication Interface (USART), Select Asynchronous UART or Synchronous SPI by Software:
− Two USARTs (USART0, USART1)
− One USART (USART0)
■ Brownout Detector
■ Supply Voltage Supervisor/Monitor With Programmable Level Detection
■ Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
■ Integrated LCD Driver for up to 160 Segments
■ Bootstrap Loader
■ Family Members Include:
− MSP430F435, MSP430F4351: 16KB+256B Flash Memory, 512B RAM
− MSP430F436, MSP430F4361: 24KB+256B Flash Memory, 1KB RAM
− MSP430F437, MSP430F4371: 32KB+256B Flash Memory, 1KB RAM
− MSP430F447: 32KB+256B Flash Memory, 1KB RAM
− MSP430F448, MSP430F4481: 48KB+256B Flash Memory, 2KB RAM
− MSP430F449, MSP430F4491: 60KB+256B Flash Memory, 2KB RAM
■ For Complete Module Descriptions, See The MSP430x4xx Family User’s Guide, Literature Number SLAU056
