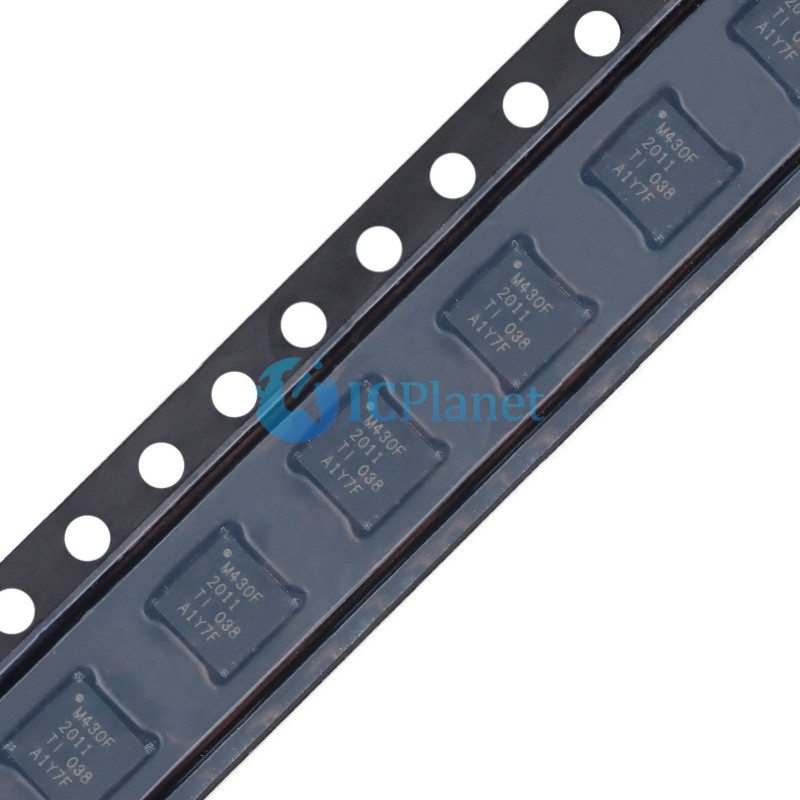

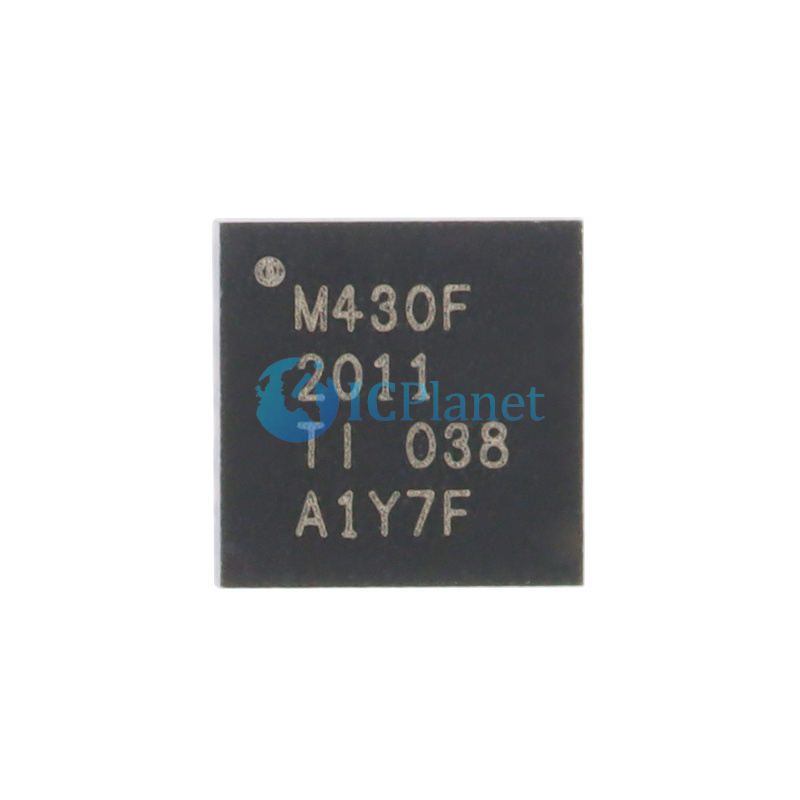

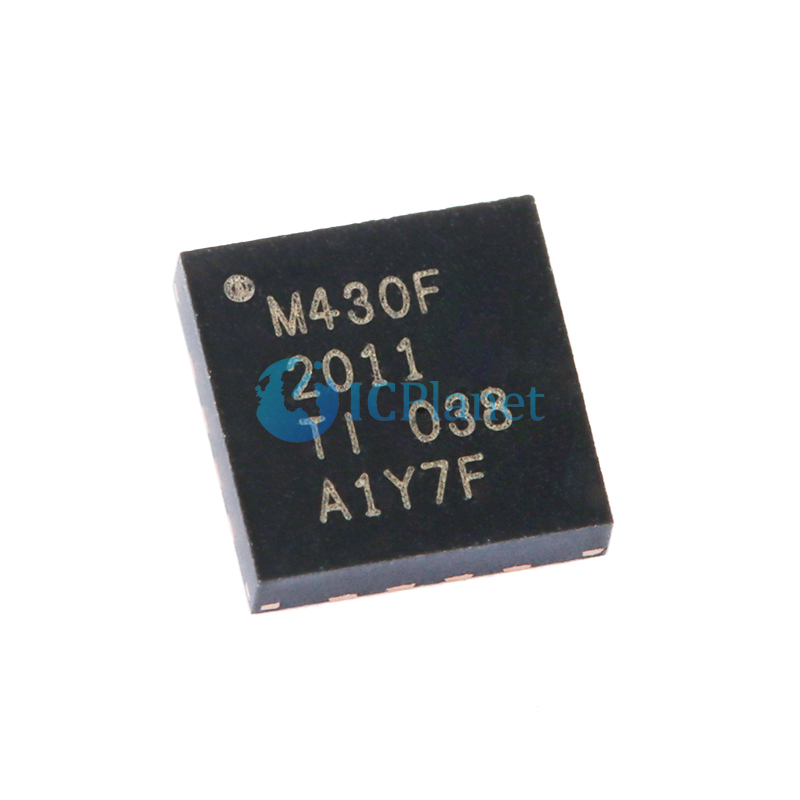

MSP430F2011IRSAR
Texas Instruments
ICPlanet
MSP430 CPU16 series Microcontroller IC 16-Bit 16MHz 2KB (2K x 8 + 256B) FLASH 16-QFN (4x4)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430F2xx |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Core Processor | MSP430 CPU16 |
Core Size | 16-Bit |
Speed | 16MHz |
Connectivity | - |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 10 |
Program Memory Size | 2KB (2K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 128 x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | Slope A/D |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |

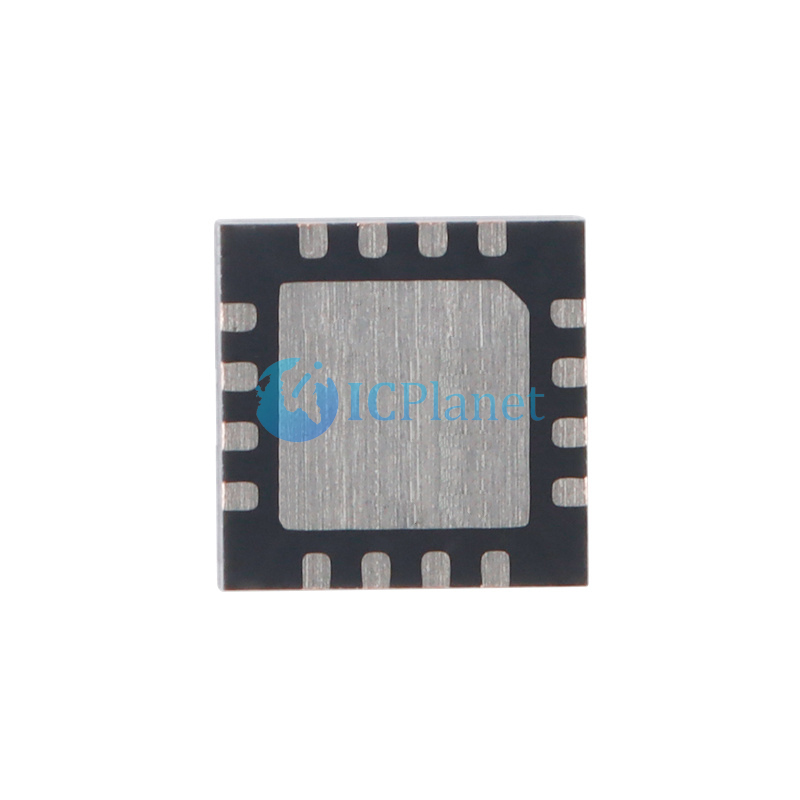

Package / Case | 16-VQFN Exposed Pad |
Supplier Device Package | 16-QFN (4x4) |
• Low Supply Voltage Range 1.8 V to 3.6 V
• Serial Onboard Programming, No External
• Ultra-Low Power Consumption Programming Voltage Needed, Programmable Code Protection by Security Fuse
– Active Mode: 220 µA at 1 MHz, 2.2 V
• On-Chip Emulation Logic With Spy-Bi-Wire
– Standby Mode: 0.5 µA Interface – Off Mode (RAM Retention): 0.1 µA
• Family
Members:
• Five Power-Saving Modes
– MSP430F2001
• Ultra-Fast Wake-Up From Standby Mode in
– 1KB + 256B Flash Memory Less Than 1 µs
– 128B RAM
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
– MSP430F2011
• Basic Clock Module Configurations:
– 2KB + 256B Flash Memory
– Internal Frequencies up to 16 MHz With
– 128B RAM Four Calibrated Frequencies to ±1%
– MSP430F2002
– Internal Very Low-Power Low-Frequency
– 1KB + 256B Flash Memory Oscillator
– 128B RAM
– 32-kHz Crystal
– MSP430F2012
– External Digital Clock Source
– 2KB + 256B Flash Memory
• 16-Bit Timer_A With Two Capture/Compare
– 128B RAM Registers
– MSP430F2003
• On-Chip Comparator for Analog Signal
– 1KB + 256B Flash Memory Compare Function or Slope A/D
– 128B RAM (MSP430F20x1)
– MSP430F2013
• 10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan
– 2KB + 256B Flash Memory (MSP430F20x2)
– 128B RAM
• 16-Bit Sigma-Delta A/D Converter With
• Available in 14-Pin Plastic Small-Outline Thin Differential PGA Inputs and Internal Reference Package (TSSOP), 14-Pin Plastic Dual Inline (MSP430F20x3) Package (PDIP), and 16-Pin QFN
• Universal Serial Interface (USI) Supporting SPI
• For Complete Module Descriptions, See the and I2C (MSP430F20x2 and MSP430F20x3) MSP430x2xx Family User's Guide
