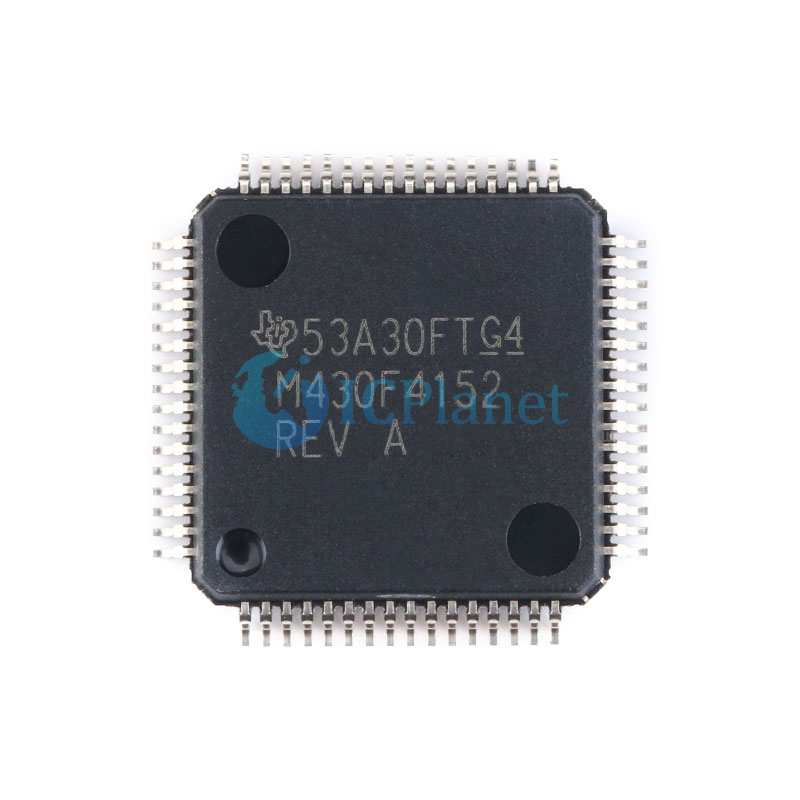

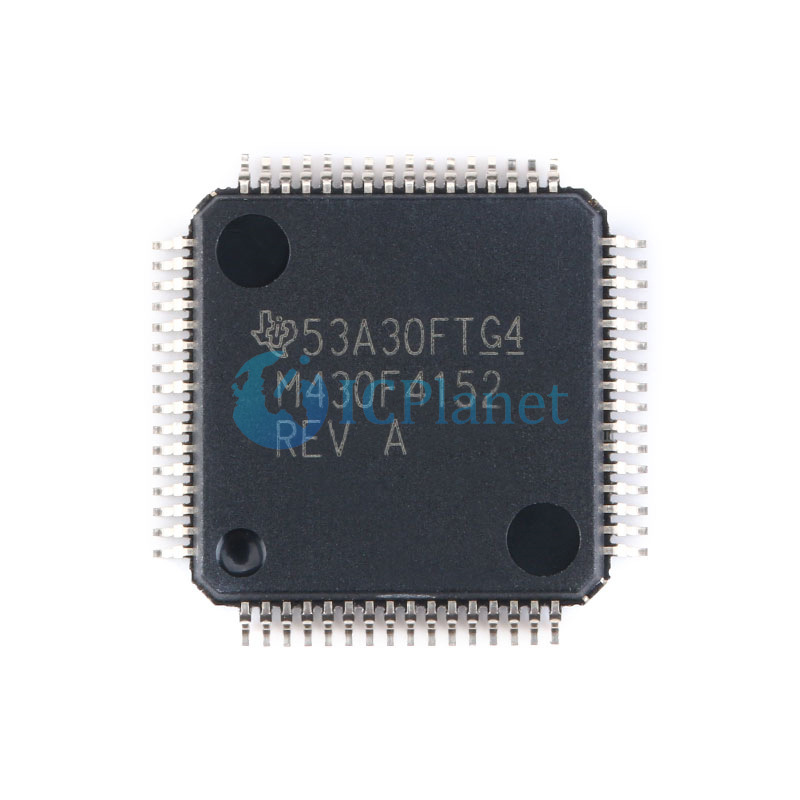

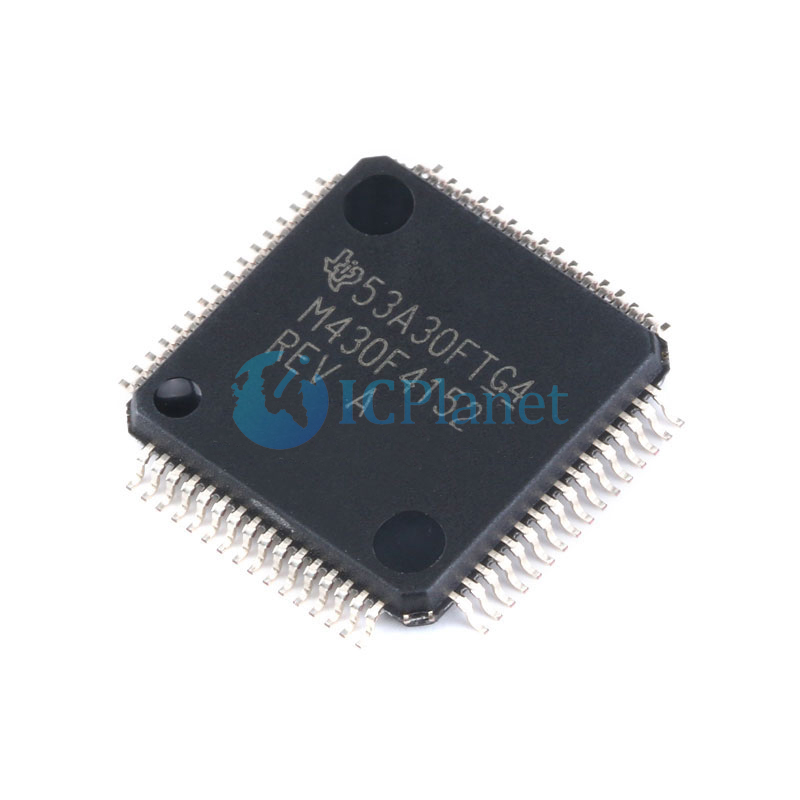

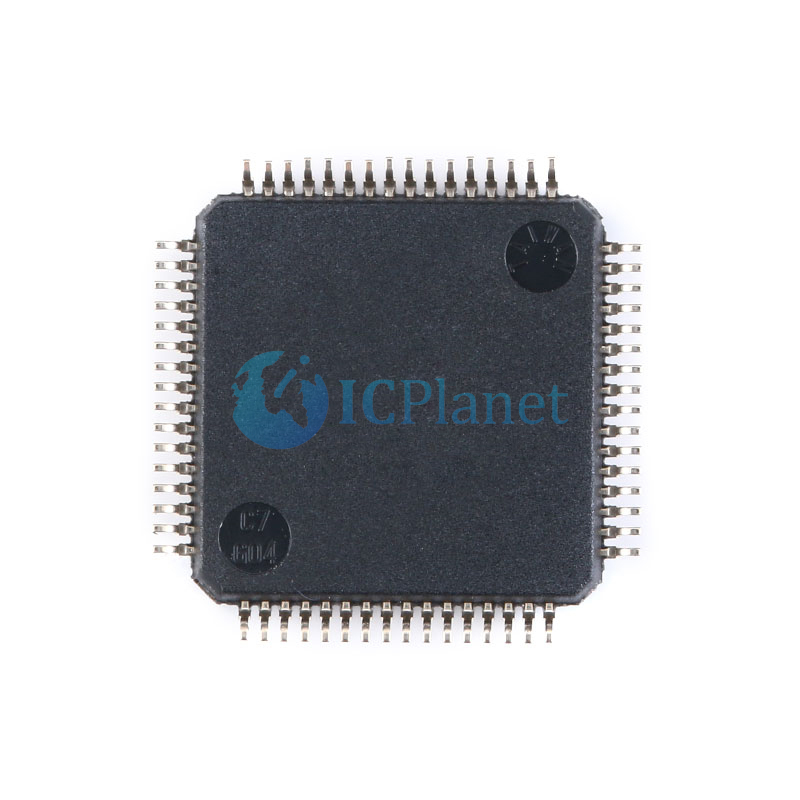

MSP430F4152IPMR
Texas Instruments
ICPlanet
MSP430 series Microcontroller IC 16-Bit 8MHz 16KB (16K x 8 + 256B) FLASH 64-LQFP (10x10)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430x4xx |

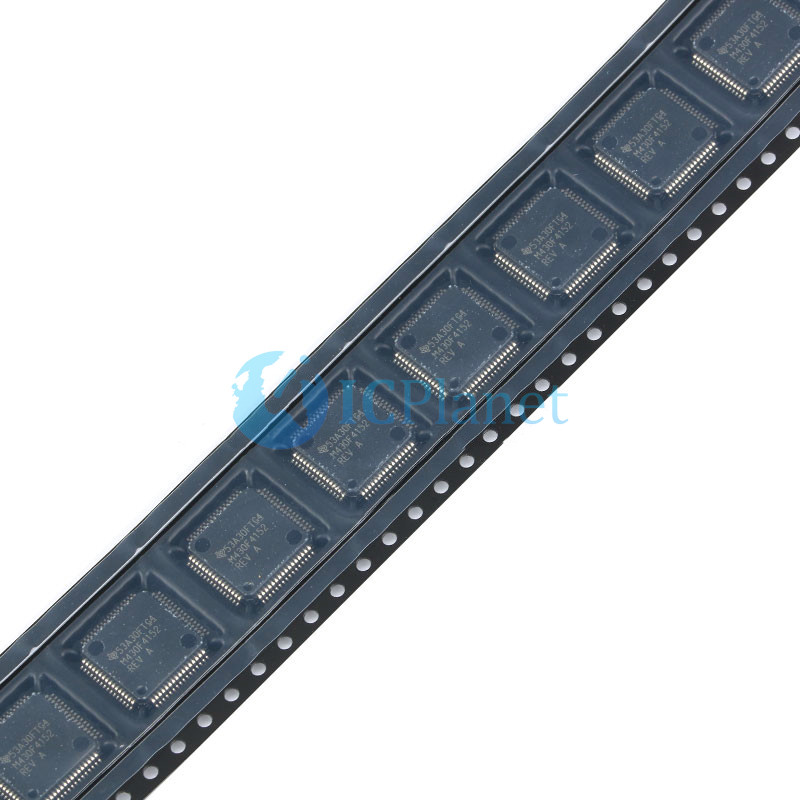

Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Part Status | Active |
Core Processor | MSP430 |
Core Size | 16-Bit |
Speed | 8MHz |
Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
Number of I/O | 56 |
Program Memory Size | 16KB (16K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 512 x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 8x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 64-LQFP |
Supplier Device Package | 64-LQFP (10x10) |
