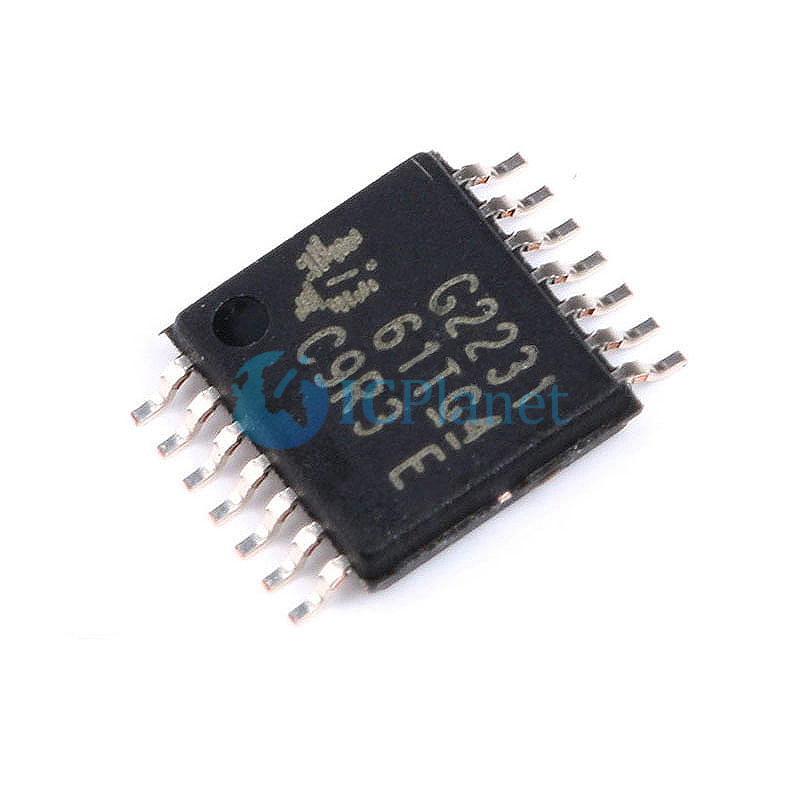

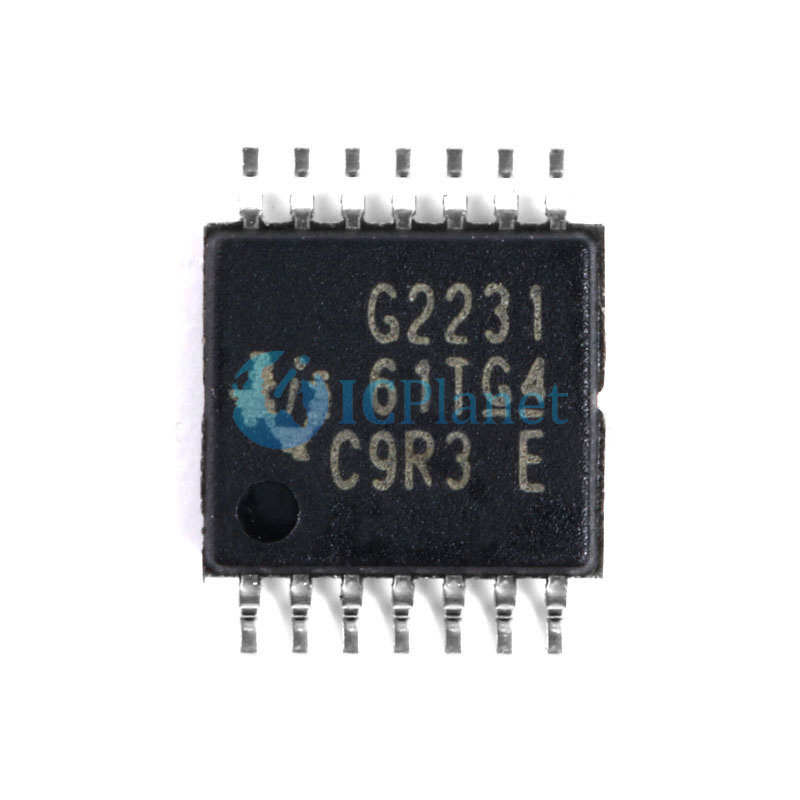

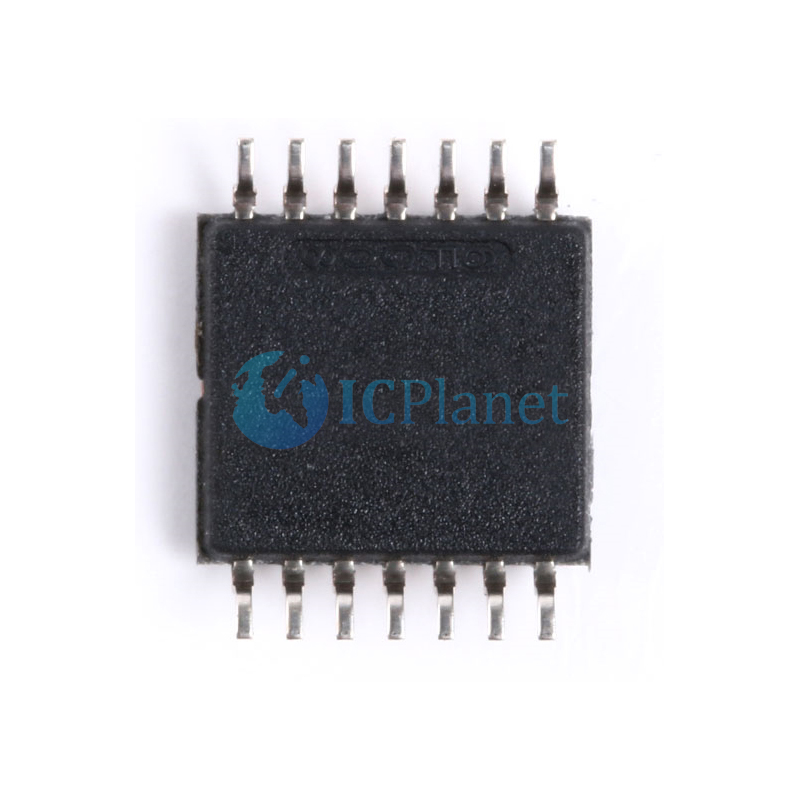

| IC MCU 16BIT 2KB FLASH TSSOP144 |
MSP430G2231IPW14R
Texas Instruments
ICPlanet
MSP430 series Microcontroller IC 16-Bit 16MHz 2KB (2K x 8) FLASH 14-TSSOP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430G2xx |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Part Status | Active |
Core Processor | MSP430 |
Core Size | 16-Bit |
Speed | 16MHz |
Connectivity | I²C, SPI |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 10 |
Program Memory Size | 2KB (2K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 128 x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 8x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 14-TSSOP |
DESCRIPTION
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430G2x21/G2x31 series is an ultra-low-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. The MSP430G2x31 family members have a 10-bit A/D converter and built-in communication capability using synchronous protocols (SPI or I2C). For configuration details
Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system
FEATURES
• Low Supply-Voltage Range: 1.8 V to 3.6 V
• 16-Bit Timer_A With Two Capture/Compare
• Ultra-Low Power Consumption Registers
– Active Mode: 220 µA at 1 MHz, 2.2 V
• Universal Serial Interface (USI) Supporting SPI and I2C
– Standby Mode: 0.5 µA • Brownout Detector
–Off Mode (RAM Retention): 0.1 µA
• 10-Bit 200-ksps A/D Converter With Internal
• Five Power-Saving Modes Reference, Sample-and-Hold, and Autoscan
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
• Serial Onboard Programming,
• 16-Bit RISC Architecture, 62.5-ns Instruction No External Programming Voltage Needed, Cycle Time Programmable Code Protection by Security
• Basic Clock Module Configurations Fuse
– Internal Frequencies up to 16 MHz With
• On-Chip Emulation Logic With Spy-Bi-Wire One Calibrated Frequency Interface
– Internal Very Low Power Low-Frequency
• For Family Members Details, See Table 1 (LF) Oscillator
• Available in 14-Pin Plastic Small-Outline Thin
– 32-kHz Crystal Package (TSSOP) (PW), 14-Pin Plastic Dual
– External Digital Clock Source Inline Package (PDIP) (N), and 16-Pin QFN Package (RSA)
• For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide
