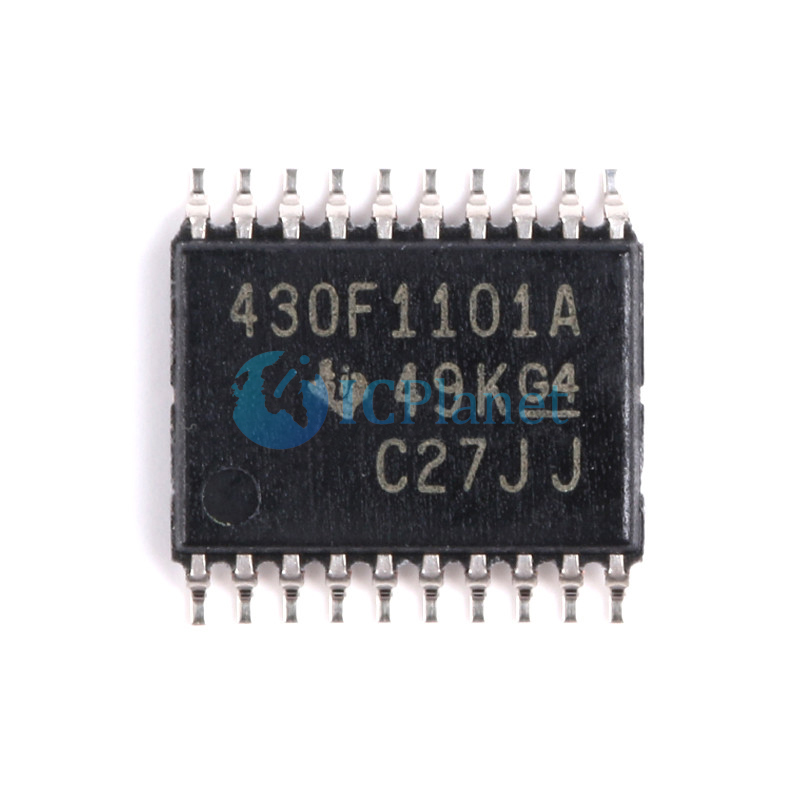

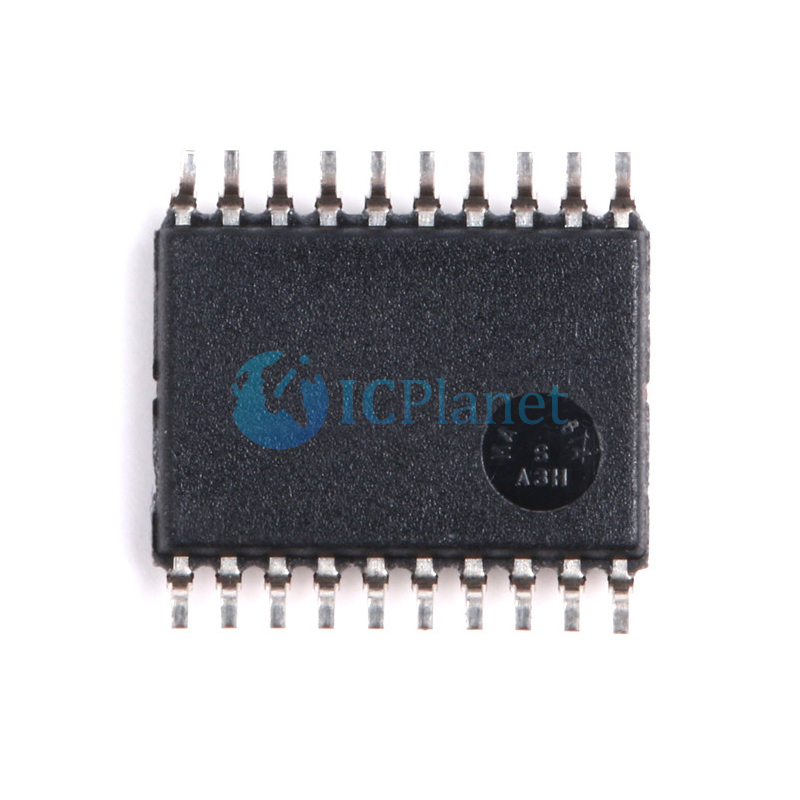

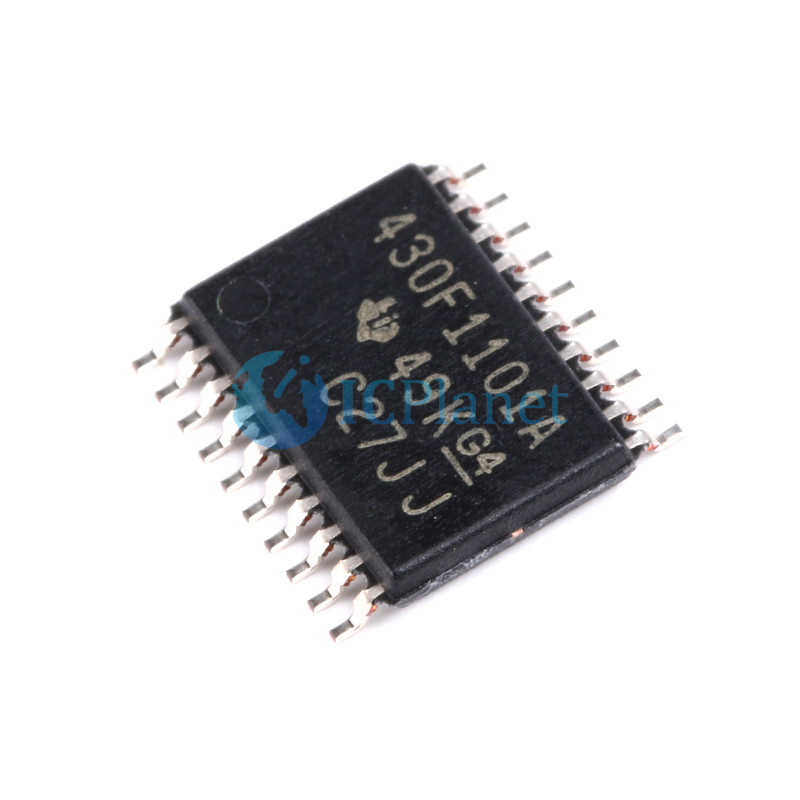

MSP430F1101AIPWR
Texas Instruments
ICPlanet
MSP430 series Microcontroller IC 16-Bit 8MHz 1KB (1K x 8 + 256B) FLASH 20-TSSOP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430x1xx |

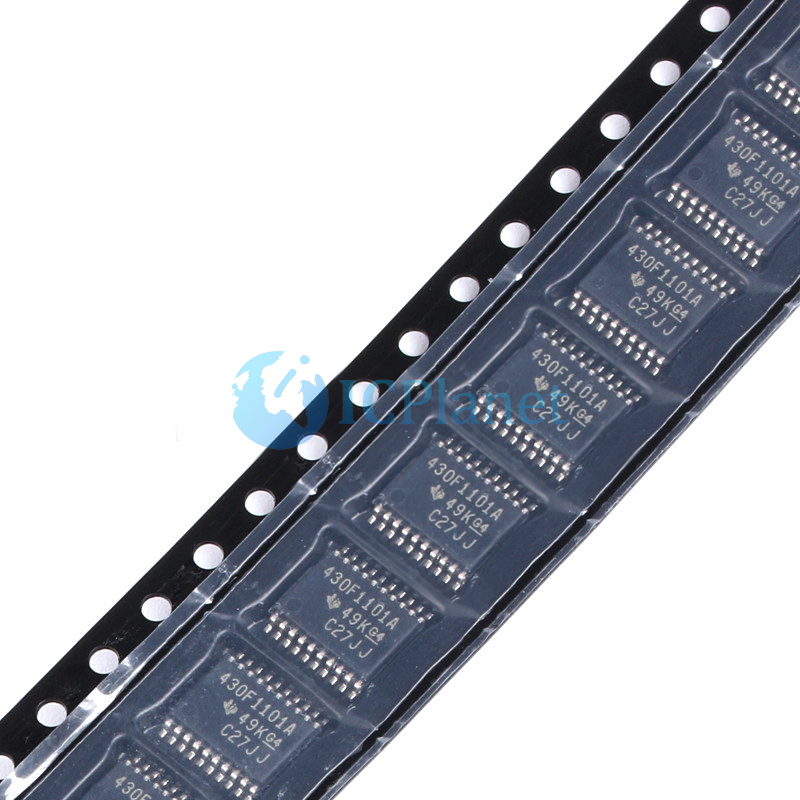

Package | Tape & Reel (TR) Cut Tape (CT) Digi-ReelĀ® |
Part Status | Active |
Core Processor | MSP430 |
Core Size | 16-Bit |
Speed | 8MHz |
Connectivity | - |
Peripherals | POR, WDT |
Number of I/O | 14 |
Program Memory Size | 1KB (1K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 128 x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | Slope A/D |
Oscillator Type | Internal |
Operating Temperature | -40Ā°C ~ 85Ā°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 20-TSSOP |
Features
ā¦ Low Supply Voltage Range 1.8 V to 3.6 V
ā¦ Ultralow Power Consumption
ā Active Mode: 160 Ī¼A at 1 MHz, 2.2 V
ā Standby Mode: 0.7 Ī¼A
ā Off Mode (RAM Retention): 0.1 Ī¼A
ā¦ Wake-Up From Standby Mode in Less Than 6 Ī¼s
ā¦ 16-Bit RISC Architecture, 125 ns Instruction Cycle Time
ā¦ Basic Clock Module Configurations:
ā Various Internal Resistors
ā Single External Resistor
ā 32-kHz Crystal
ā High-Frequency Crystal
ā Resonatorā External Clock Source
ā¦16-Bit Timer_A With ThreeCapture/Compare Registers
ā¦ On-Chip Comparator for Analog SignalCompare Function or SlopeAnalog-to-Digital (A/D) Conversion
ā¦ Serial Onboard Programming,No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
ā¦ Family Members Include
MSP430C1101: 1KB ROM, 128B RAM
MSP430C1111: 2KB ROM, 128B RAM
MSP430C1121: 4KB ROM, 256B RAM
MSP430F1101A: 1KB + 128B Flash Memory128B RAM
MSP430F1111A: 2KB + 256B Flash Memory128B RAM
MSP430F1121A: 4KB + 256B Flash Memory256B RAM
ā¦ Available in a 20-Pin Plastic Small-OutlineWide Body (SOWB) Package, 20-Pin PlasticSmall-Outline Thin Package, 20-Pin TVSOP(F11x1A only), and 24-Pin QFN
ā¦ For Complete Module Descriptions, Referto the MSP430x1xx Family Userās Guide,Literature Number SLAU049
Description
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuringdifferent sets of peripherals targeted for various applications. The architecture, combined with five low-powermodes is optimized to achieve extended battery life in portable measurement applications. The device featuresa powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum codeefficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in lessthan 6 Ī¼s.
The MSP430x11x1(A) series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer,versatile analog comparator and fourteen I/O pins.
Typical applications include sensor systems that capture analog signals, convert them to digital values, and thenprocess the data for display or for transmission to a host system. Stand alone radio frequency (RF) sensor frontend is another area of application. The I/O port inputs provide single slope A/D conversion capability on resistivesensors.
