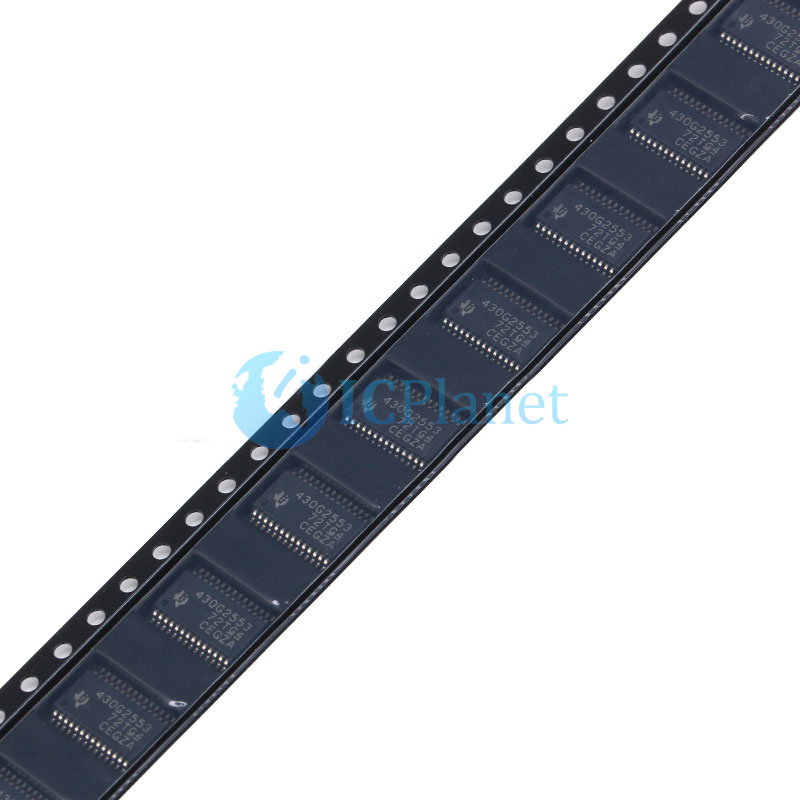

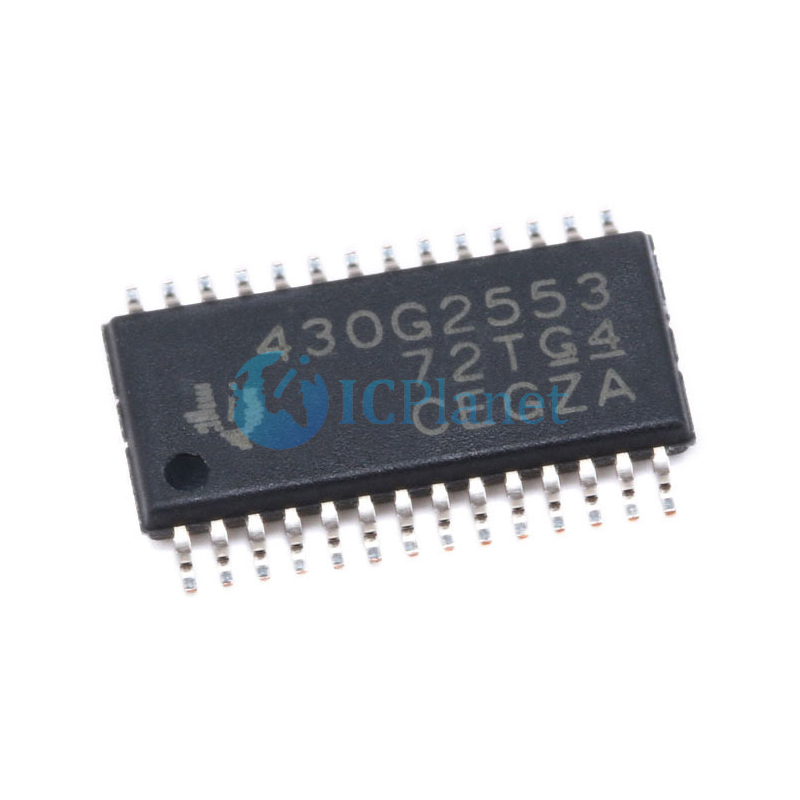

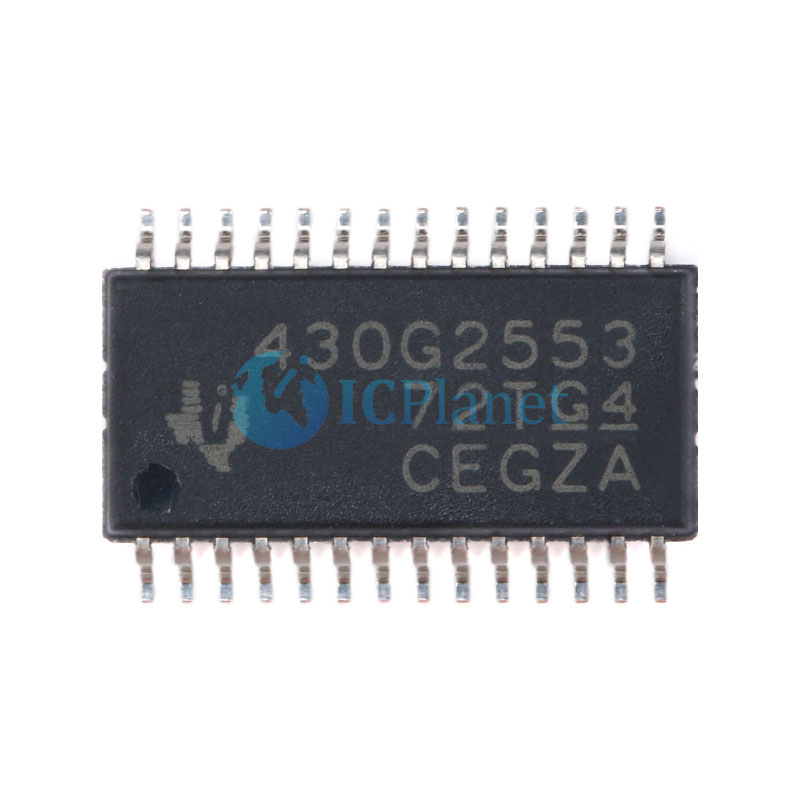

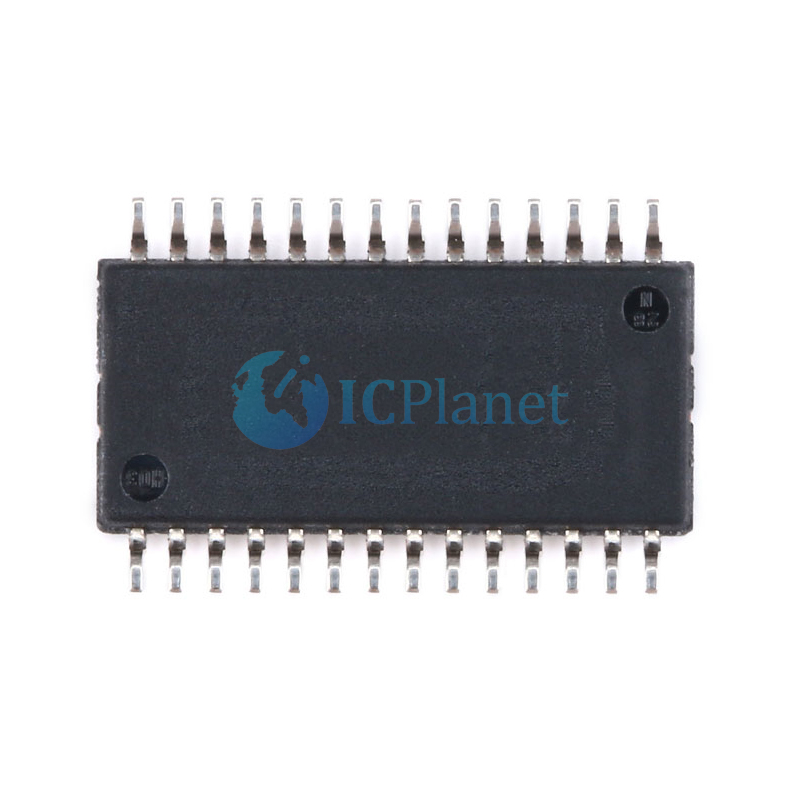

| IC MCU 16BIT 16KB FLASH 28TSSOP |
MSP430G2553IPW28
Texas Instruments
ICPlanet
MSP430 series Microcontroller IC 16-Bit 16MHz 16KB (16K x 8) FLASH 28-TSSOP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | MSP430G2xx |
Package | Tube |
Part Status | Active |
Core Processor | MSP430 |
Core Size | 16-Bit |
Speed | 16MHz |
Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
Number of I/O | 24 |
Program Memory Size | 16KB (16K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 512 x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 8x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 28-TSSOP |
DESCRIPTION
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430G2x13 and MSP430G2x53 series are ultra-low-power mixed signal microcontrollers with built-in 16- bit timers, up to 24 I/O capacitive-touch enabled pins, a versatile analog comparator, and built-in communication capability using the universal serial communication interface. In addition the MSP430G2x53 family members have a 10-bit analog-to-digital (A/D) converter. Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.
FEATURES
• Low Supply-Voltage Range: 1.8 V to 3.6 V
• Universal Serial Communication Interface (USCI)
• Ultra-Low Power Consumption
– Active Mode: 230 µA at 1 MHz, 2.2 V
– Enhanced UART Supporting Auto Baudrate Detection (LIN)
– Standby Mode: 0.5 µA
– IrDA Encoder and Decoder
– Off Mode (RAM Retention): 0.1 µA – Synchronous SPI
• Five Power-Saving Modes – I²C
• Ultra-Fast Wake-Up From Standby Mode in C™ Less Than 1 µs
• On-Chip Comparator for Analog Signal Compare Function or Slope Analog-to-Digital
• 16-Bit RISC Architecture, 62.5-ns Instruction (A/D) Conversion Cycle Time
• 10-Bit 200-ksps Analog-to-Digital (A/D)
• Basic Clock Module Configurations Converter With Internal Reference, Sample-
– Internal Frequencies up to 16 MHz With and-Hold, and Autoscan Four Calibrated Frequency
• Brownout Detector
– Internal Very-Low-Power Low-Frequency
• Serial Onboard Programming, (LF) Oscillator No External Programming Voltage Needed,
– 32-kHz Crystal Programmable Code Protection by Security
– External Digital Clock Source Fuse
• Two 16-Bit Timer_A With Three
• On-Chip Emulation Logic With Spy-Bi-Wire Capture/Compare Registers Interface
• Up to 24 Capacitive-Touch Enabled I/O Pins
• Family Members are Summarized in Table 1
• Package Options – TSSOP: 20 Pin, 28 Pin – PDIP: 20 Pin – QFN: 32 Pin
• For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide
