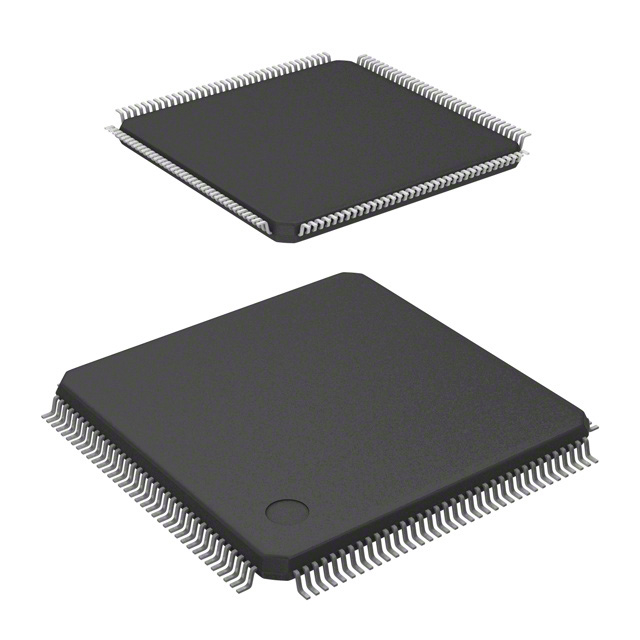

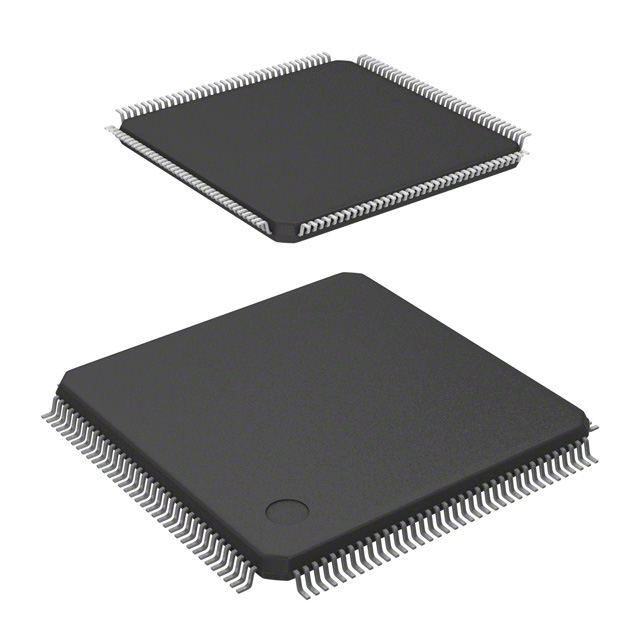

STM32H743ZIT6
STMicroelectronics
STM32H743ZIT6
STMicroelectronics
Tray
Yes
64561
| Quantity: | |
|---|---|
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32H7 |
Package | Tray |
Product Status | Active |
Core Processor | ARM® Cortex®-M7 |
Core Size | 32-Bit Single-Core |
Speed | 480MHz |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
Number of I/O | 114 |
Program Memory Size | 2MB (2M x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 1M x 8 |
Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
Data Converters | A/D 36x16b; D/A 2x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 144-LQFP |
Supplier Device Package | 144-LQFP (20x20) |
Base Product Number | STM32H743 |
