MAX861IUA+-ND
Analog Devices Inc./Maxim Integrated
MAX861IUA+-ND
Analog Devices Inc./Maxim Integrated
Tube
Yes
63499
| Quantity: | |
|---|---|
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
Mfr | Analog Devices Inc./Maxim Integrated |
Series | - |
Package | Tube |
Product Status | Active |
Function | Ratiometric |
Output Configuration | Positive or Negative |
Topology | Charge Pump |
Output Type | Fixed |
Number of Outputs | 1 |
Voltage - Input (Min) | 1.5V, 2.5V |
Voltage - Input (Max) | 5.5V |
Voltage - Output (Min/Fixed) | -Vin, 2Vin |
Voltage - Output (Max) | - |
Current - Output | 50mA |
Frequency - Switching | 13kHz, 100kHz, 250kHz |
Synchronous Rectifier | No |
Operating Temperature | -25°C ~ 85°C (TA) |
Mounting Type | Surface Mount |

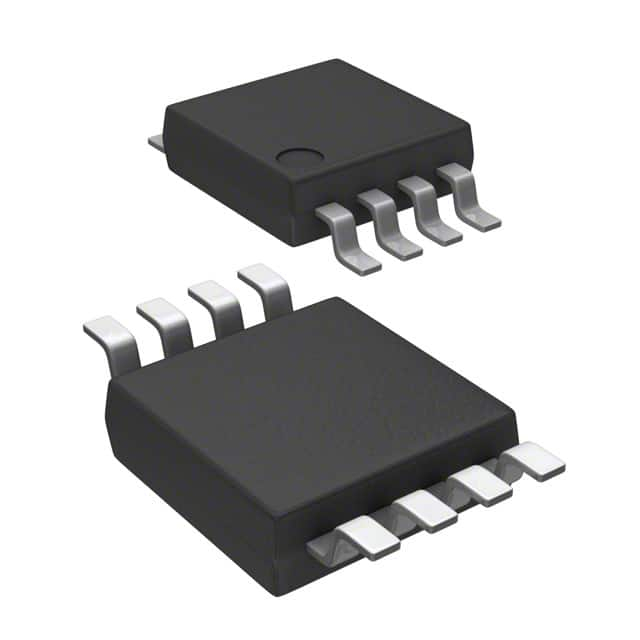

Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Supplier Device Package | 8-uMAX/uSOP |
Base Product Number | MAX861 |
