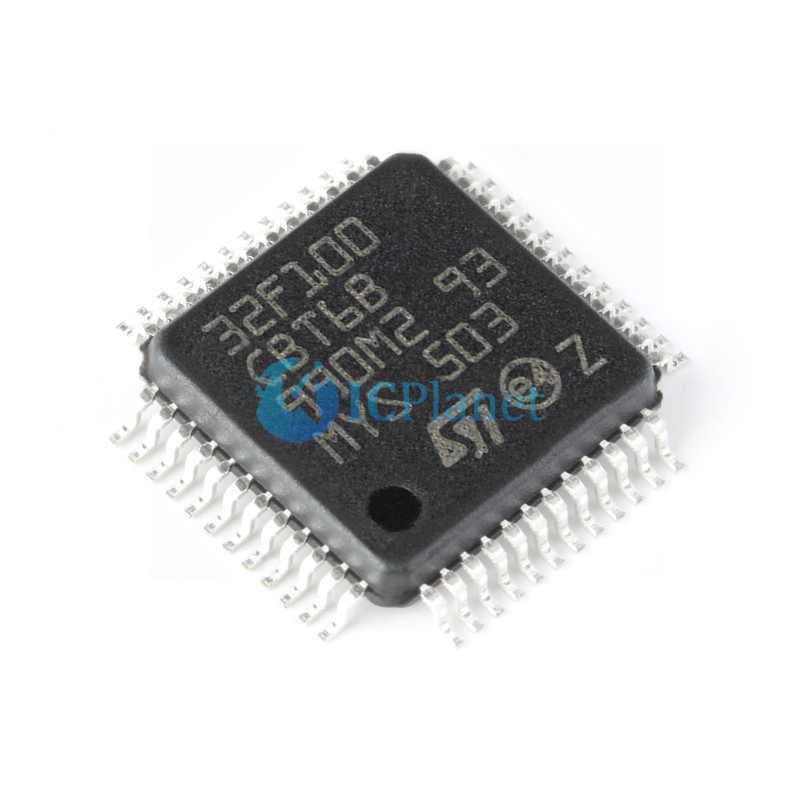

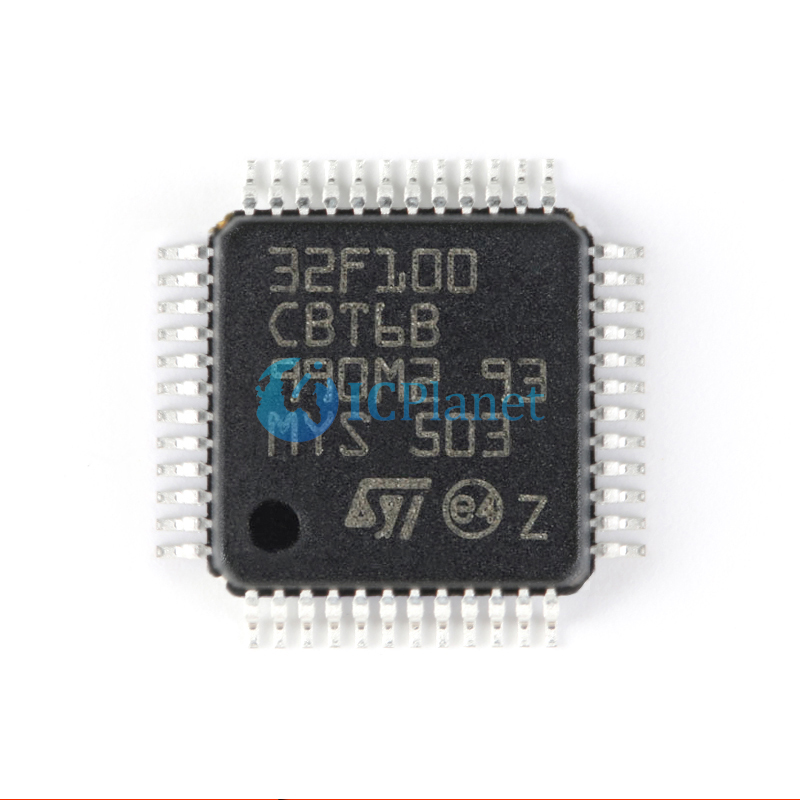

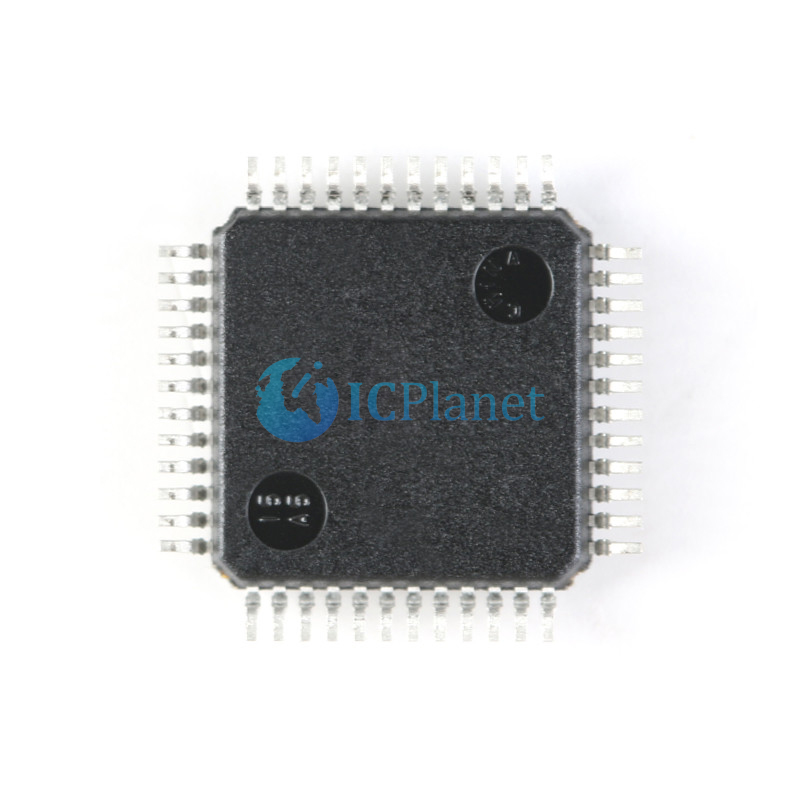

STM32F100CBT6B
STMicroelectronics
ICPlanet
ARM® Cortex®-M3 series Microcontroller IC 32-Bit 24MHz 128KB (128K x 8) FLASH
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32F1 |
Package | Tray |
Part Status | Active |
Core Processor | ARM® Cortex®-M3 |
Core Size | 32-Bit |
Speed | 24MHz |
Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
Number of I/O | 37 |
Program Memory Size | 128KB (128K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 8K x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
Data Converters | A/D 10x12b; D/A 2x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 48-LQFP |
Features
• Core: ARM® 32-bit Cortex®-M3 CPU
– 24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
– Single-cycle multiplication and hardware division
• Memories
– 16 to 128 Kbytes of Flash memory
– 4 to 8 Kbytes of SRAM
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage detector (PVD)
– 4-to-24 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• Debug mode
– Serial wire debug (SWD) and JTAG interfaces
• DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs, I 2Cs, USARTs and DACs
• 1 × 12-bit, 1.2 µs A/D converter (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
• 2 × 12-bit D/A converters
• Up to 80 fast I/O ports
– 37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
• Up to 12 timers
– Up to three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter
– 16-bit, 6-channel advanced-control timer: up to 6 channels for PWM output, dead time generation and emergency stop
– One 16-bit timer, with 2 IC/OC, 1 OCN/PWM, dead-time generation and emergency stop
– Two 16-bit timers, each with IC/OC/OCN/PWM, dead-time generation and emergency stop
– 2 watchdog timers (Independent and Window)
– SysTick timer: 24-bit downcounter
– Two 16-bit basic timers to drive the DAC
• Up to 8 communications interfaces
– Up to two I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
– Up to 2 SPIs (12 Mbit/s)
– Consumer electronics control (CEC) interface
• CRC calculation unit, 96-bit unique ID
• ECOPACK® packages
