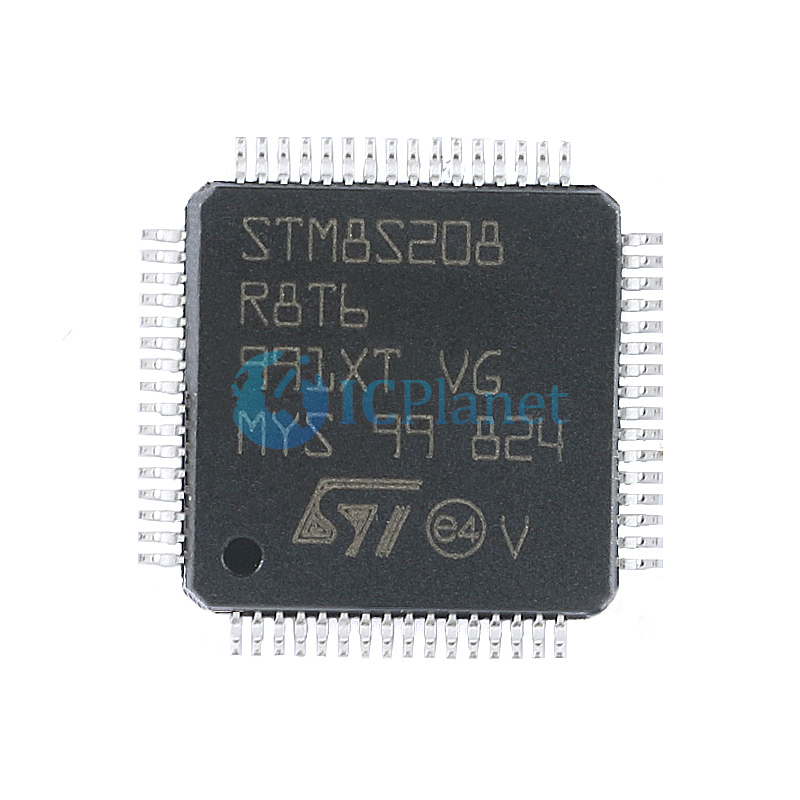

STM8S208R8T6
STMicroelectronics
ICPlanet
STM8 series Microcontroller IC 8-Bit 24MHz 64KB (64K x 8) FLASH 64-LQFP (10x10)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM8S |
Package | Tray |
Part Status | Active |
Core Processor | STM8 |
Core Size | 8-Bit |
Speed | 24MHz |
Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 52 |
Program Memory Size | 64KB (64K x 8) |
Program Memory Type | FLASH |
EEPROM Size | 2K x 8 |
RAM Size | 6K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
Data Converters | A/D 16x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 64-LQFP |
Supplier Device Package | 64-LQFP (10x10) |
Description
The STM8S20xxx performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash program memory. They are referred to as high-density devices in the STM8S microcontroller family reference manual.
All STM8S20xxx devices provide the following benefits: reduced system cost, performance robustness, short development cycles, and product longevity.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.
Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.
Short development cycles are guaranteed due to application scalability across a common family product architecture with compatible pinout, memory map and modular peripherals. Full documentation is offered with a wide choice of development tools.
Product longevity is ensured in the STM8S family thanks to their advanced core which is made in a state-of-the art technology for applications with 2.95 V to 5.5 V operating supply.
Features
✦ Core
– Max fCPU: up to 24 MHz, 0 wait states @ fCPU ≤16 MHz – Advanced STM8 core with Harvard architecture and 3-stage pipeline
– Extended instruction set
– Max 20 MIPS @ 24 MHz
✦ Memories
– Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles
– Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles
– RAM: up to 6 Kbytes
✦ Clock, reset and supply management
– 2.95 to 5.5 V operating voltage
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low power 128 kHz RC
– Clock security system with clock monitor
– Wait, active-halt, & halt low power modes
– Peripheral clocks switched off individually
– Permanently active, low consumption power-on and power-down reset
✦ Interrupt management
– Nested interrupt controller with 32 interrupts
– Up to 37 external interrupts on 6 vectors
✦ Timers
– 2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM)
– Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, deadtime insertion and flexible synchronization
– 8-bit basic timer with 8-bit prescaler
– Auto wakeup timer
– Window watchdog, independent watchdog
✦ Communications interfaces
– High speed 1 Mbit/s active beCAN 2.0B
– UART with clock output for synchronous operation - LIN master mode
– UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization
– SPI interface up to 10 Mbit/s
– I2C interface up to 400 Kbit/s
✦ 10-bit ADC with up to 16 channels
✦ I/Os
– Up to 68 I/Os on an 80-pin package including 18 high sink outputs
– Highly robust I/O design, immune against current injection
– Development support
– Single wire interface module (SWIM) and debug module (DM)
✦ 96-bit unique ID key for each device
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM8S |
Package | Tray |
Part Status | Active |
Core Processor | STM8 |
Core Size | 8-Bit |
Speed | 24MHz |
Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 52 |
Program Memory Size | 64KB (64K x 8) |
Program Memory Type | FLASH |
EEPROM Size | 2K x 8 |
RAM Size | 6K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
Data Converters | A/D 16x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 64-LQFP |
Supplier Device Package | 64-LQFP (10x10) |
Description
The STM8S20xxx performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash program memory. They are referred to as high-density devices in the STM8S microcontroller family reference manual.
All STM8S20xxx devices provide the following benefits: reduced system cost, performance robustness, short development cycles, and product longevity.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.
Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.
Short development cycles are guaranteed due to application scalability across a common family product architecture with compatible pinout, memory map and modular peripherals. Full documentation is offered with a wide choice of development tools.
Product longevity is ensured in the STM8S family thanks to their advanced core which is made in a state-of-the art technology for applications with 2.95 V to 5.5 V operating supply.
Features
✦ Core
– Max fCPU: up to 24 MHz, 0 wait states @ fCPU ≤16 MHz – Advanced STM8 core with Harvard architecture and 3-stage pipeline
– Extended instruction set
– Max 20 MIPS @ 24 MHz
✦ Memories
– Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles
– Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles
– RAM: up to 6 Kbytes
✦ Clock, reset and supply management
– 2.95 to 5.5 V operating voltage
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low power 128 kHz RC
– Clock security system with clock monitor
– Wait, active-halt, & halt low power modes
– Peripheral clocks switched off individually
– Permanently active, low consumption power-on and power-down reset
✦ Interrupt management
– Nested interrupt controller with 32 interrupts
– Up to 37 external interrupts on 6 vectors
✦ Timers
– 2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM)
– Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, deadtime insertion and flexible synchronization
– 8-bit basic timer with 8-bit prescaler
– Auto wakeup timer
– Window watchdog, independent watchdog
✦ Communications interfaces
– High speed 1 Mbit/s active beCAN 2.0B
– UART with clock output for synchronous operation - LIN master mode
– UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization
– SPI interface up to 10 Mbit/s
– I2C interface up to 400 Kbit/s
✦ 10-bit ADC with up to 16 channels
✦ I/Os
– Up to 68 I/Os on an 80-pin package including 18 high sink outputs
– Highly robust I/O design, immune against current injection
– Development support
– Single wire interface module (SWIM) and debug module (DM)
✦ 96-bit unique ID key for each device
