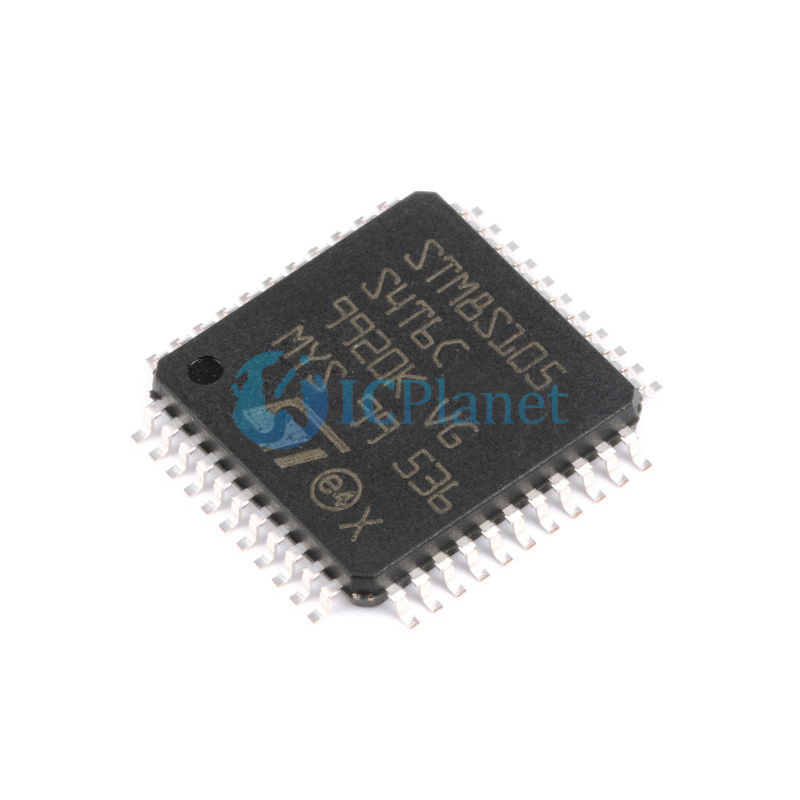

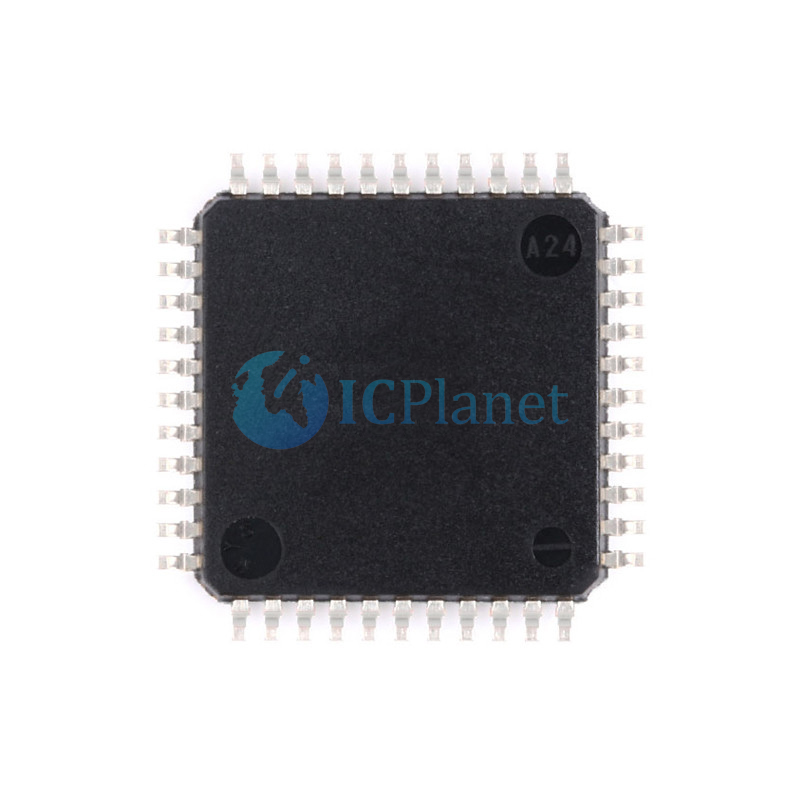

STM8S105S4T6C
STMicroelectronics
ICPlanet
STM8 series Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH
Encapsulation: | |
---|---|
SKU: | |
Availability: | |
Quantity: | |
PDF Export | |
TYPE | DESCRIPTION |
---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM8S |
Package | Tray |
Part Status | Active |
Core Processor | STM8 |
Core Size | 8-Bit |
Speed | 16MHz |
Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 34 |
Program Memory Size | 16KB (16K x 8) |
Program Memory Type | FLASH |
EEPROM Size | 1K x 8 |
RAM Size | 2K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
Data Converters | A/D 9x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 44-LQFP |
Features
Core
✦ 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
✦ Extended instruction set
Memories
✦ Program memory: up to 32 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
✦ Data memory: up to 1 Kbyte true data EEPROM; endurance 300 kcycle
✦ RAM: up to 2 Kbyte
Clock, reset and supply management
✦ 2.95 to 5.5 V operating voltage
✦ Flexible clock control, 4 master clock sources
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
✦ Clock security system with clock monitor
✦ Power management:
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
✦ Permanently active, low-consumption poweron and power-down reset
Interrupt management
✦ Nested interrupt controller with 32 interrupts
✦ Up to 37 external interrupts on 6 vectors
Timers
✦ Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
✦ 2x16-bit general purpose timer, with 2+3 CAPCOM channels (IC, OC or PWM)
✦ 8-bit basic timer with 8-bit prescaler
✦ Auto wake-up timer
✦ Window watchdog and independent watchdog timers
Communication interfaces
✦ UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
✦ SPI interface up to 8 Mbit/s
✦ I2C interface up to 400 kbit/s
Analog to digital converter (ADC)
✦ 10-bit, ±1 LSB ADC with up to 10 multiplexed channels, scan mode and analog watchdog I/Os
✦ Up to 38 I/Os on a 48-pin package including 16 high sink outputs
✦ Highly robust I/O design, immune against current injection
Unique ID
✦ 96-bit unique key for each device
