IRLML2402TRPBF
Infineon Technologies
IRLML2402TRPBF
Infineon Technologies
Tape & Reel (TR) Cut Tape (CT) Digi-Reel
Yes
100000
| Quantity: | |
|---|---|
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | Infineon Technologies |
Series | HEXFET® |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Product Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 20 V |
Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
Rds On (Max) @ Id, Vgs | 250mOhm @ 930mA, 4.5V |
Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
Gate Charge (Qg) (Max) @ Vgs | 3.9 nC @ 4.5 V |
Vgs (Max) | ±12V |
Input Capacitance (Ciss) (Max) @ Vds | 110 pF @ 15 V |
FET Feature | - |
Power Dissipation (Max) | 540mW (Ta) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |

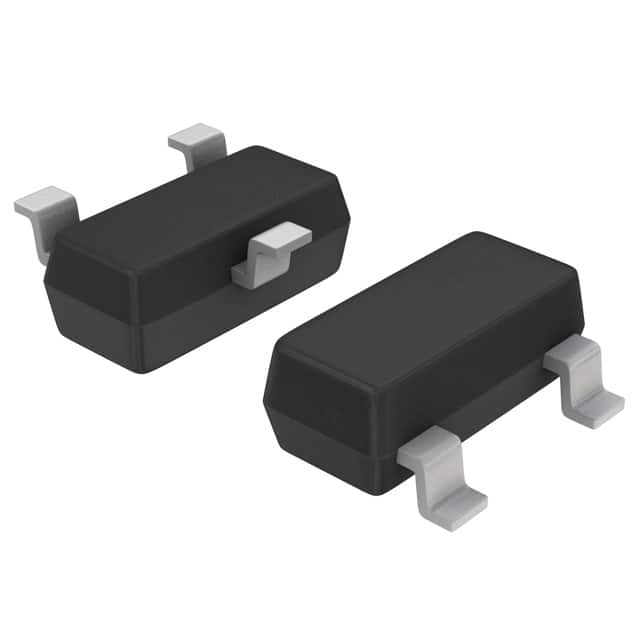

Supplier Device Package | Micro3™/SOT-23 |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Base Product Number | IRLML2402 |
