IR2304STRPBF
Infineon Technologies
IR2304STRPBF
Infineon Technologies
Tape & Reel (TR) Cut Tape (CT) Digi-Reel
Yes
1000000
| Quantity: | |
|---|---|
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers |
Mfr | Infineon Technologies |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Product Status | Active |
Driven Configuration | Half-Bridge |
Channel Type | Independent |
Number of Drivers | 2 |
Gate Type | IGBT, N-Channel MOSFET |
Voltage - Supply | 10V ~ 20V |
Logic Voltage - VIL, VIH | 0.8V, 2.3V |
Current - Peak Output (Source, Sink) | 60mA, 130mA |
Input Type | Non-Inverting |
High Side Voltage - Max (Bootstrap) | 600 V |
Rise / Fall Time (Typ) | 200ns, 100ns |
Operating Temperature | -40°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |

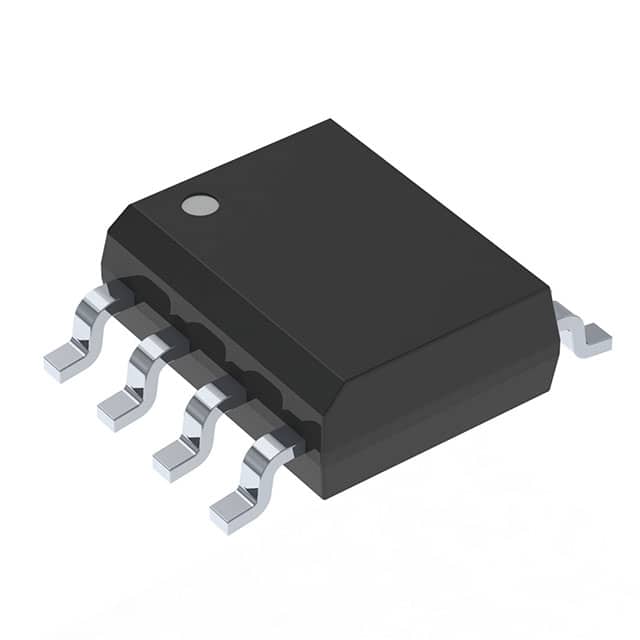

Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | IR2304 |
