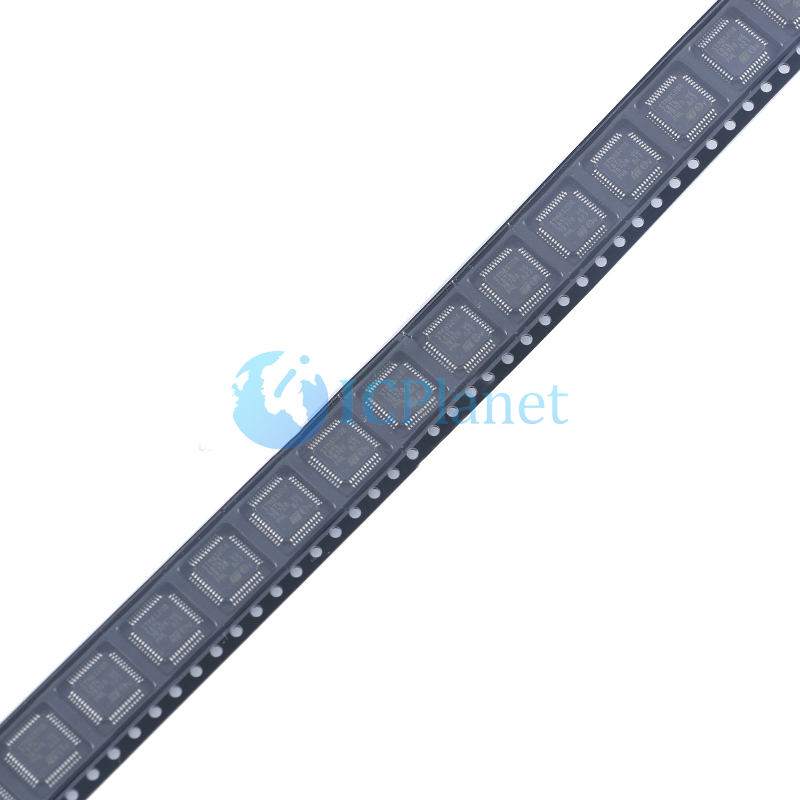

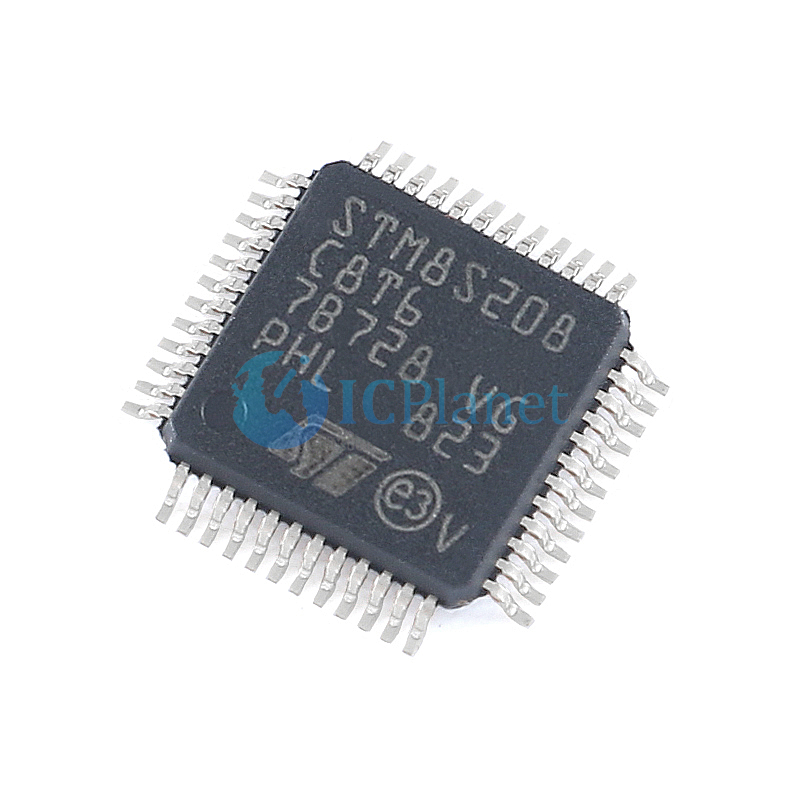

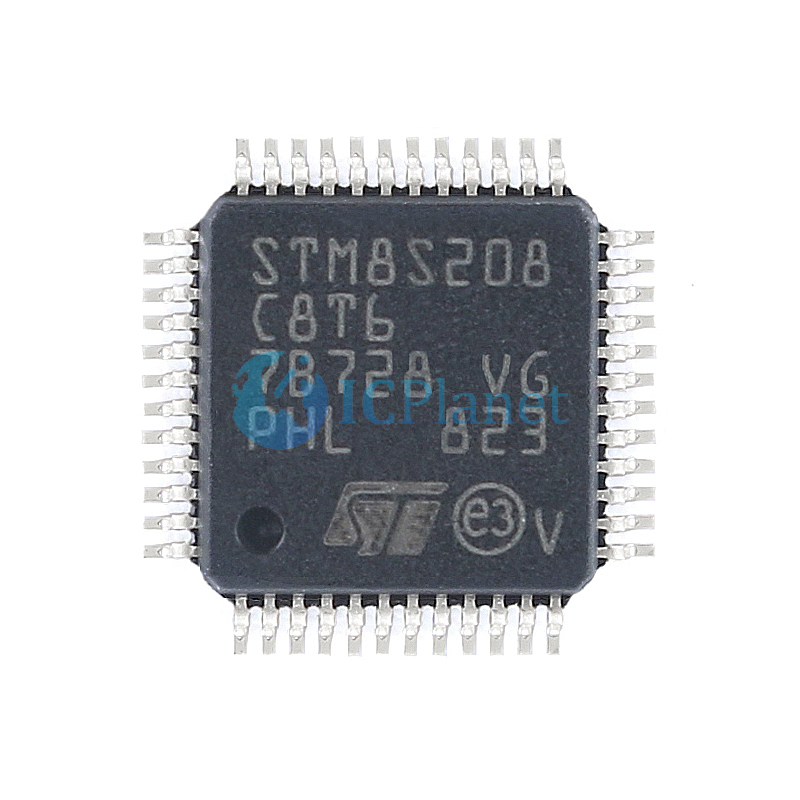

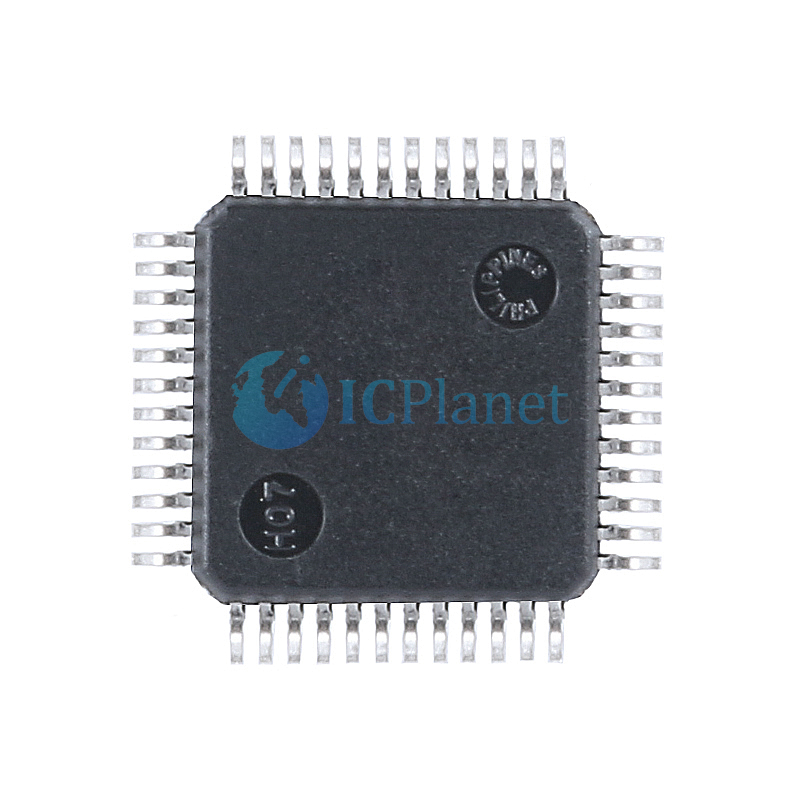

STM STM8S208C8T6 LQFP48 STM8 series 8-Bit 24MHz Microcontrolle Ic Chip

The STM8S20xxx performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash program memory. They are referred to as high-density devices in the STM8S microcontroller family reference manual.

All STM8S20xxx devices provide the following benefits: reduced system cost, performance robustness, short development cycles, and product longevity.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.

Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.

Short development cycles are guaranteed due to application scalability across a common family product architecture with compatible pinout, memory map and modular peripherals. Full documentation is offered with a wide choice of development tools.

Product longevity is ensured in the STM8S family thanks to their advanced core which is made in a state-of-the art technology for applications with 2.95 V to 5.5 V operating supply.

Features

 ✦ Core – Max fCPU: up to 24 MHz, 0 wait states @ fCPU≤16 MHz – Advanced STM8 core with Harvard architecture and 3-stage pipeline – Extended instruction set – Max 20 MIPS @ 24 MHz

 ✦ Memories

– Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles

– Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles

– RAM: up to 6 Kbytes

 ✦ Clock, reset and supply management

– 2.95 to 5.5 V operating voltage

– Low power crystal resonator oscillator

– External clock input

– Internal, user-trimmable 16 MHz RC

– Internal low power 128 kHz RC

– Clock security system with clock monitor

– Wait, active-halt, & halt low power modes

– Peripheral clocks switched off individually

– Permanently active, low consumption power-on and power-down reset

 ✦ Interrupt management

– Nested interrupt controller with 32 interrupts

– Up to 37 external interrupts on 6 vectors

 ✦ Timers

– 2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM)

– Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, deadtime insertion and flexible synchronization

– 8-bit basic timer with 8-bit prescaler

– Auto wakeup timer

– Window watchdog, independent watchdog

 ✦ Communications interfaces

– High speed 1 Mbit/s active beCAN 2.0B

– UART with clock output for synchronous operation - LIN master mode

– UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization

– SPI interface up to 10 Mbit/s

– I2C interface up to 400 Kbit/s

 ✦ 10-bit ADC with up to 16 channels

 ✦  I/Os

– Up to 68 I/Os on an 80-pin package including 18 high sink outputs

– Highly robust I/O design, immune against current injection

– Development support

– Single wire interface module (SWIM) and debug module (DM)

 ✦ 96-bit unique ID key for each device
