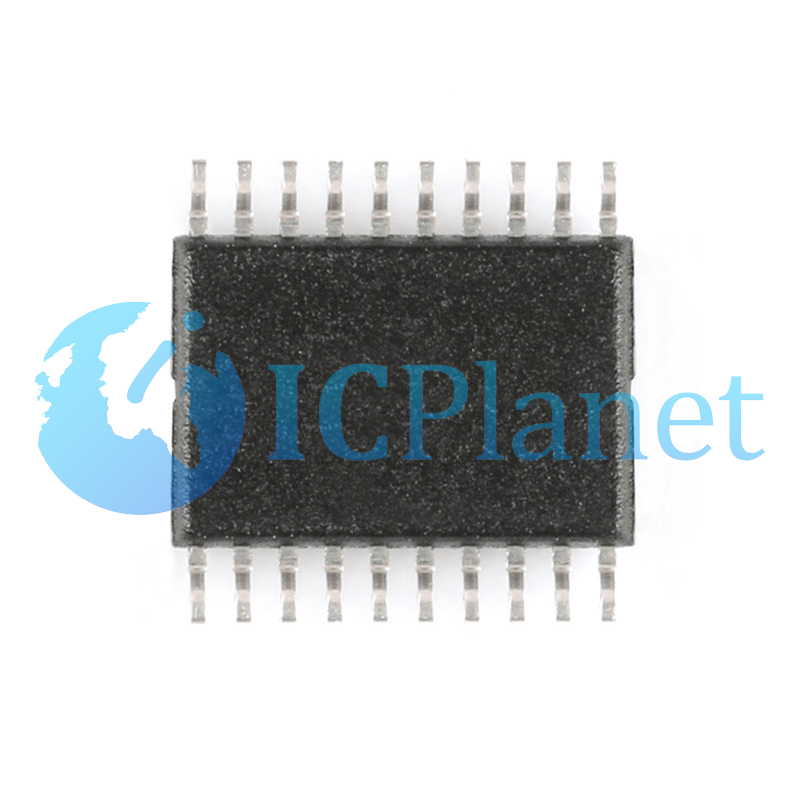

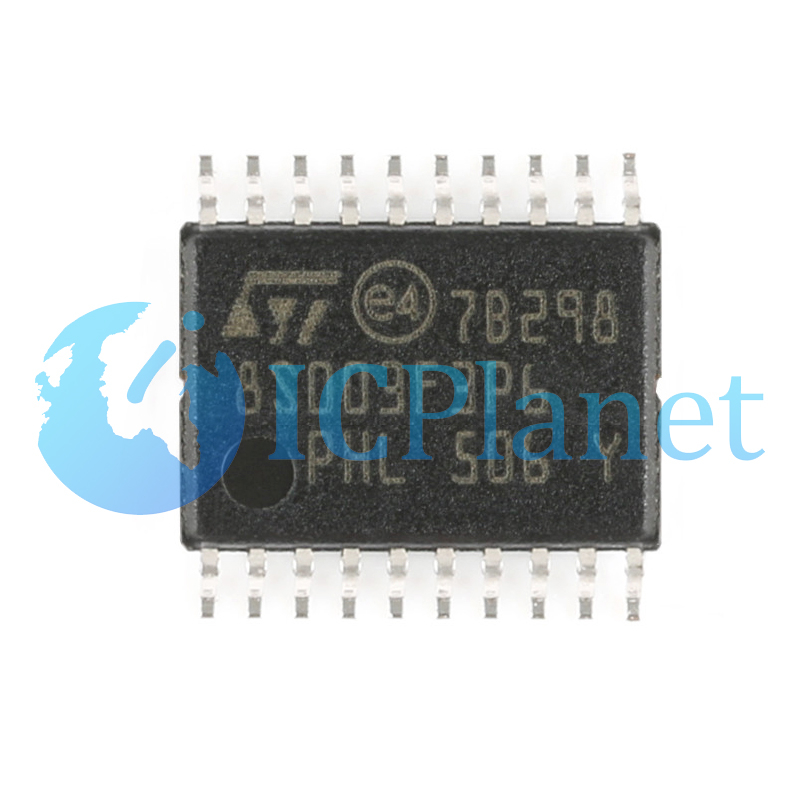

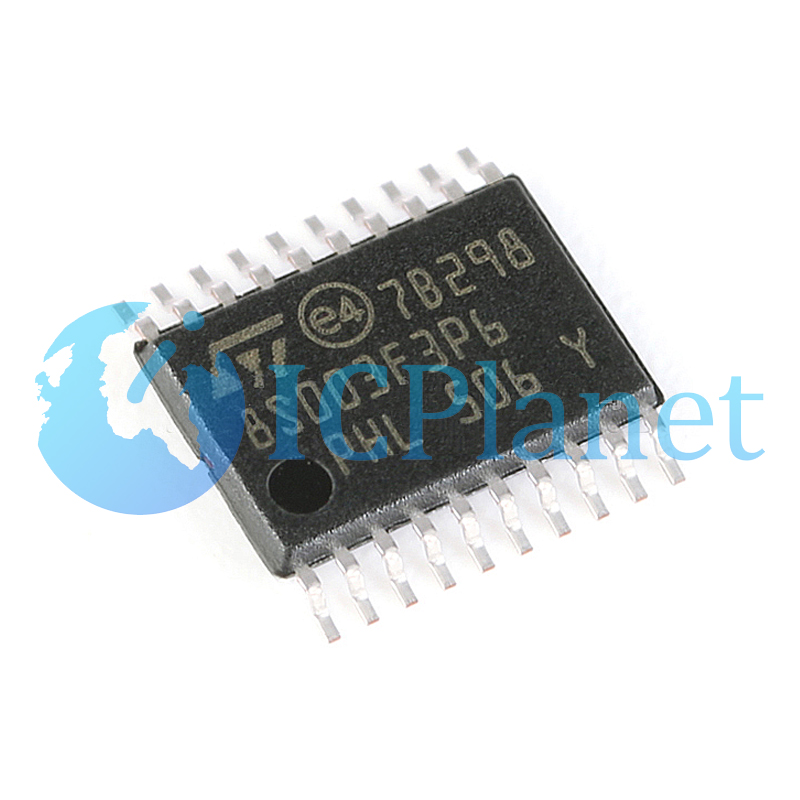

STM8S003F3P6
STMicroelectronics
ICPlanet
STM8 series Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 20-TSSOP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM8S |

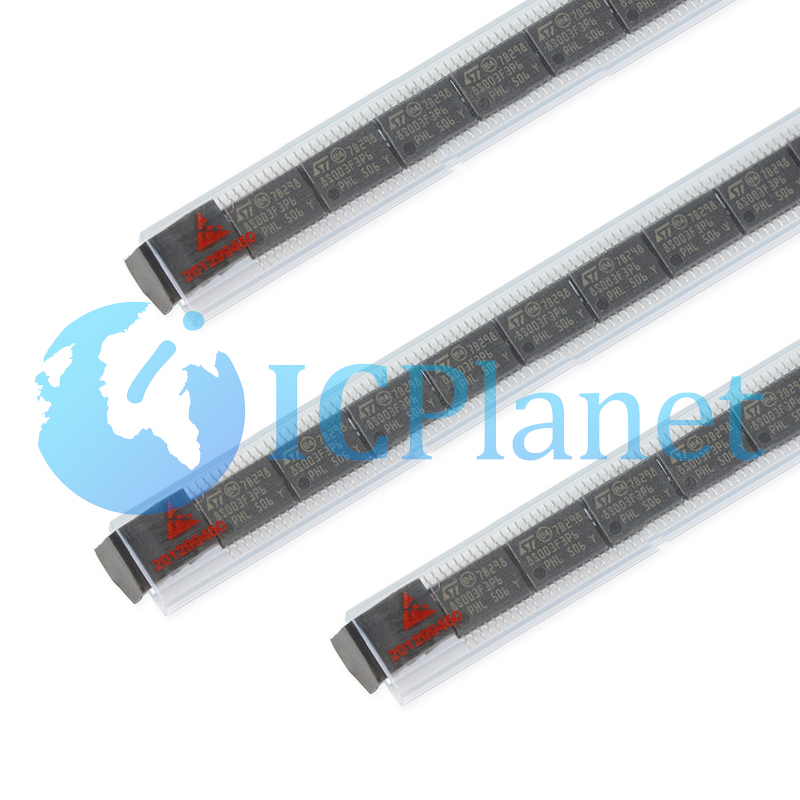

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Core Processor | STM8 |
Core Size | 8-Bit |
Speed | 16MHz |
Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 16 |
Program Memory Size | 8KB (8K x 8) |
Program Memory Type | FLASH |
EEPROM Size | 128 x 8 |
RAM Size | 1K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
Data Converters | A/D 5x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 20-TSSOP |
Product Attributes
Value line, 16-MHz STM8S 8-bit MCU, 8-Kbyte Flash memory,128-byte data EEPROM, 10-bit ADC, 3 timers, UART, SPI, I²C
Core：
• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set
Memories：
• Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
• RAM: 1 Kbyte
• Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
Clock, reset and supply management ：
• 2.95 V to 5.5 V operating voltage
• Flexible clock control, 4 master clock sources
– Low-power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
• Clock security system with clock monitor
• Power management
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
– Permanently active, low-consumption power-on and power-down reset
Interrupt management：
• Nested interrupt controller with 32 interrupts
• Up to 27 external interrupts on 6 vectors
Timers：
• Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
• 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
• 8-bit basic timer with 8-bit prescaler
• Auto wakeup timer
• Window and independent watchdog timers
Communications interfaces：
• UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
• SPI interface up to 8 Mbit/s
• I2C interface up to 400 Kbit/s
Analog to digital converter (ADC)：
• 10-bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog
I/Os：
• Up to 28 I/Os on a 32-pin package including 21 high-sink outputs
• Highly robust I/O design, immune against current injection
Development support：
• Embedded single-wire interface module (SWIM) for fast on-chip programming and non-intrusive debugging
