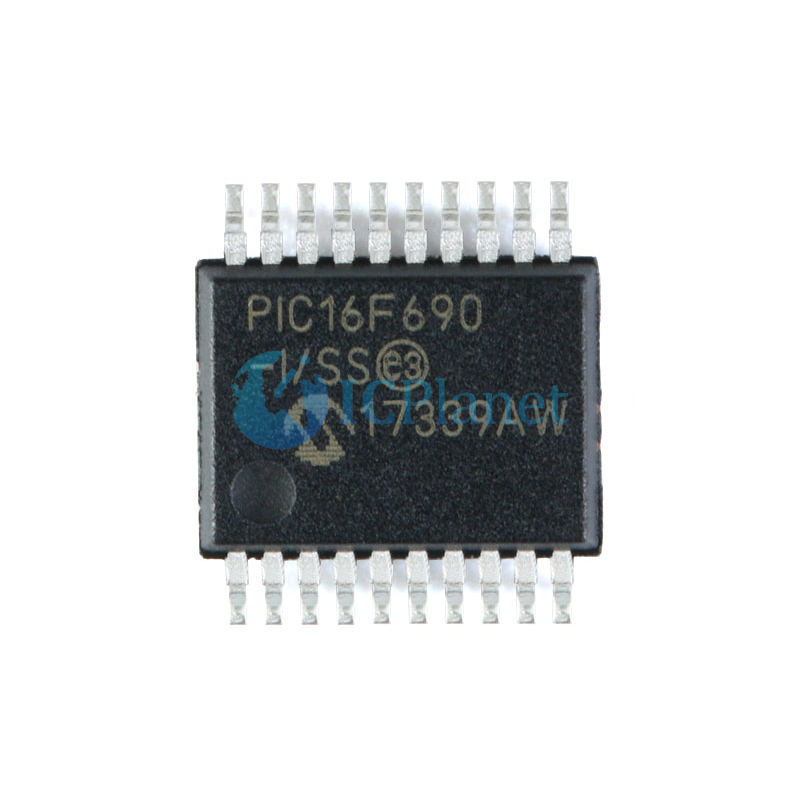

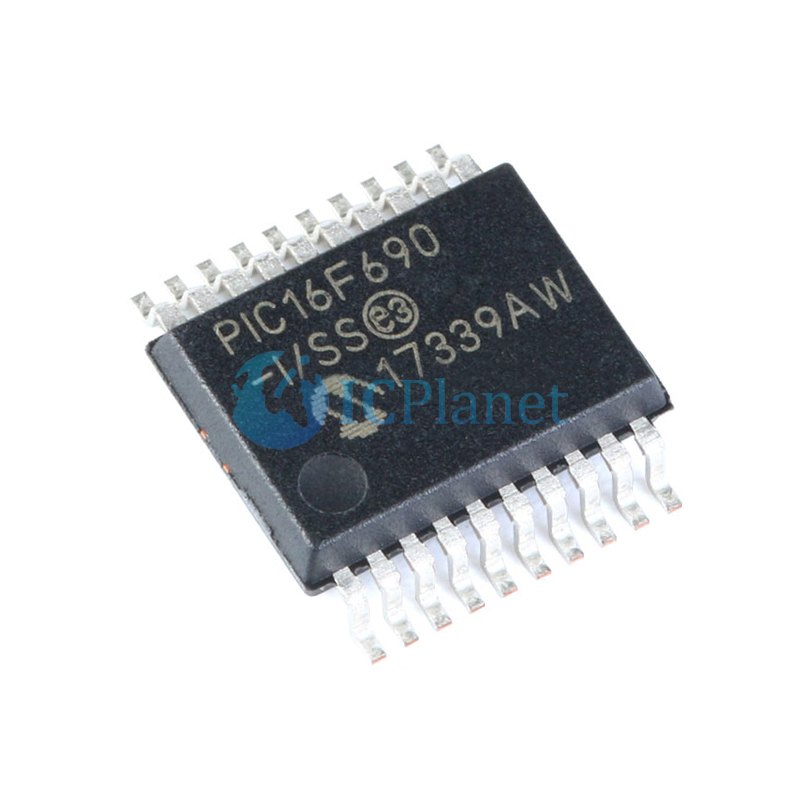

PIC16F690-I/SS
Microchip Technology
ICPlanet
PIC series Microcontroller IC 8-Bit 20MHz 7KB (4K x 14) FLASH 20-SSOP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Microchip Technology |
Series | PIC® 16F |
Package | Tube |
Part Status | Active |
Core Processor | PIC |
Core Size | 8-Bit |
Speed | 20MHz |
Connectivity | I²C, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 18 |
Program Memory Size | 7KB (4K x 14) |
Program Memory Type | FLASH |
EEPROM Size | 256 x 8 |
RAM Size | 256 x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
Data Converters | A/D 12x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 20-SSOP (0.209", 5.30mm Width) |
Supplier Device Package | 20-SSOP |
