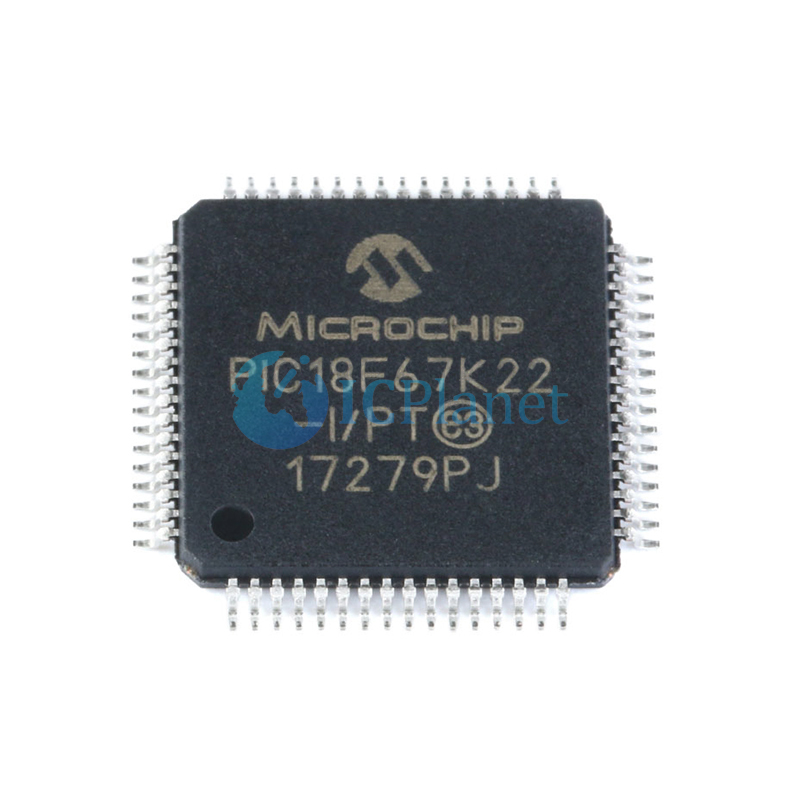

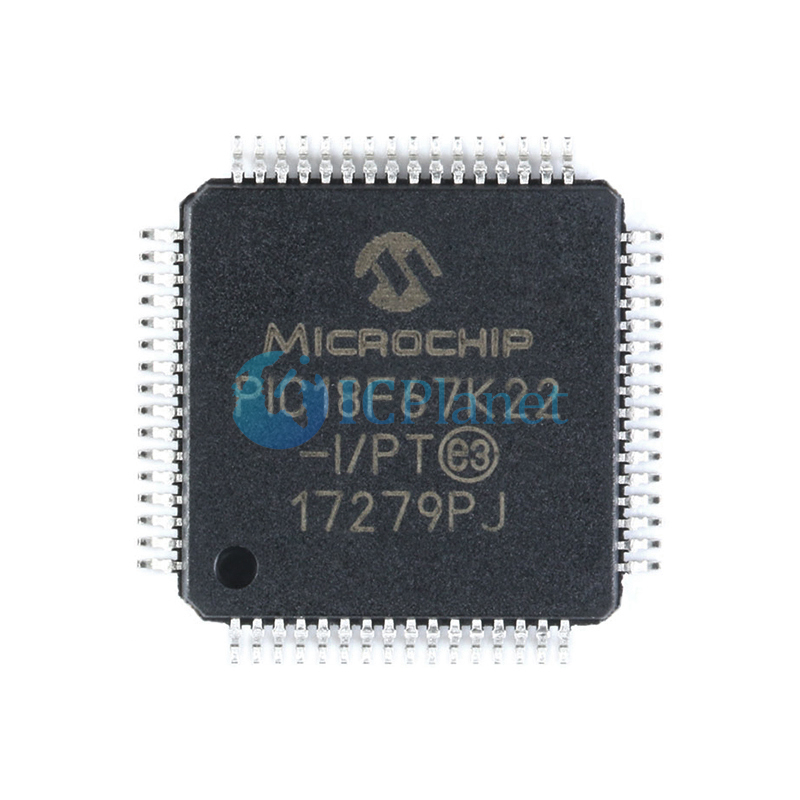

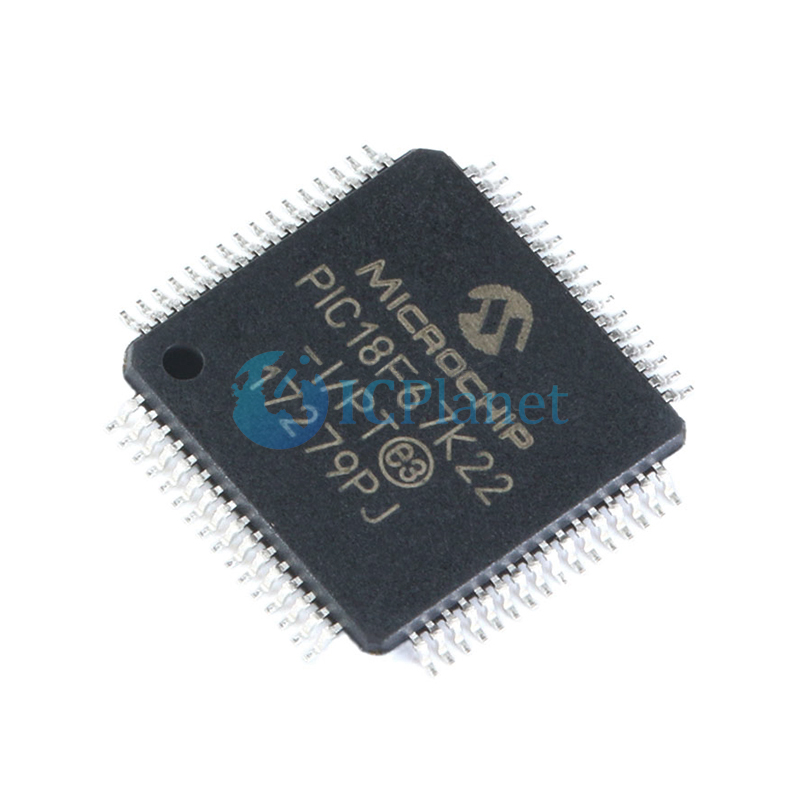

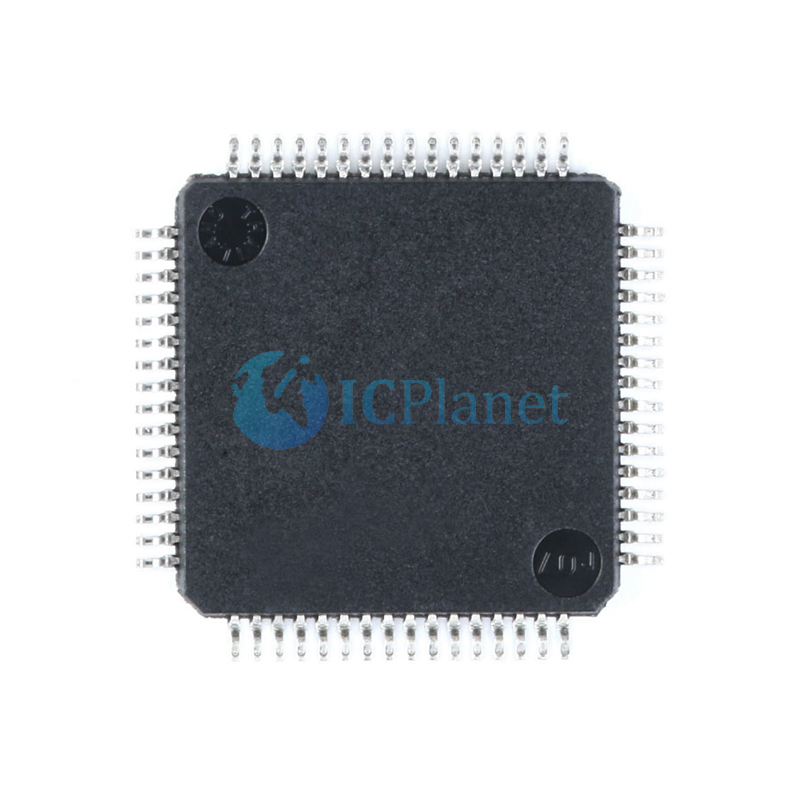

PIC18F67K22-I/PT
Microchip Technology
ICPlanet
PIC series Microcontroller IC 8-Bit 64MHz 128KB (64K x 16) FLASH 64-TQFP (10x10)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Microchip Technology |
Series | PIC® XLP™ 18K |
Package | Tray |
Part Status | Active |
Core Processor | PIC |
Core Size | 8-Bit |
Speed | 64MHz |
Connectivity | I²C, LINbus, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
Number of I/O | 53 |
Program Memory Size | 128KB (64K x 16) |
Program Memory Type | FLASH |
EEPROM Size | 1K x 8 |
RAM Size | 4K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
Data Converters | A/D 16x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 64-TQFP |
Supplier Device Package | 64-TQFP (10x10) |
Low-Power Features:
• Power-Managed modes:
- Run: CPU on, peripherals on
- Idle: CPU off, peripherals on
- Sleep: CPU off, peripherals off
• Two-Speed Oscillator Start-up
• Fail-Safe Clock Monitor
• Power-Saving Peripheral Module Disable (PMD)
• Ultra Low-Power Wake-up
• Fast Wake-up, 1 μs Typical
• Low-Power WDT, 300 nA Typical
• Ultra Low 50 nA Input Leakage
• Run mode Currents Down to 5.5 μA, Typical
• Idle mode Currents Down to 1.7 μA Typical
• Sleep mode Currents Down to Very Low 20 nA, Typical
• RTCC Current Downs to Very Low 700 nA, Typical
Special Microcontroller Features:
• Operating Voltage Range: 1.8V to 5.5V
• On-Chip 3.3V Regulator
• Operating Speed up to 64 MHz
• Up to 128 Kbytes On-Chip Flash Program Memory
• Data EEPROM of 1,024 Bytes
• 4K x 8 General Purpose Registers (SRAM)
• 10,000 Erase/Write Cycle Flash Program Memory, Minimum
• 1,000,000 Erase/write Cycle Data EEPROM Memory, Typical
• Flash Retention: 40 Years, Minimum
• Three Internal Oscillators: LF-INTRC (31 kHz), MF-INTOSC (500 kHz) and HF-INTOSC (16 MHz)
• Self-Programmable under Software Control
• Priority Levels for Interrupts
• 8 x 8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 4,194s (about 70 minutes)
• In-Circuit Serial Programming™ (ICSP™) via Two Pins
• In-Circuit Debug via Two Pins
• Programmable: - BOR - LVD
Peripheral Highlights:
• Up to Ten CCP/ECCP modules:
- Up to seven Capture/Compare/PWM (CCP) modules
- Three Enhanced Capture/Compare/PWM (ECCP) modules
• Up to Eleven 8/16-Bit Timer/Counter modules:
- Timer0 – 8/16-bit timer/counter with 8-bit programmable prescaler
- Timer1,3 – 16-bit timer/counter
- Timer2,4,6,8 – 8-bit timer/counter
- Timer5,7 – 16-bit timer/counter for 64k and 128k parts
- Timer10,12 – 8-bit timer/counter for 64k and 128k parts
• Three Analog Comparators
• Configurable Reference Clock Output
• Hardware Real-Time Clock and Calendar (RTCC) module with Clock, Calendar and Alarm Functions
• Charge Time Measurement Unit (CTMU):
- Capacitance measurement for mTouch® sensing solution
- Time measurement with 1 ns typical resolution
- Integrated temperature sensor
• High-Current Sink/Source 25 mA/25 mA (PORTB and PORTC)
• Up to Four External Interrupts
• Two Master Synchronous Serial Port (MSSP) modules:
- 3/4-wire SPI (supports all four SPI modes)
- I2C Master and Slave modes
• Two Enhanced Addressable USART modules:
- LIN/J2602 support
- Auto-Baud Detect (ABD)
• 12-Bit A/D Converter with up to 24 Channels:
- Auto-acquisition and Sleep operation
- Differential input mode of operation
• Integrated Voltage Reference
