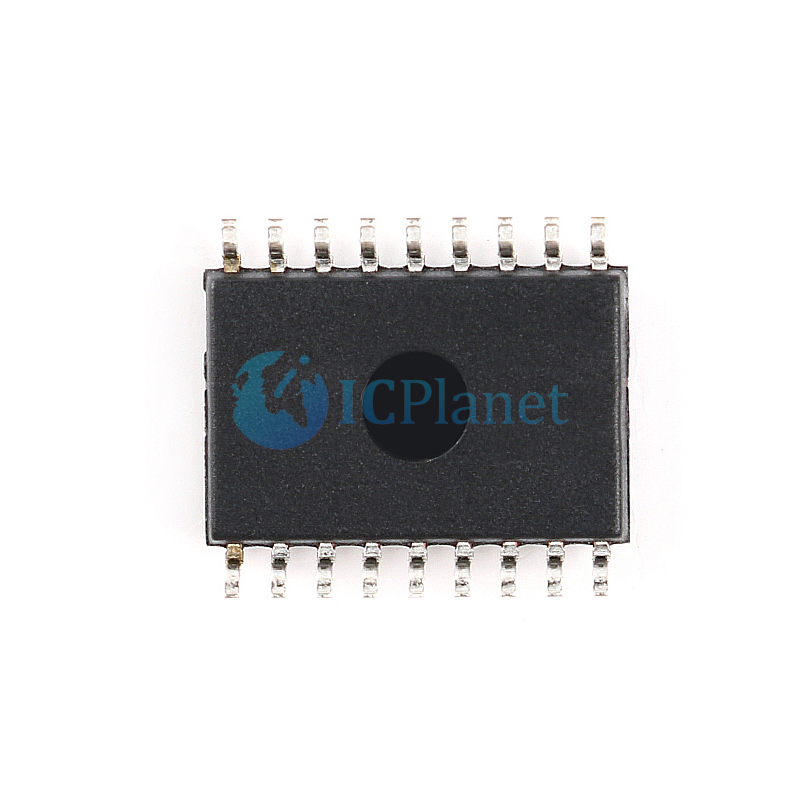

| IC MCU 8BIT 3.5KB FLASH 18SOIC |

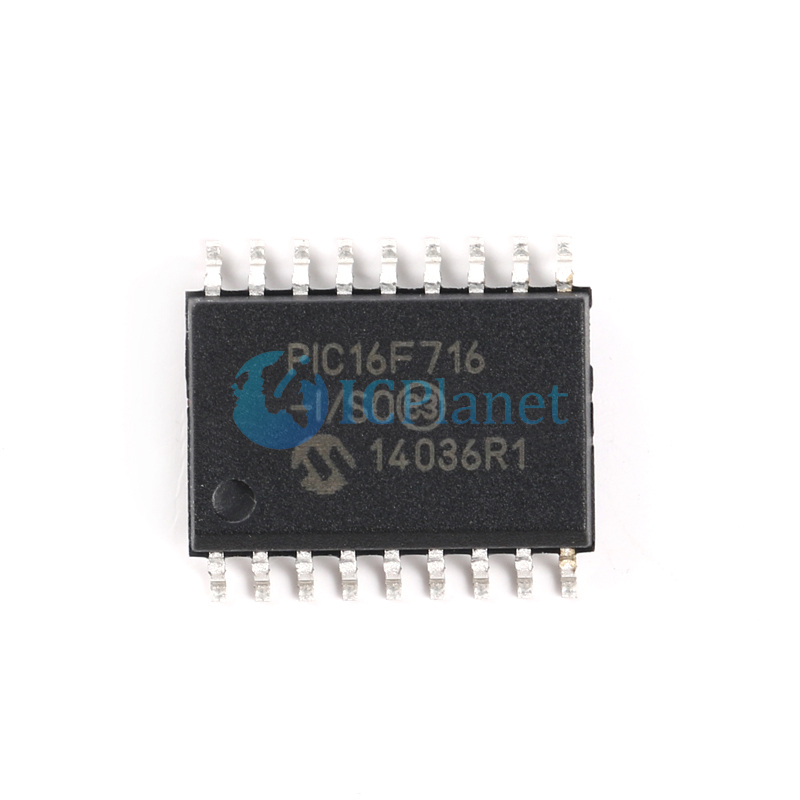

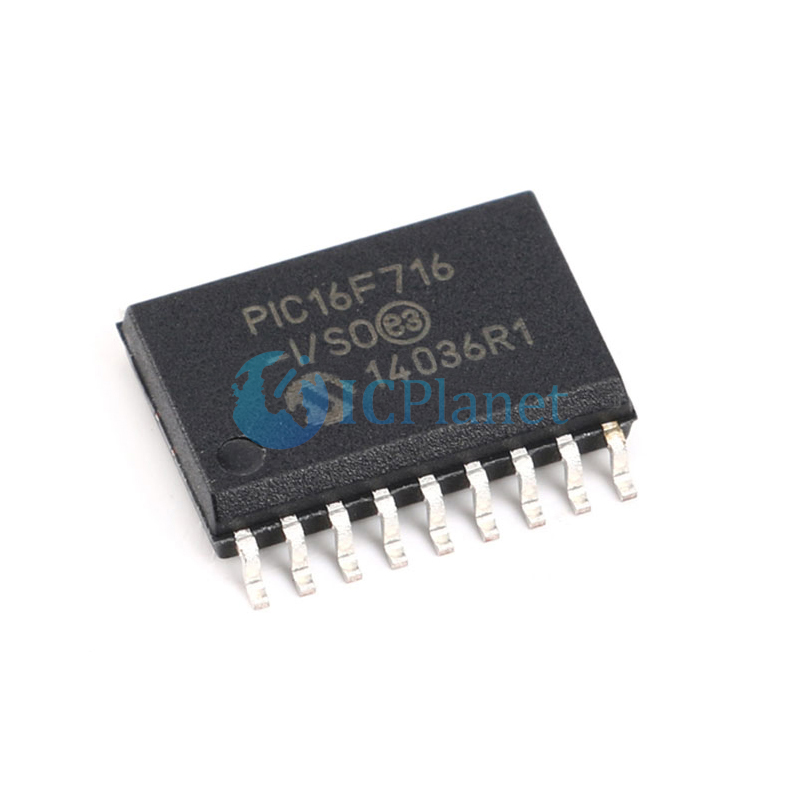

PIC16F716-I/SO
Microchip Technology
ICPlanet
PIC series Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 18-SOIC
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Microchip Technology |
Series | PIC® 16F |
Package | Tube |
Part Status | Active |
Core Processor | PIC |
Core Size | 8-Bit |
Speed | 20MHz |
Connectivity | - |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 13 |
Program Memory Size | 3.5KB (2K x 14) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 128 x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
Data Converters | A/D 4x8b |
Oscillator Type | External |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 18-SOIC (0.295", 7.50mm Width) |
Supplier Device Package | 18-SOIC |
• High-performance RISC CPU
• Only 35 single-word instructions to learn
- All single-cycle instructions except for program branches which are two-cycle
• Operating speed : DC - 20 MHz clock input
DC - 200 ns instruction cycle
• Interrupt capability (up to 7 internal/external interrupt sources)
• 8-level deep hardware stack
• Direct, Indirect and Relative Addressing modes
Special Microcontroller Features
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Dual level Brown-out Reset circuitry - 2.5 VBOR (Typical)
- 4.0 VBOR (Typical)
• Programmable code protection
• Power saving Sleep mode
• Selectable oscillator options
• Fully static design
• In-Circuit Serial Programming™ (ICSP™)
CMOS Technology
• Wide operating voltage range
- Industrial: 2.0V to 5.5V
- Extended: 3.0V to 5.5V
• High Sink/Source Current 25/25 mA
• Wide temperature range:
- Industrial: -40°C to 85°C
- Extended: -40°C to 125°C
Low-Power Features:
• Standby Current:
- 100 nA @ 2.0V, typical
• Operating Current:
- 14 µA @ 32 kHz, 2.0V, typical - 120 µA @ 1 MHz, 2.0V, typical
• Watchdog Timer Circuit:
- 1 µA @ 2.0V, typical
• Timer1 Oscillator Current:
- 3.0 µA @ 32 kHz, 2.0V, typical
Peripheral Features:
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler can be incremented during Sleep via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Enhanced Capture, Compare, PWM module:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM maximum resolution is 10-bit
- Enhanced PWM: - Single, Half-Bridge and Full-Bridge modes
- Digitally programmable dead-band delay
- Auto-shutdown/restart
• 8-bit multi-channel Analog-to-Digital converter
• 13 I/O pins with individual direction control
• Programmable weak pull-ups on PORTB
