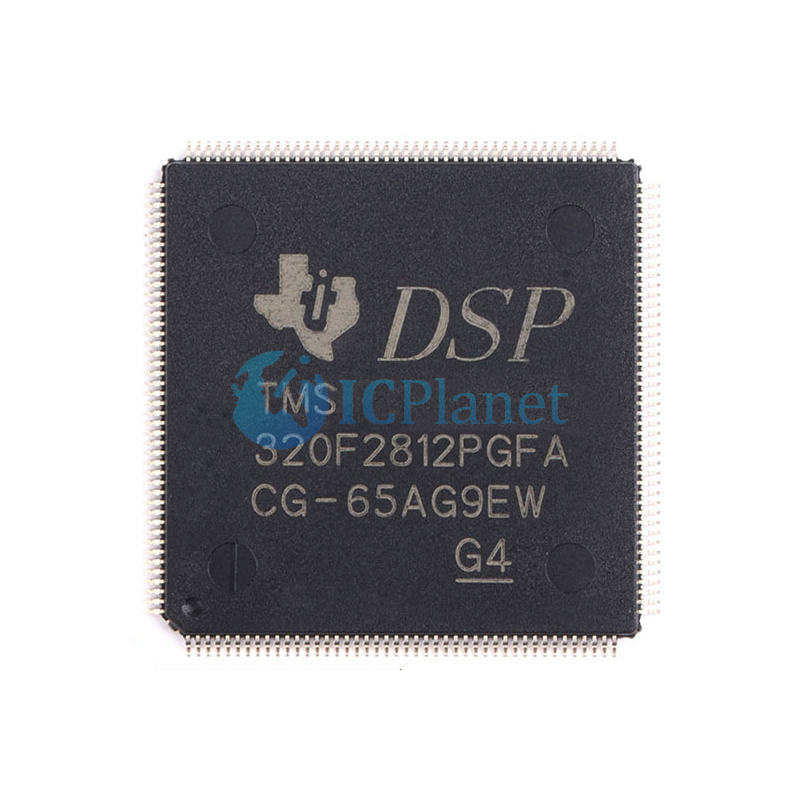

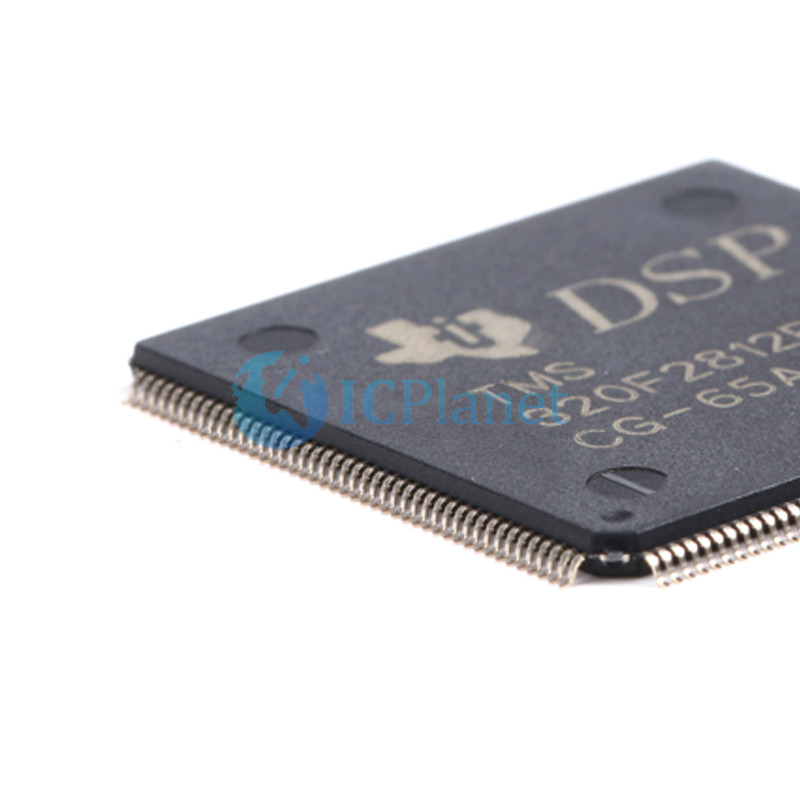

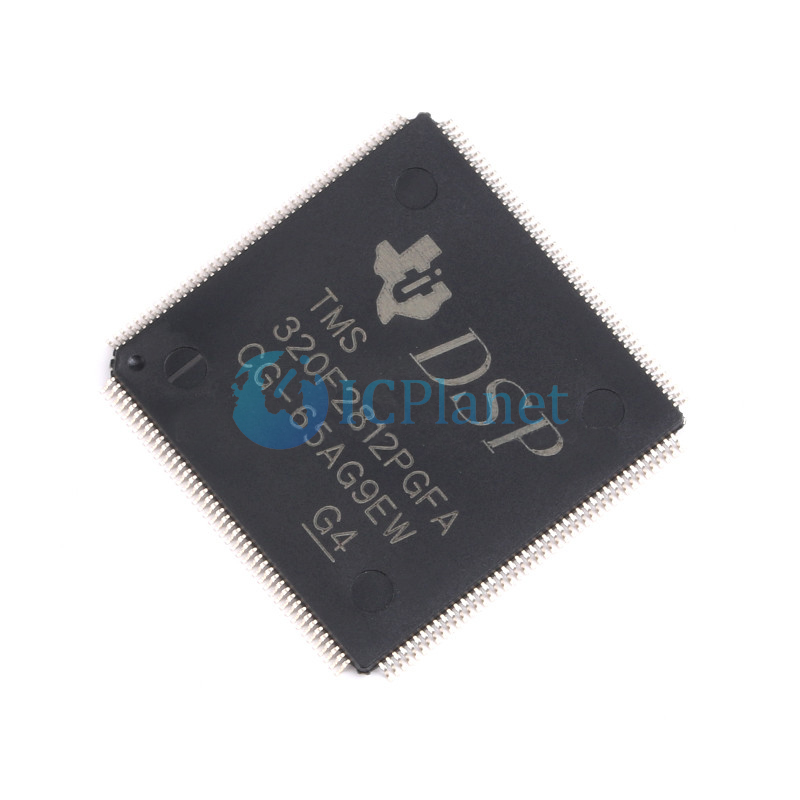

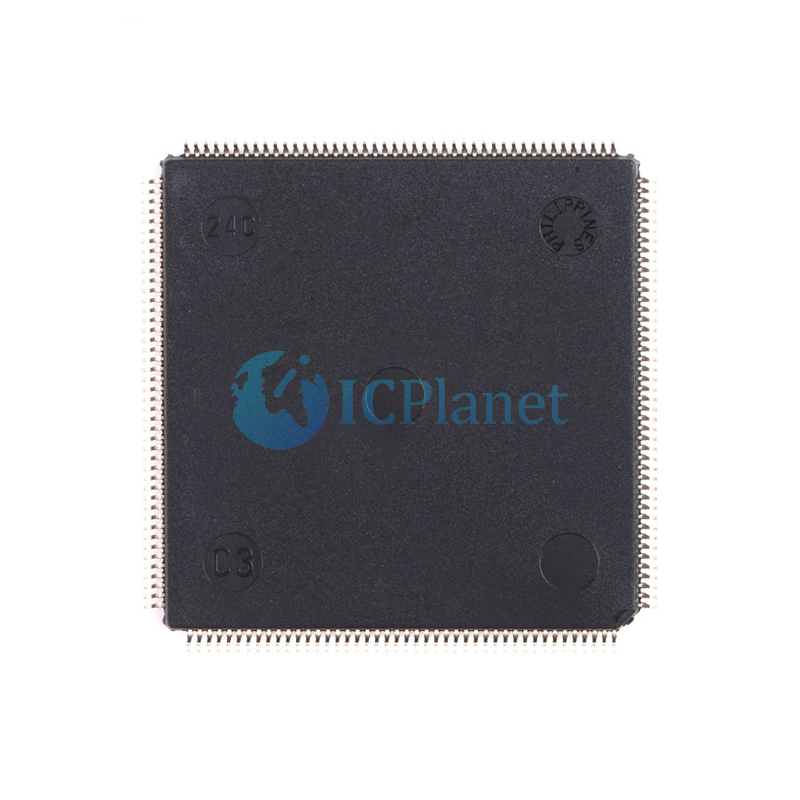

TMS320F2812PGFA LQFP176 C28x Core Processor Flash Microcontrollers chip

IC MCU 32BIT 256KB FLASH 176LQFP
  • TMS320F2812PGFA

  • Texas Instruments

  • ICPlanet

  • C28x series Microcontroller IC 32-Bit 150MHz 256KB (128K x 16) FLASH 176-LQFP (24x24)

Encapsulation:
SKU:
Availability:
Quantity:

PDF Export

TYPE
DESCRIPTION
Category
Integrated Circuits (ICs)
Embedded - Microcontrollers
Mfr
Texas Instruments
Series
Automotive, AEC-Q100, C2000™ C28x Fixed-Point
Package
Tray
Part Status
Active
Core Processor
C28x
Core Size
32-Bit
Speed
150MHz
Connectivity
CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART
Peripherals
DMA, POR, PWM, WDT
Number of I/O
56
Program Memory Size
256KB (128K x 16)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
18K x 16
Voltage - Supply (Vcc/Vdd)
1.81V ~ 2V
Data Converters
A/D 16x12b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
176-LQFP
Supplier Device Package
176-LQFP (24x24)

Features

• High-performance static CMOS technology

– 150 MHz (6.67-ns cycle time)

– Low-power (1.8-V core at 135 MHz, 1.9-V core at 150 MHz, 3.3-V I/O) design

• JTAG boundary scan support

– IEEE Standard 1149.1-1990 IEEE Standard Test Access Port and Boundary-Scan Architecture

• High-performance 32-bit CPU (TMS320C28x)

– 16 × 16 and 32 × 32 MAC operations

– 16 × 16 dual MAC

– Harvard bus architecture

– Atomic operations

– Fast interrupt response and processing

– Unified memory programming model

– 4M linear program/data address reach

– Code-efficient (in C/C++ and Assembly)

– TMS320F24x/LF240x processor source code compatible

• On-chip memory

– Up to 128K × 16 flash (Four 8K × 16 and six 16K × 16 sectors)

– 1K × 16 OTP ROM

– L0 and L1: 2 blocks of 4K × 16 each SingleAccess RAM (SARAM)

– H0: 1 block of 8K × 16 SARAM

– M0 and M1: 2 blocks of 1K × 16 each SARAM • Boot ROM (4K × 16)

– With software boot modes

– Standard math tables

• External interface (F2812)

– Over 1M × 16 total memory

– Programmable wait states

– Programmable read/write strobe timing

– Three individual chip selects

• Endianness: Little endian

• Clock and system control

– On-chip oscillator – Watchdog timer module

• Three external interrupts

• Peripheral Interrupt Expansion (PIE) block that supports 45 peripheral interrupts

• Three 32-bit CPU timers

• 128-bit security key/lock

– Protects flash/OTP and L0/L1 SARAM

– Prevents firmware reverse-engineering

• Motor control peripherals

– Two Event Managers (EVA, EVB)

– Compatible to 240xA devices

• Serial port peripherals

– Serial Peripheral Interface (SPI)

– Two Serial Communications Interfaces (SCIs), standard UART

– Enhanced Controller Area Network (eCAN)

– Multichannel Buffered Serial Port (McBSP)

• 12-bit ADC, 16 channels

– 2 × 8 channel input multiplexer

– Two Sample-and-Hold

– Single/simultaneous conversions

– Fast conversion rate: 80 ns/12.5 MSPS

• Up to 56 General-Purpose I/O (GPIO) pins

• Advanced emulation features

– Analysis and breakpoint functions

– Real-time debug via hardware

• Development tools include

– ANSI C/C++ compiler/assembler/linker

– Code Composer Studio™ IDE

– DSP/BIOS™

– JTAG scan controllers

• IEEE Standard 1149.1-1990 IEEE Standard Test Access Port and Boundary-Scan Architecture

• Low-power modes and power savings

– IDLE, STANDBY, HALT modes supported

– Disable individual peripheral clocks

• Package options

– 179-ball MicroStar BGA™ with external memory interface (GHH, ZHH) (F2812)

– 176-pin Low-Profile Quad Flatpack (LQFP) with external memory interface (PGF) (F2812)

– 128-pin LQFP without external memory interface (PBK) (F2810, F2811)

• Temperature options –

A: –40°C to 85°C (GHH, ZHH, PGF, PBK) –

S: –40°C to 125°C (GHH, ZHH, PGF, PBK) –

Q: –40°C to 125°C (PGF, PBK) (AEC-Q100 qualification for automotive applications)
