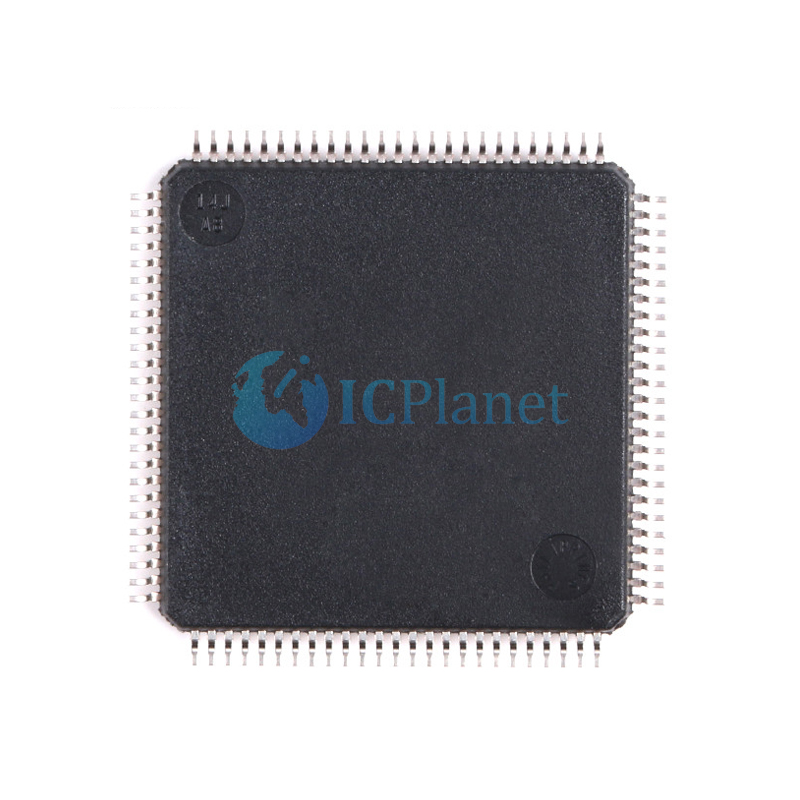

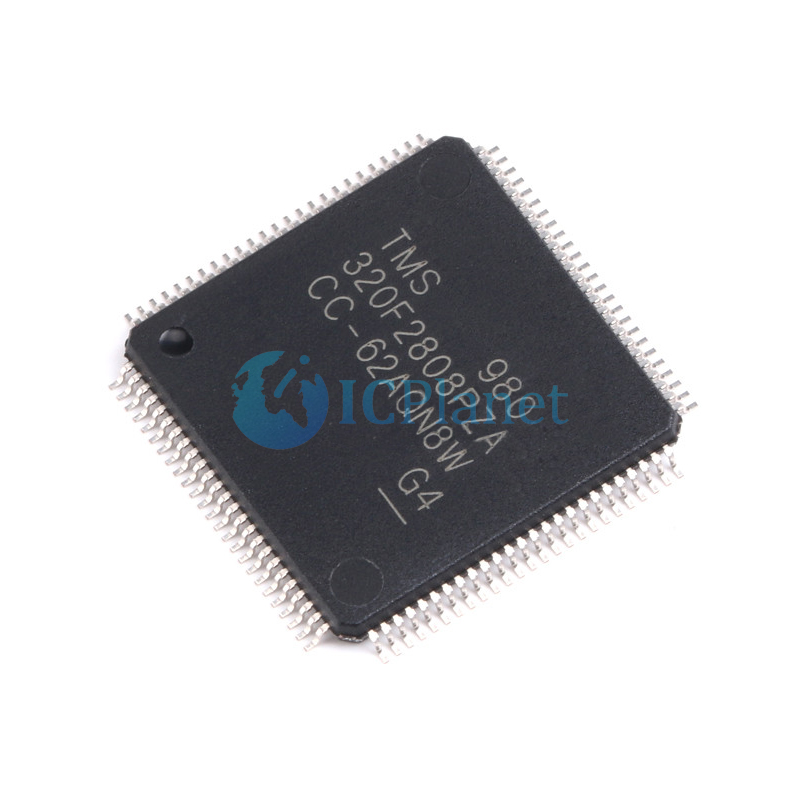

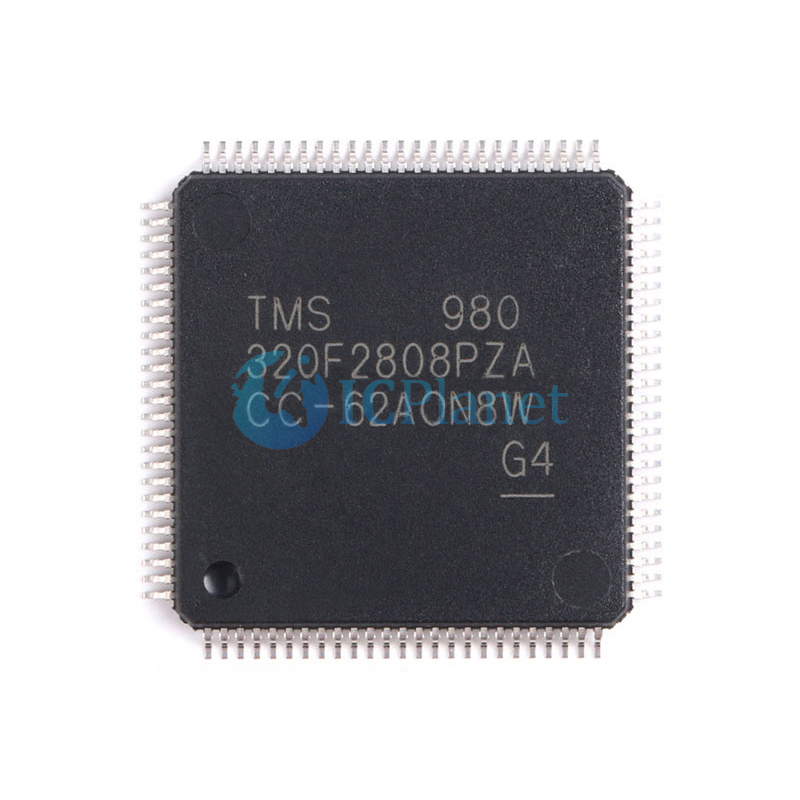

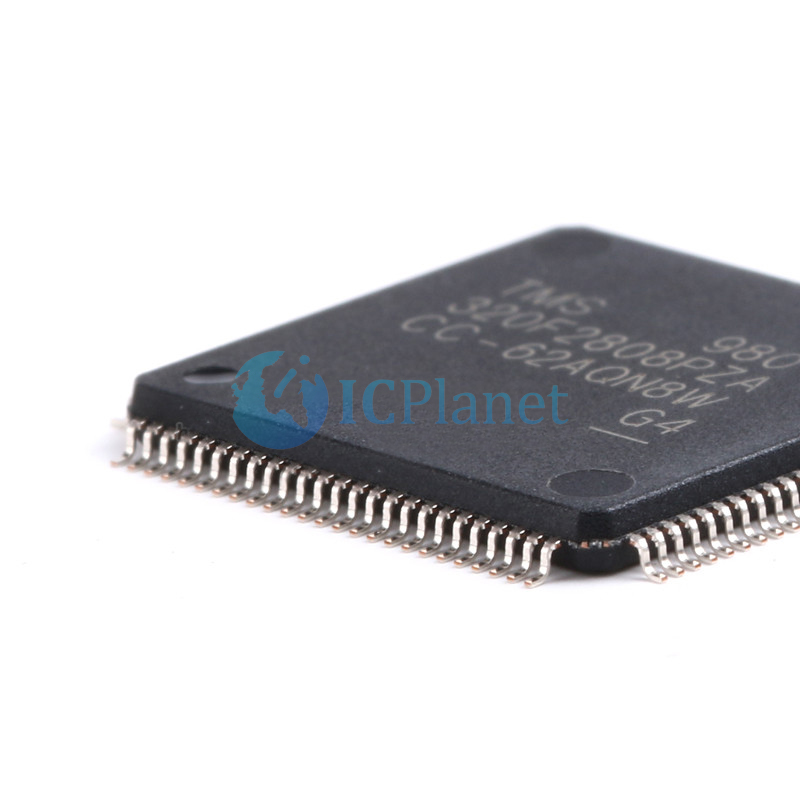

TMS320F2808PZA
ICPlanet
C28x series Microcontroller IC 32-Bit 100MHz 128KB (64K x 16) FLASH 100-LQFP (14x14)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Texas Instruments |
Series | Automotive, AEC-Q100, C2000™ C28x Fixed-Point |
Package | Tray |
Part Status | Active |
Core Processor | C28x |
Core Size | 32-Bit |
Speed | 100MHz |
Connectivity | CANbus, I²C, SCI, SPI, UART/USART |
Peripherals | POR, PWM, WDT |
Number of I/O | 35 |
Program Memory Size | 128KB (64K x 16) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 18K x 16 |
Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.89V |
Data Converters | A/D 16x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 100-LQFP |
Supplier Device Package | 100-LQFP (14x14) |
Features
• High-performance static CMOS technology
– 100 MHz (10-ns cycle time)
– 60 MHz (16.67-ns cycle time)
– Low-power (1.8-V core, 3.3-V I/O) design
• JTAG boundary scan support
– IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
• High-performance 32-bit CPU (TMS320C28x)
– 16 × 16 and 32 × 32 MAC operations
– 16 × 16 dual MAC
– Harvard bus architecture
– Atomic operations
– Fast interrupt response and processing
– Unified memory programming model
– Code-efficient (in C/C++ and Assembly)
• On-chip memory
– F2809: 128K × 16 flash, 18K × 16 SARAM
F2808: 64K × 16 flash, 18K × 16 SARAM
F2806: 32K × 16 flash, 10K × 16 SARAM
F2802: 32K × 16 flash, 6K × 16 SARAM
F2801: 16K × 16 flash, 6K × 16 SARAM
F2801x: 16K × 16 flash, 6K × 16 SARAM
– 1K × 16 OTP ROM (flash devices only)
– C2802: 32K × 16 ROM, 6K × 16 SARAM
C2801: 16K × 16 ROM, 6K × 16 SARAM
• Boot ROM (4K × 16)
– With software boot modes (via SCI, SPI, CAN, I2C, and parallel I/O)
– Standard math tables
• Clock and system control
– On-chip oscillator
– Watchdog timer module
• Any GPIO A pin can be connected to one of the three external core interrupts
• Peripheral Interrupt Expansion (PIE) block that supports all 43 peripheral interrupts
• Endianness: Little endian
• 128-bit security key/lock
– Protects flash/OTP/L0/L1 blocks
– Prevents firmware reverse-engineering
• Three 32-bit CPU timers
• Enhanced control peripherals
– Up to 16 PWM outputs
– Up to 6 HRPWM outputs with 150-ps MEP resolution
– Up to four capture inputs
– Up to two quadrature encoder interfaces
– Up to six 32-bit/six 16-bit timers
• Serial port peripherals
– Up to 4 SPI modules
– Up to 2 SCI (UART) modules
– Up to 2 CAN modules
– One Inter-Integrated-Circuit (I2C) bus
• 12-bit ADC, 16 channels
– 2 × 8 channel input multiplexer
– Two sample-and-hold
– Single/simultaneous conversions
– Fast conversion rate: 80 ns - 12.5 MSPS (F2809 only)
160 ns - 6.25 MSPS (280x)
267 ns - 3.75 MSPS (F2801x)
– Internal or external reference
• Up to 35 individually programmable, multiplexed GPIO pins with input filtering
• Advanced emulation features
– Analysis and breakpoint functions
– Real-time debug via hardware
• Development support includes
– ANSI C/C++ compiler/assembler/linker
– Code Composer Studio™ IDE – SYS/BIOS
– Digital motor control and digital power software libraries
• Low-power modes and power savings
– IDLE, STANDBY, HALT modes supported
– Disable individual peripheral clocks
• Package options – Thin quad flatpack (PZ)
– MicroStar BGA™ (GGM, ZGM)
• Temperature options
– A: –40°C to 85°C (PZ, GGM, ZGM)
– S: –40°C to 125°C (PZ, GGM, ZGM)
– Q: –40°C to 125°C (PZ) (AEC-Q100 qualification for automotive applications)
Applications
• Motor drive and control
Description
The TMS320F2809, TMS320F2809-Q1, TMS320F2808, TMS320F2808-Q1 TMS320F2806, TMS320F2802, TMS320F2801-Q1, TMS320F28015-Q1, TMS320F28016-Q1, TMS320C2802-Q1, and TMS320C2801 devices, members of the TMS320C28x DSP generation, are highly integrated, high-performance solutions for demanding control applications.
Throughout this document, TMS320F2809, TMS320F2809-Q1 TMS320F2808, TMS320F2808-Q1 TMS320F2806, TMS320F2802-Q1, TMS320F2801-Q1, TMS320C2802, TMS320C2801, TMS320F28015-Q1, and TMS320F28016-Q1 are abbreviated as F2809, F2808, F2806, F2802-Q1, F2801-Q1, C2802, C2801, F28015-Q1, and F28016-Q1, respectively. TMS320F28015-Q1 and TMS320F28016-Q1 are abbreviated as F2801x. Device Comparison (100-MHz Devices) and Device Comparison (60-MHz Devices) provide a summary of features for each device.
