| IC MCU 32BIT 256KB FLSH 48UFQFPN |

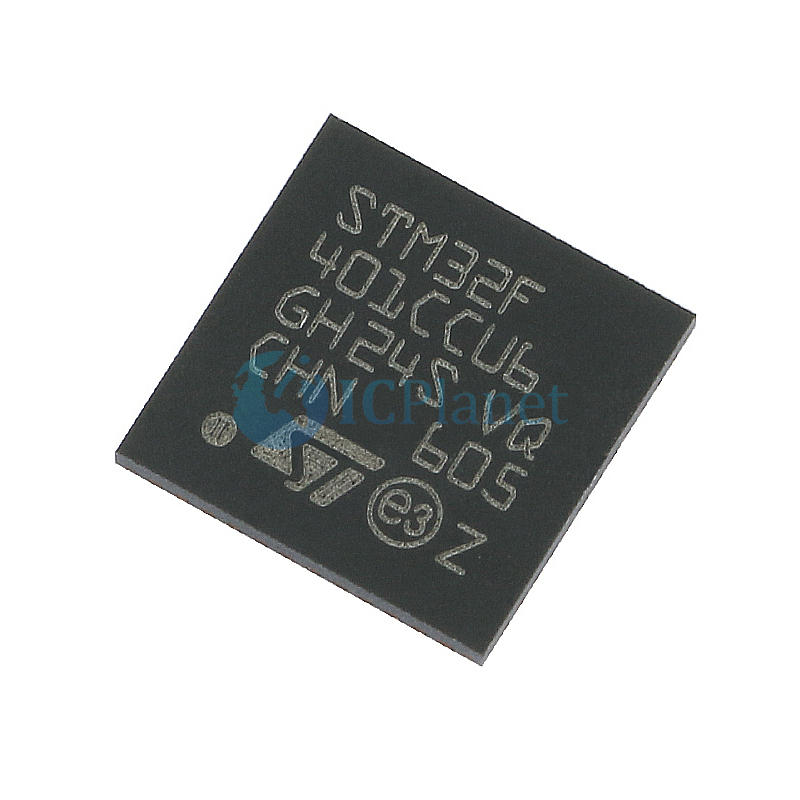

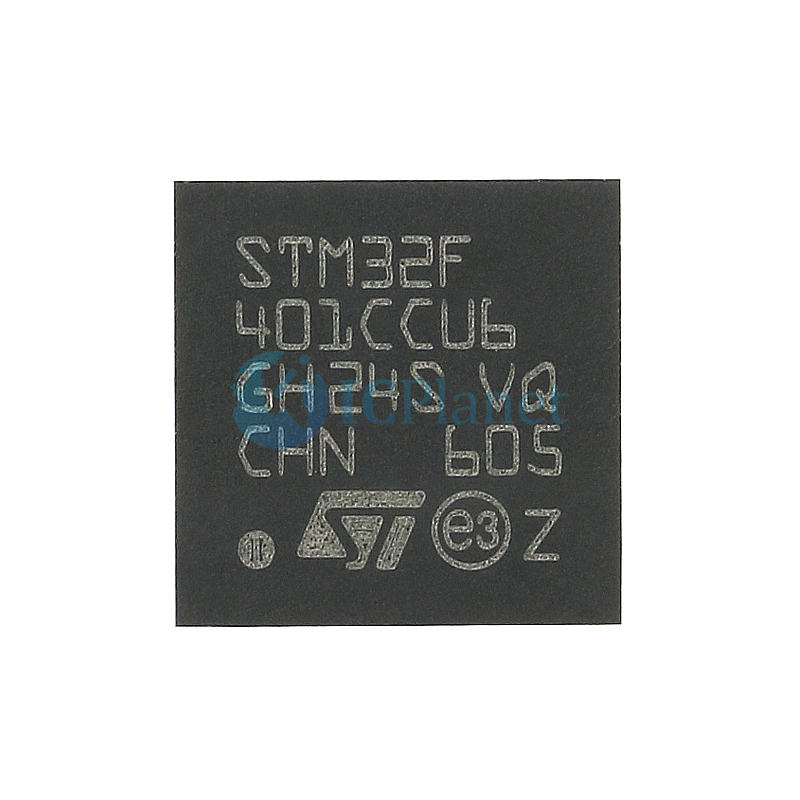

STM32F401CCU6
STMicroelectronics
ICPlanet
ARM® Cortex®-M4 series Microcontroller IC 32-Bit 84MHz 256KB (256K x 8) FLASH 48-UFQFPN (7x7)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32F4 |
Package | Tray |
Part Status | Active |
Core Processor | ARM® Cortex®-M4 |
Core Size | 32-Bit |
Speed | 84MHz |
Connectivity | I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG |
Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
Number of I/O | 36 |
Program Memory Size | 256KB (256K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 64K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
Data Converters | A/D 10x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |

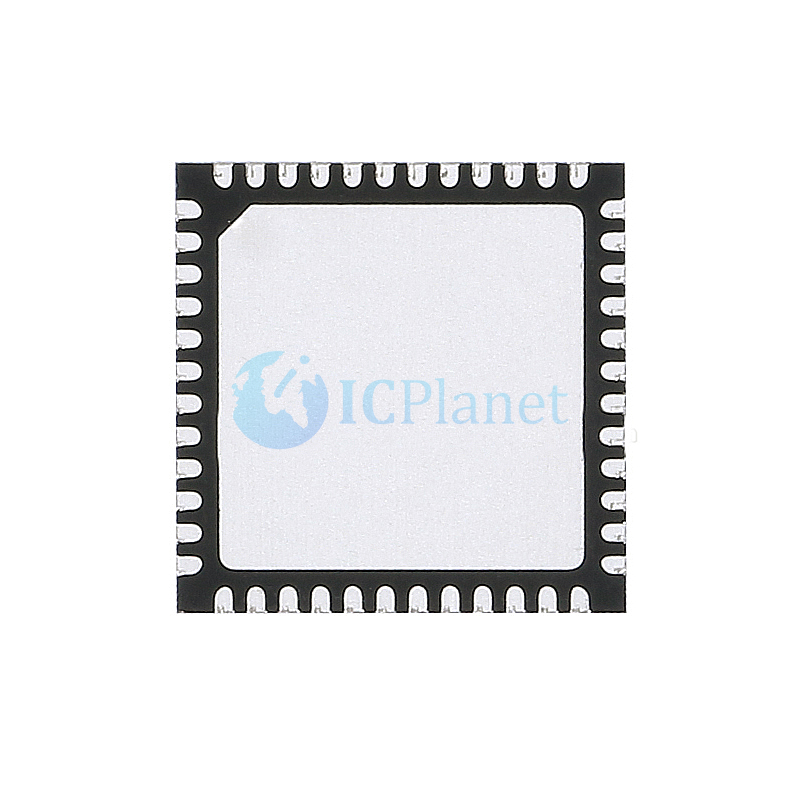

Package / Case | 48-UFQFN Exposed Pad |
Supplier Device Package | 48-UFQFPN (7x7) |
Features
• Dynamic efficiency line with BAM (batch acquisition mode)
– 1.7 V to 3.6 V power supply
– -40 °C to 85/105/125 °C temperature range
• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• Memories
– Up to 256 Kbytes of Flash memory
– 512 bytes of OTP memory
– Up to 64 Kbytes of SRAM
• Clock, reset and supply management
– 1.7 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
• Power consumption
– Run: 128 µA/MHz (peripheral off)
– Stop (Flash in Stop mode, fast wakeup time): 42 µA typ @ 25 °C; 65 µA max @25 °C
– Stop (Flash in Deep power down mode, slow wakeup time): down to 10 µA typ@ 25 °C; 28 µA max @25 °C
– Standby: 2.4 µA @25 °C / 1.7 V without RTC; 12 µA @85 °C @1.7 V
– VBAT supply for RTC: 1 µA @25 °C
• 1×12-bit, 2.4 MSPS A/D converter: up to 16 channels
• General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
• Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer • Debug mode – Serial wire debug (SWD) & JTAG interfaces – Cortex®-M4 Embedded Trace Macrocell™
• Up to 81 I/O ports with interrupt capability
– All IO ports 5 V tolerant
– Up to 78 fast I/Os up to 42 MHz
• Up to 11 communication interfaces
– Up to 3 × I2C interfaces (1Mbit/s, SMBus/PMBus)
– Up to 3 USARTs (2 x 10.5 Mbit/s, 1 x 5.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control)
– Up to 4 SPIs (up to 42 Mbits/s at fCPU = 84 MHz), SPI2 and SPI3 with muxed fullduplex I2S to achieve audio class accuracy via internal audio PLL or external clock
– SDIO interface
• Advanced connectivity
– USB 2.0 full-speed device/host/OTG controller with on-chip PHY
• CRC calculation unit
• 96-bit unique ID
• RTC: subsecond accuracy, hardware calendar
• All packages are ECOPACK2
