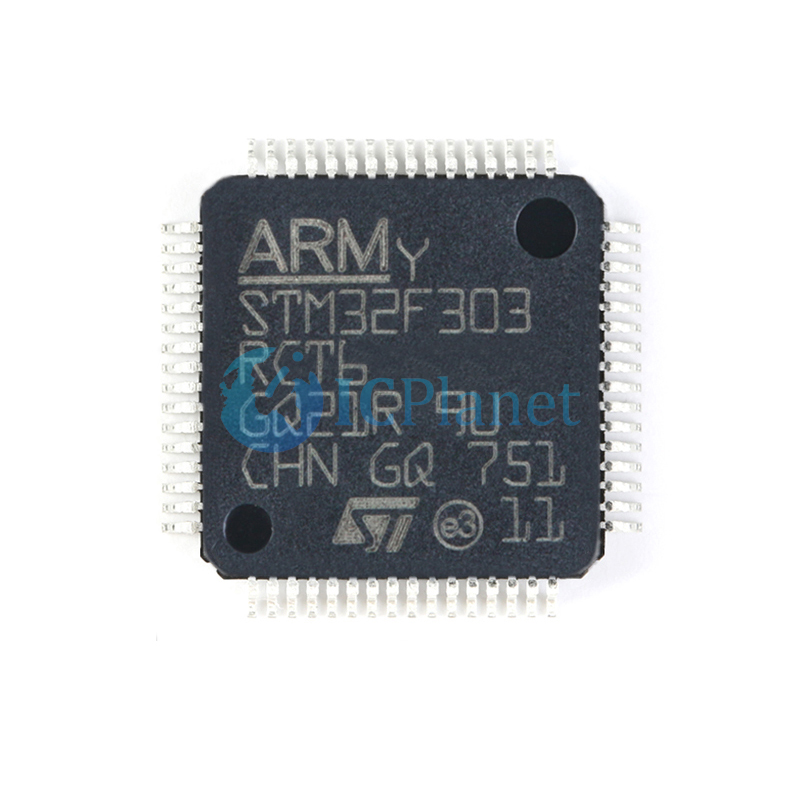

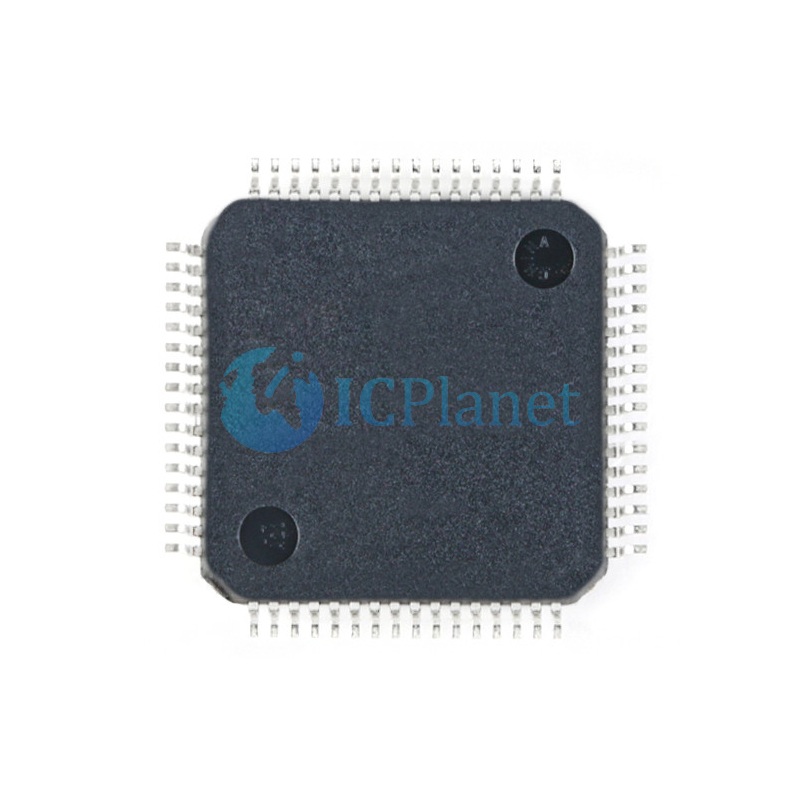

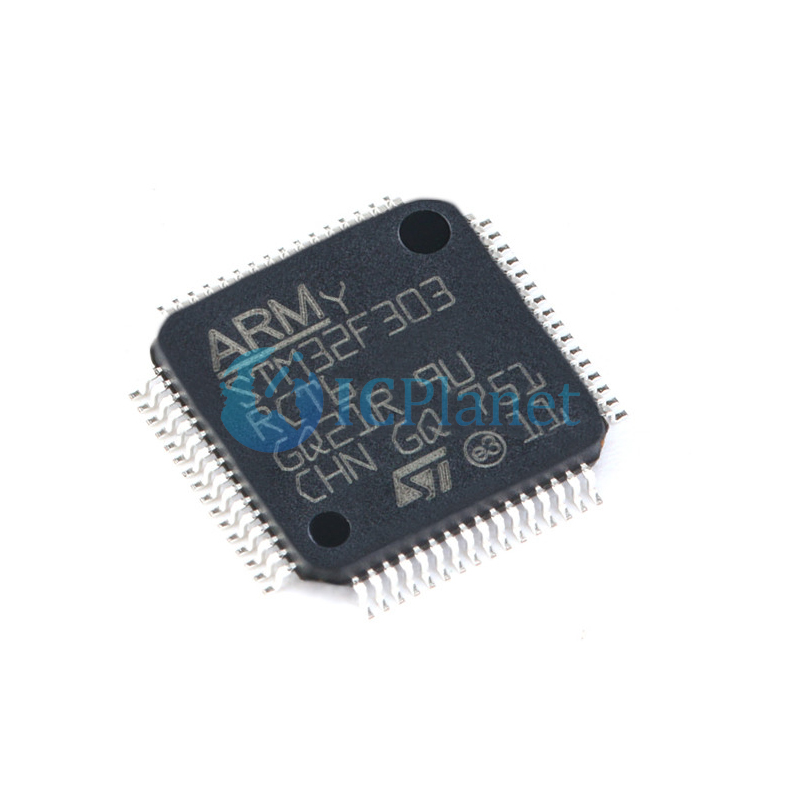

STM32F303RCT6
STMicroelectronics
ICPlanet
ARM® Cortex®-M4 series Microcontroller IC 32-Bit 72MHz 256KB (256K x 8) FLASH 64-LQFP (10x10)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32F3 |

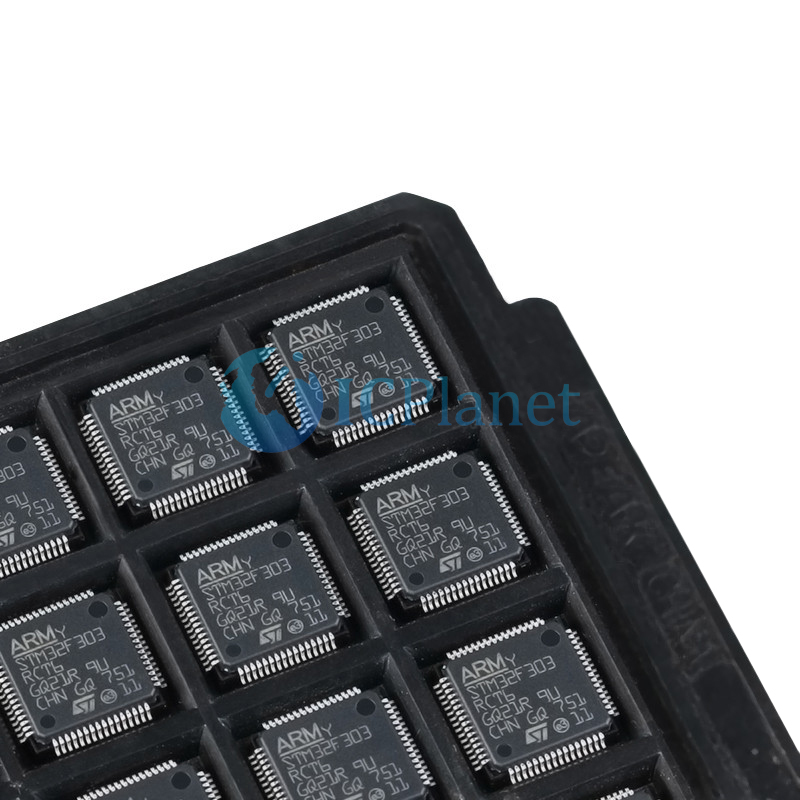

Package | Tray |
Part Status | Active |
Core Processor | ARM® Cortex®-M4 |
Core Size | 32-Bit |
Speed | 72MHz |
Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
Peripherals | DMA, I²S, POR, PWM, WDT |
Number of I/O | 52 |
Program Memory Size | 256KB (256K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 40K x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
Data Converters | A/D 22x12b; D/A 2x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 64-LQFP |
Supplier Device Package | 64-LQFP (10x10) |
• Core: Arm® Cortex®-M4 32-bit CPU with FPU (72 MHz max), single-cycle multiplication and HW division, 90 DMIPS (from CCM), DSP instruction and MPU (memory protection unit)
• Operating conditions:
– VDD, VDDA voltage range: 2.0 V to 3.6 V
• Memories
– 128 to 256 Kbytes of Flash memory
– Up to 40 Kbytes of SRAM, with HW parity check implemented on the first 16 Kbytes.
– Routine booster: 8 Kbytes of SRAM on instruction and data bus, with HW parity check (CCM)
• CRC calculation unit
• Reset and supply management
– Power-on/power-down reset (POR/PDR)
– Programmable voltage detector (PVD)
– Low-power modes: Sleep, Stop and Standby
– VBAT supply for RTC and backup registers
• Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x 16 PLL option
– Internal 40 kHz oscillator
• Up to 87 fast I/Os
– All mappable on external interrupt vectors
– Several 5 V-tolerant • Interconnect matrix
• 12-channel DMA controller
• Four ADCs 0.20 µS (up to 39 channels) with selectable resolution of 12/10/8/6 bits, 0 to 3.6 V conversion range, single ended/differential input, separate analog supply from 2 to 3.6 V
• Two 12-bit DAC channels with analog supply from 2.4 to 3.6 V
• Seven fast rail-to-rail analog comparators with analog supply from 2 to 3.6 V
• Four operational amplifiers that can be used in PGA mode, all terminals accessible with analog supply from 2.4 to 3.6 V
• Up to 24 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
• Up to 13 timers
– One 32-bit timer and two 16-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
– Two 16-bit 6-channel advanced-control timers, with up to 6 PWM channels, deadtime generation and emergency stop
– One 16-bit timer with 2 IC/OCs, 1 OCN/PWM, deadtime generation and emergency stop
– Two 16-bit timers with IC/OC/OCN/PWM, deadtime generation and emergency stop
– Two watchdog timers (independent, window)
– SysTick timer: 24-bit downcounter
– Two 16-bit basic timers to drive the DAC
• Calendar RTC with Alarm, periodic wakeup from Stop/Standby
• Communication interfaces
– CAN interface (2.0B Active)
– Two I2C Fast mode plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, wakeup from STOP
– Up to five USART/UARTs (ISO 7816 interface, LIN, IrDA, modem control)
– Up to three SPIs, two with multiplexed half/full duplex I2S interface, 4 to 16 programmable bit frames
– USB 2.0 full speed interface
– Infrared transmitter
• Serial wire debug, Cortex®-M4 with FPU ETM, JTAG
• 96-bit unique ID
