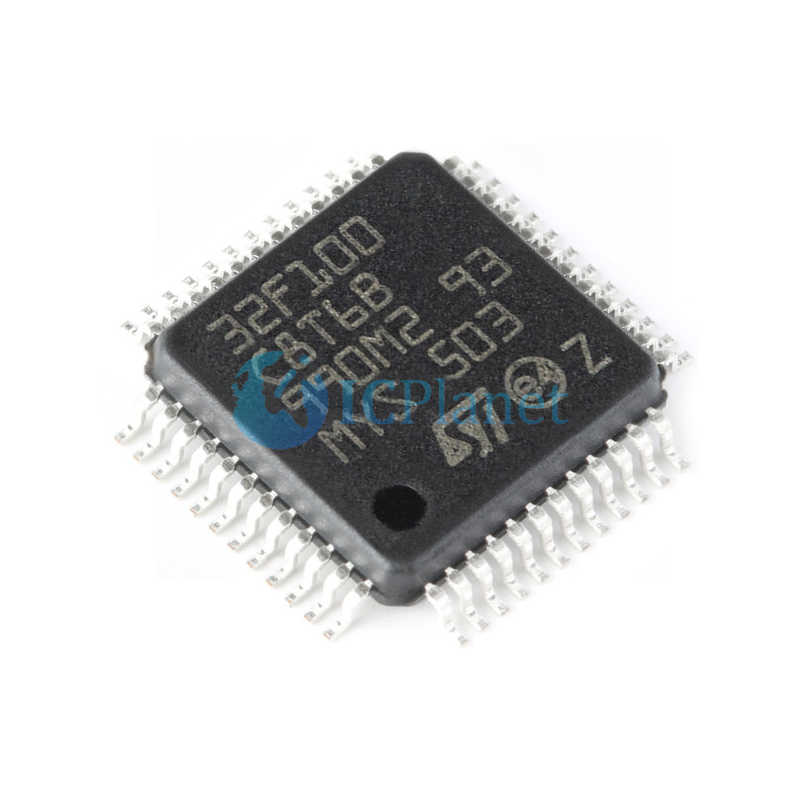

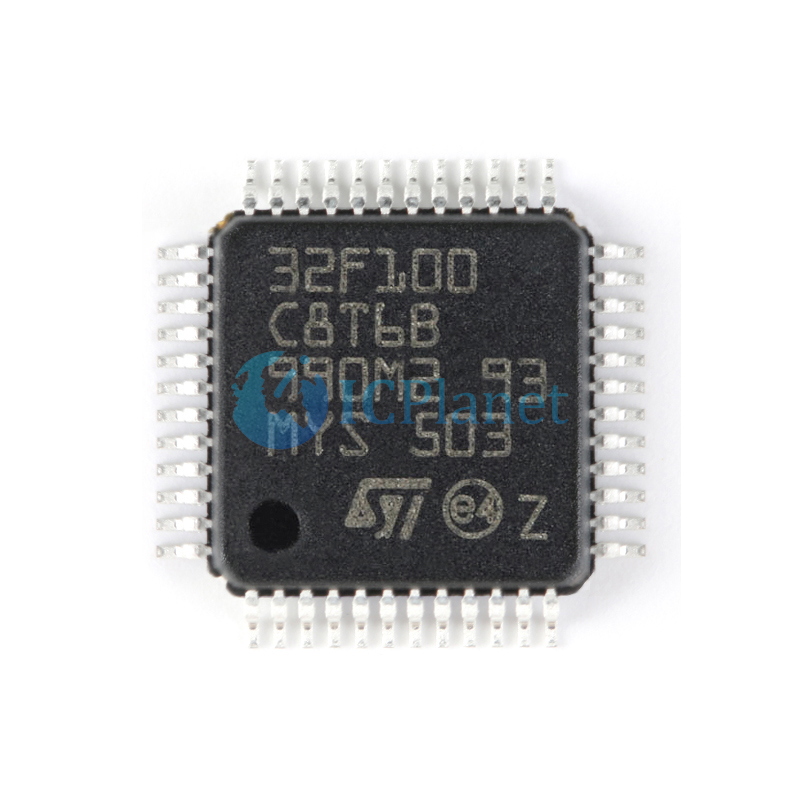

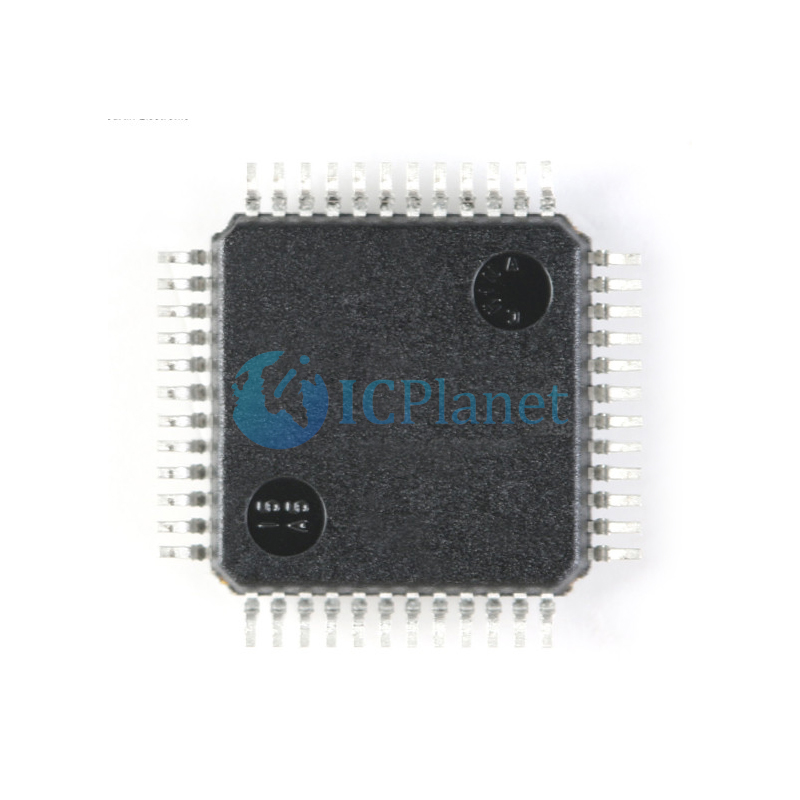

STM32F100C8T6B
STMicroelectronics
ICPlanet
ARM® Cortex®-M3 series Microcontroller IC 32-Bit 24MHz 64KB (64K x 8) FLASH
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32F1 |
Package | Tray |
Part Status | Active |
Core Processor | ARM® Cortex®-M3 |
Core Size | 32-Bit |
Speed | 24MHz |
Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
Number of I/O | 37 |
Program Memory Size | 64KB (64K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 8K x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
Data Converters | A/D 10x12b; D/A 2x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 48-LQFP |
Introduction
This datasheet provides the ordering information and mechanical device characteristics of the STM32F100x4, STM32F100x6, STM32F100x8 and STM32F100xB microcontrollers.
In the rest of the document, the STM32F100x4 and STM32F100x6 are referred to as lowdensity devices while the STM32F100x8 and STM32F100xB are identified as mediumdensity devices.
This STM32F100xx datasheet should be read in conjunction with the low- and mediumdensity STM32F100xx reference manual. For information on programming, erasing and protection of the internal Flash memory please refer to the STM32F100xx Flash programming manual. The reference and Flash programming manuals are both available from the STMicroelectronics website .
For information on the Cortex®-M3 core please refer to the Cortex®-M3 Technical Reference Manual, available from the www.arm.com website at the following address:http://infocenter.arm.com
Description
The STM32F100x4, STM32F100x6, STM32F100x8 and STM32F100xB microcontrollers incorporate the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses. All devices offer standard communication interfaces (up to two I2Cs, two SPIs, one HDMI CEC, and up to three USARTs), one 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers and an advanced-control PWM timer.
The STM32F100xx low- and medium-density devices operate in the – 40 to + 85 °C and – 40 to + 105 °C temperature ranges, from a 2.0 to 3.6 V power supply.
A comprehensive set of power-saving mode allows the design of low-power applications.
These microcontrollers include devices in three different packages ranging from 48 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included.
These features make these microcontrollers suitable for a wide range of applications such as application control and user interfaces, medical and hand-held equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
Features
• Core: ARM® 32-bit Cortex®-M3 CPU
– 24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
– Single-cycle multiplication and hardware division
• Memories
– 16 to 128 Kbytes of Flash memory
– 4 to 8 Kbytes of SRAM
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage detector (PVD)
– 4-to-24 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• Debug mode – Serial wire debug (SWD) and JTAG interfaces
• DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs, I 2Cs, USARTs and DACs
• 1 × 12-bit, 1.2 µs A/D converter (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
• 2 × 12-bit D/A converters
• Up to 80 fast I/O ports
– 37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
• Up to 12 timers
– Up to three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter
– 16-bit, 6-channel advanced-control timer: up to 6 channels for PWM output, dead time generation and emergency stop
– One 16-bit timer, with 2 IC/OC, 1 OCN/PWM, dead-time generation and emergency stop
– Two 16-bit timers, each with IC/OC/OCN/PWM, dead-time generation and emergency stop
– 2 watchdog timers (Independent and Window)
– SysTick timer: 24-bit downcounter
– Two 16-bit basic timers to drive the DAC
• Up to 8 communications interfaces
– Up to two I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
– Up to 2 SPIs (12 Mbit/s)
– Consumer electronics control (CEC) interface
• CRC calculation unit, 96-bit unique ID
• ECOPACK® packages
