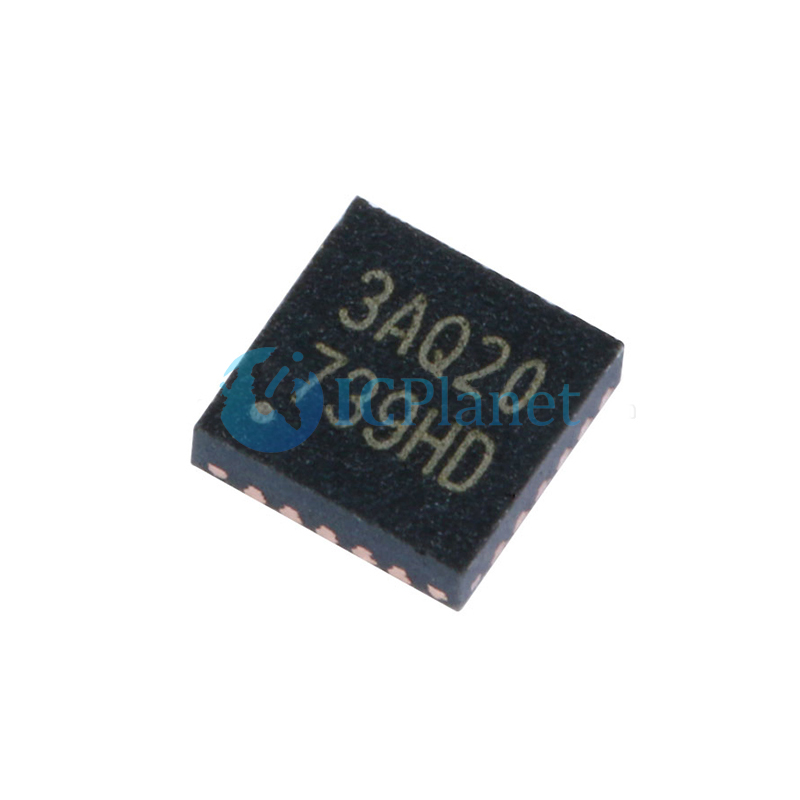

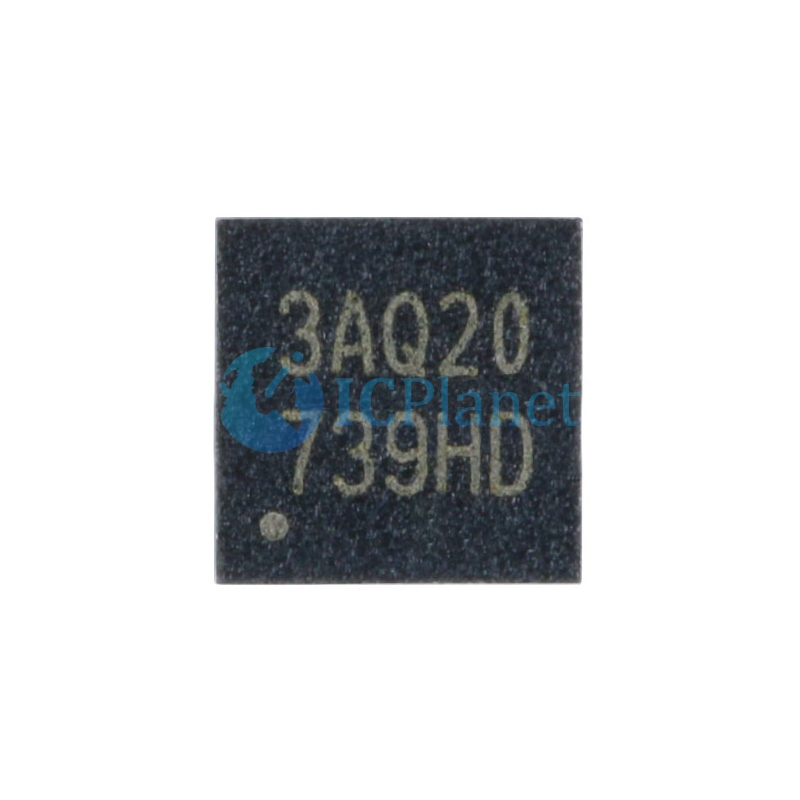

| IC MCU 8BIT 18KB FLASH 20QFN |
N76E003AQ20
Nuvoton Technology Corporation of America
ICPlanet
8051 series Microcontroller IC 8-Bit 16MHz 18KB (18K x 8) FLASH 20-QFN (3x3)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Nuvoton Technology Corporation of America |
Series | N76 |

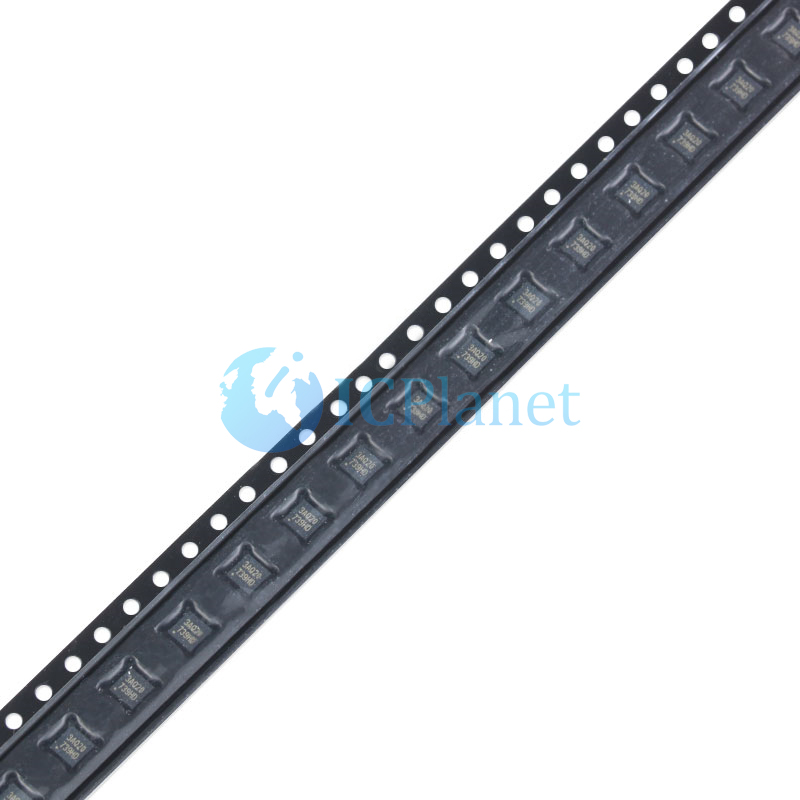

Package | Tape & Reel (TR) |
Part Status | Active |
Core Processor | 8051 |
Core Size | 8-Bit |
Speed | 16MHz |
Connectivity | I²C, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, I²S, POR, PWM, WDT |
Number of I/O | 18 |
Program Memory Size | 18KB (18K x 8) |
Program Memory Type | FLASH |
EEPROM Size | 4K x 8 |
RAM Size | 1K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
Data Converters | A/D 8x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 105°C (TA) |
Mounting Type | Surface Mount |

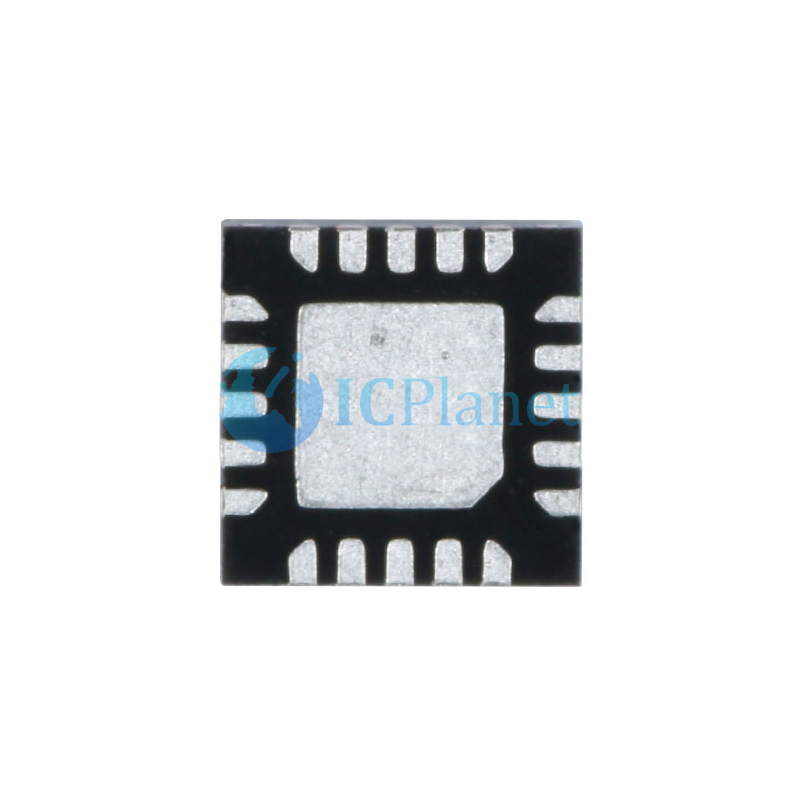

Package / Case | 20-WFQFN Exposed Pad |
Supplier Device Package | 20-QFN (3x3) |
