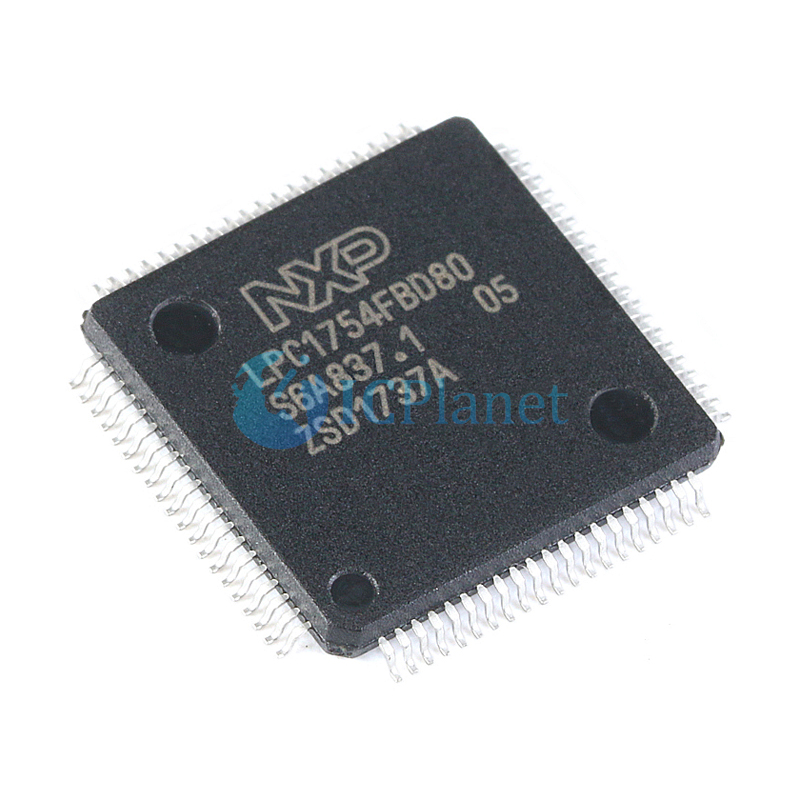

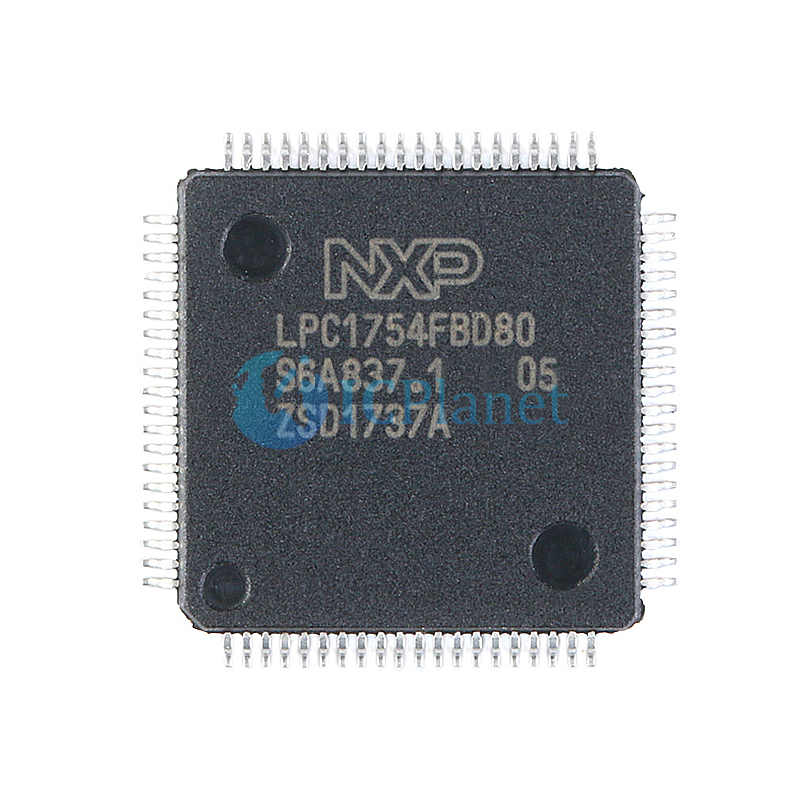

LPC1754FBD80,551
NXP USA Inc.
ICPlanet
ARM® Cortex®-M3 series Microcontroller IC 32-Bit 100MHz 128KB (128K x 8) FLASH 80-LQFP (12x12)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | NXP USA Inc. |
Series | LPC17xx |

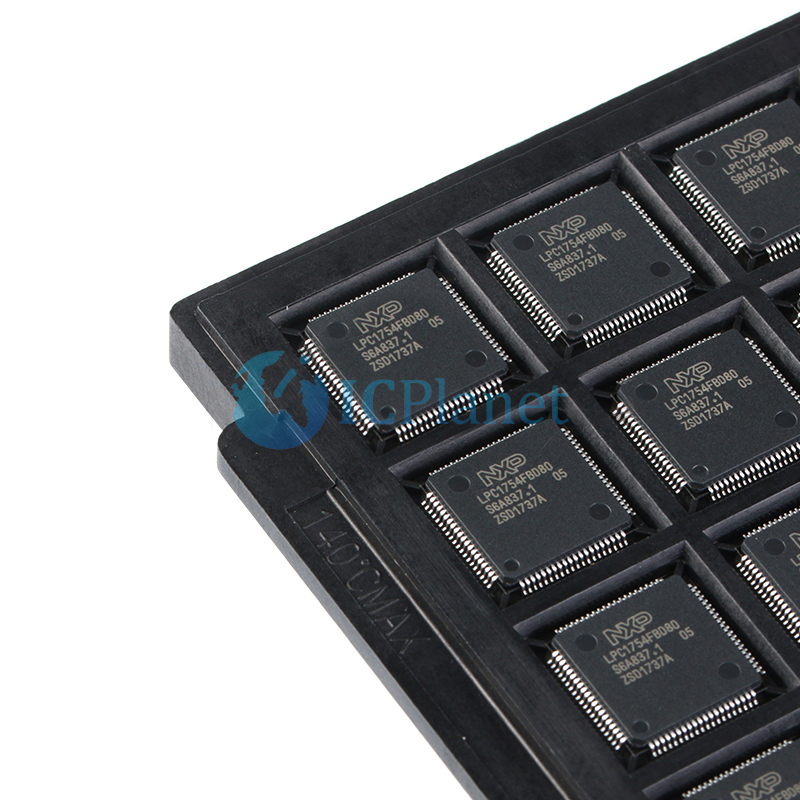

Package | Tray |
Core Processor | ARM® Cortex®-M3 |
Core Size | 32-Bit |
Speed | 100MHz |
Connectivity | CANbus, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG |
Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
Number of I/O | 52 |
Program Memory Size | 128KB (128K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 32K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
Data Converters | A/D 6x12b; D/A 1x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 80-LQFP |
Supplier Device Package | 80-LQFP (12x12) |
