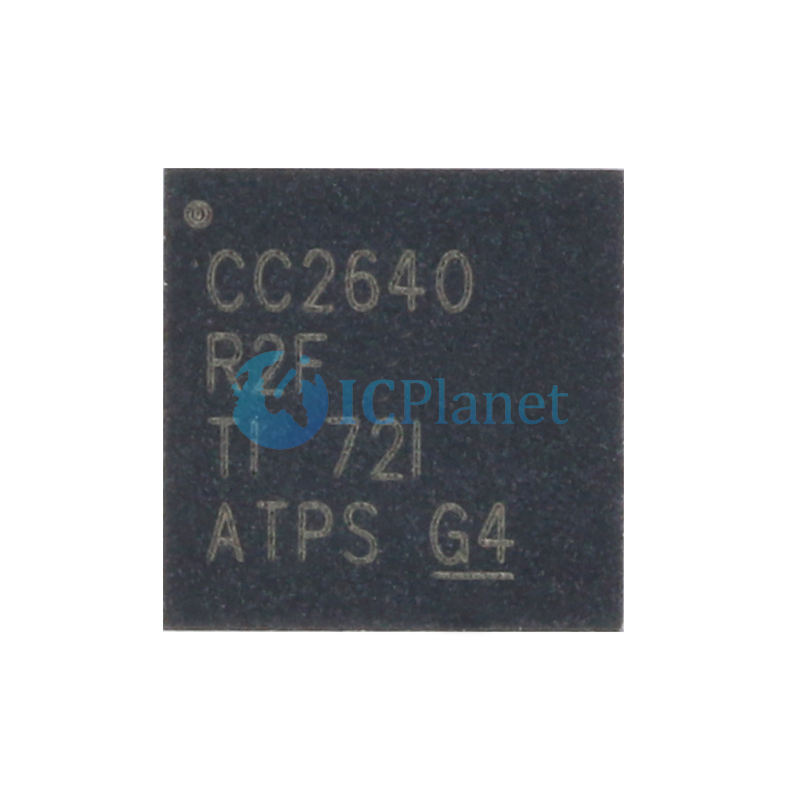

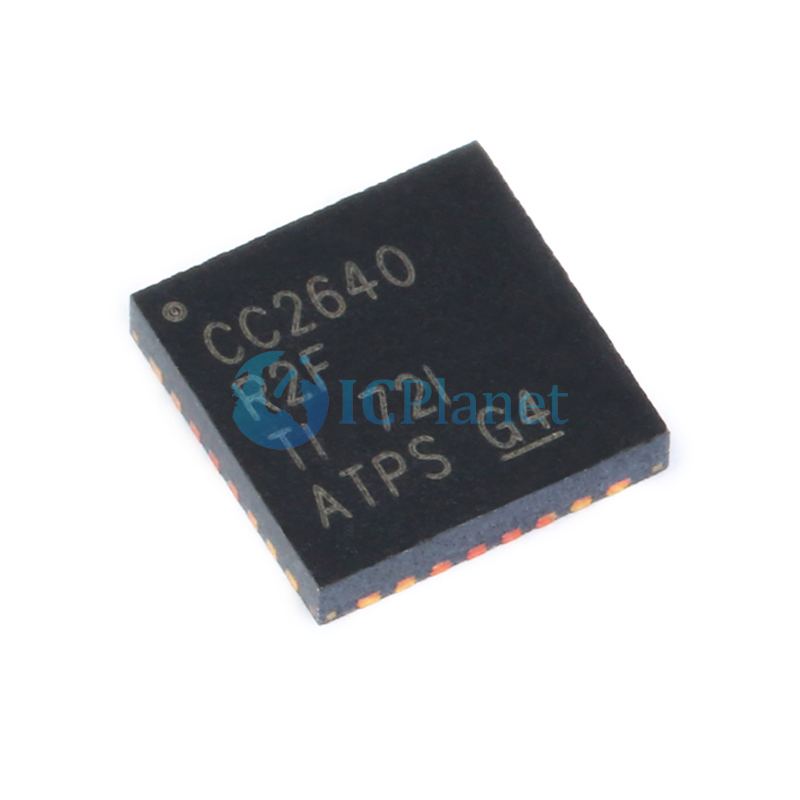

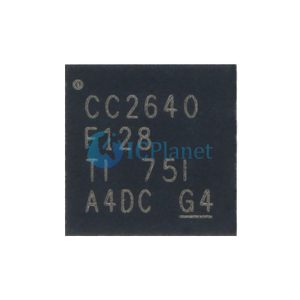

CC2640R2FRHBT
Texas Instruments
ICPlanet
IC RF TxRx + MCU Bluetooth Bluetooth v5.1 2.4GHz 32-VFQFN Exposed Pad
Encapsulation: | |
---|---|
SKU: | |
Availability: | |
Quantity: | |
PDF Export | |
TYPE | DESCRIPTION |
---|---|
Category | RF/IF and RFID RF Transceiver ICs |
Mfr | Texas Instruments |
Series | SimpleLink™ |

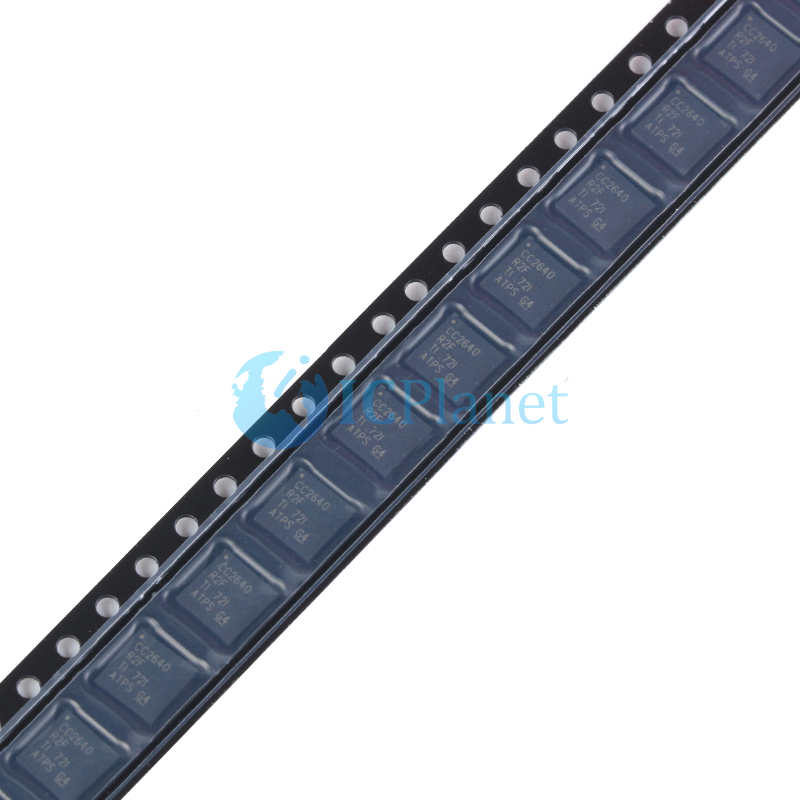

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | TxRx + MCU |
RF Family/Standard | Bluetooth |
Protocol | Bluetooth v5.1 |
Modulation | GFSK |
Frequency | 2.4GHz |
Data Rate (Max) | 2Mbps |
Power - Output | 5dBm |
Sensitivity | -97dBm |
Memory Size | 128kB Flash, 20kB RAM |
Serial Interfaces | I²C, I²S, SPI, UART |
GPIO | 15 |
Voltage - Supply | 1.8V ~ 3.8V |
Current - Receiving | 5.9mA |
Current - Transmitting | 9.1mA |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |

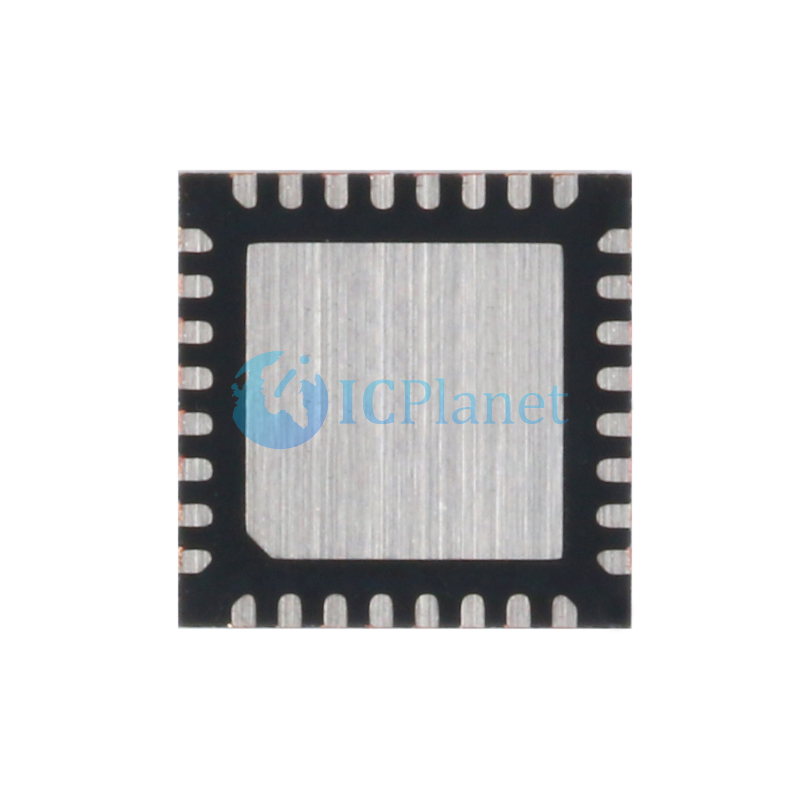

Package / Case | 32-VFQFN Exposed Pad |
Supplier Device Package | 32-VQFN (5x5) |
• Microcontroller
– Powerful Arm® Cortex®-M3
– EEMBC CoreMark® score: 142
– Up to 48-MHz clock speed
– 275KB of nonvolatile memory including 128KB of in-system Programmable Flash
– Up to 28KB of system SRAM, of which 20KB is ultra-low leakage SRAM
– 8KB of SRAM for cache or system RAM use
– 2-Pin cJTAG and JTAG debugging
– Supports over-the-air upgrade (OTA)
• Ultra-low power sensor controller
– Can run autonomous from the rest of the system
– 16-bit architecture
– 2KB of ultra-low leakage SRAM for code and data
• Efficient code size architecture, placing drivers, TI-RTOS, and Bluetooth® software in ROM to make more Flash available for the application
• RoHS-compliant packages
– 2.7-mm × 2.7-mm YFV DSBGA34 (14 GPIOs)
– 4-mm × 4-mm RSM VQFN32 (10 GPIOs)
– 5-mm × 5-mm RHB VQFN32 (15 GPIOs)
– 7-mm × 7-mm RGZ VQFN48 (31 GPIOs)
• Peripherals – All digital peripheral pins can be routed to any GPIO
– Four general-purpose timer modules (eight 16-bit or four 32-bit timers, PWM each)
– 12-bit ADC, 200-ksamples/s, 8-channel analog MUX
– Continuous time comparator
– Ultra-low power analog comparator
– Programmable current source
– UART, I2C, and I2S
– 2× SSI (SPI, MICROWIRE, TI)
– Real-Time Clock (RTC)
– AES-128 security module
– True Random Number Generator (TRNG)
– Support for eight capacitive-sensing buttons
– Integrated temperature sensor
• External system
– On-chip internal DC/DC converter
– Seamless integration with CC2590 and CC2592 range extenders
– Very few external components
– Pin compatible with the SimpleLink™ CC2640 and CC2650 devices in all VQFN packages
– Pin compatible with the SimpleLink™ CC2642R and CC2652R devices in 7-mm x 7-mm VQFN packages
– Pin compatible with the SimpleLink™ CC1350 device in 4-mm × 4-mm and 5-mm × 5-mm VQFN packages
• Low power
– Wide supply voltage range
• Normal operation: 1.8 to 3.8 V
• External regulator mode: 1.7 to 1.95 V
– Active-Mode RX: 5.9 mA
– Active-Mode TX at 0 dBm: 6.1 mA
– Active-Mode TX at +5 dBm: 9.1 mA
– Active-Mode MCU: 61 µA/MHz
– Active-Mode MCU: 48.5 CoreMark/mA
– Active-Mode sensor controller: 0.4mA + 8.2 µA/MHz
– Standby: 1.1 µA (RTC running and RAM/CPU retention)
– Shutdown: 100 nA (wake up on external events)
• RF section
– 2.4-GHz RF transceiver compatible with Bluetooth® Low Energy 5.1 and earlier LE specifications
– Excellent receiver sensitivity (–97 dBm for BLE), selectivity, and blocking performance
– Link budget of 102 dB for BLE
– Programmable output power up to +5 dBm
– Single-ended or differential RF interface
– Suitable for systems targeting compliance with worldwide radio frequency regulations
• ETSI EN 300 328 (Europe)
• EN 300 440 Class 2 (Europe)
• FCC CFR47 Part 15 (US)
• ARIB STD-T66 (Japan)
Description
The CC2640R2F device is a 2.4 GHz wireless microcontroller (MCU) supporting Bluetooth® 5.1 Low Energy and Proprietary 2.4 GHz applications. The device is optimized for low-power wireless communication and advanced sensing in building security systems, HVAC, asset tracking, and medical markets, and applications where industrial performance is required. The highlighted features of this device include:
• Support for Bluetooth ® 5.1 features: LE Coded PHYs (Long Range), LE 2-Mbit PHY (High Speed), Advertising Extensions, Multiple Advertisement Sets, as well as backwards compatibility and support for key features from the Bluetooth ® 5.0 and earlier Low Energy specifications.
• Fully-qualified Bluetooth ® 5.1 software protocol stack included with the SimpleLink™ CC2640R2F Software Development Kit (SDK) for developing applications on the powerful Arm® Cortex®-M3 processor.
• Longer battery life wireless applications with low standby current of 1.1 µA with full RAM retention.
• Advanced sensing with a programmable, autonomous ultra-low power Sensor Controller CPU with fast wakeup capability. As an example, the sensor controller is capable of 1-Hz ADC sampling at 1 µA system current.
• Dedicated software controlled radio controller (Arm® Cortex®-M0) providing flexible low-power RF transceiver capability to support multiple physical layers and RF standards, such as real-time localization (RTLS) technologies.
• Excellent radio sensitivity and robustness (selectivity and blocking) performance for Bluetooth ® Low Energy (-103 dBm for 125-kbps LE Coded PHY).
The CC2640R2F device is part of the SimpleLink™ microcontroller (MCU) platform, which consists of Wi-Fi®, Bluetooth ® Low Energy, Thread, ZigBee®, Sub-1 GHz MCUs, and host MCUs that all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change. For more information, visit SimpleLink™ MCU platform.
