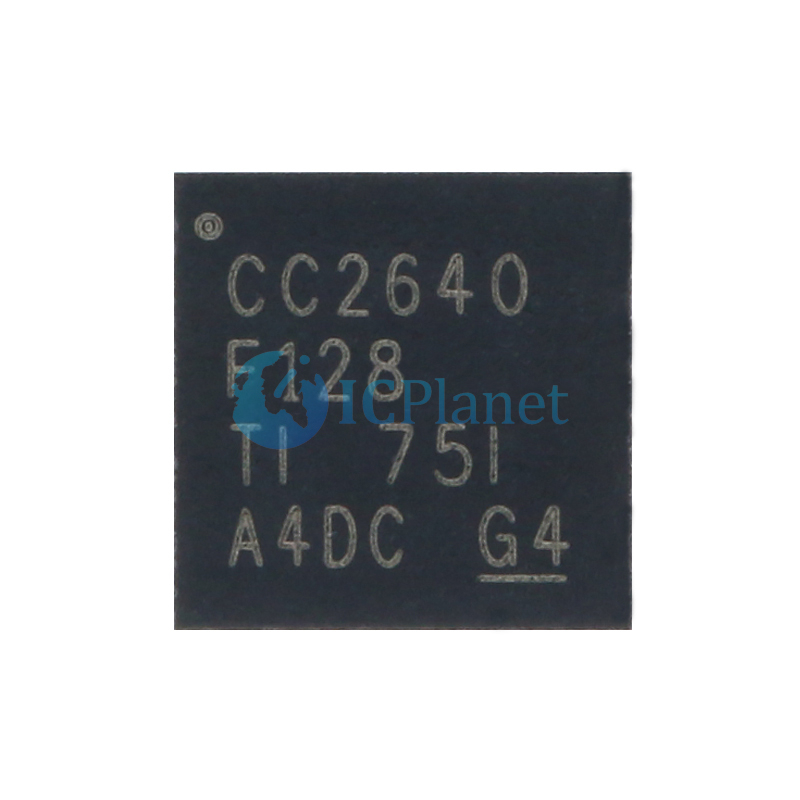

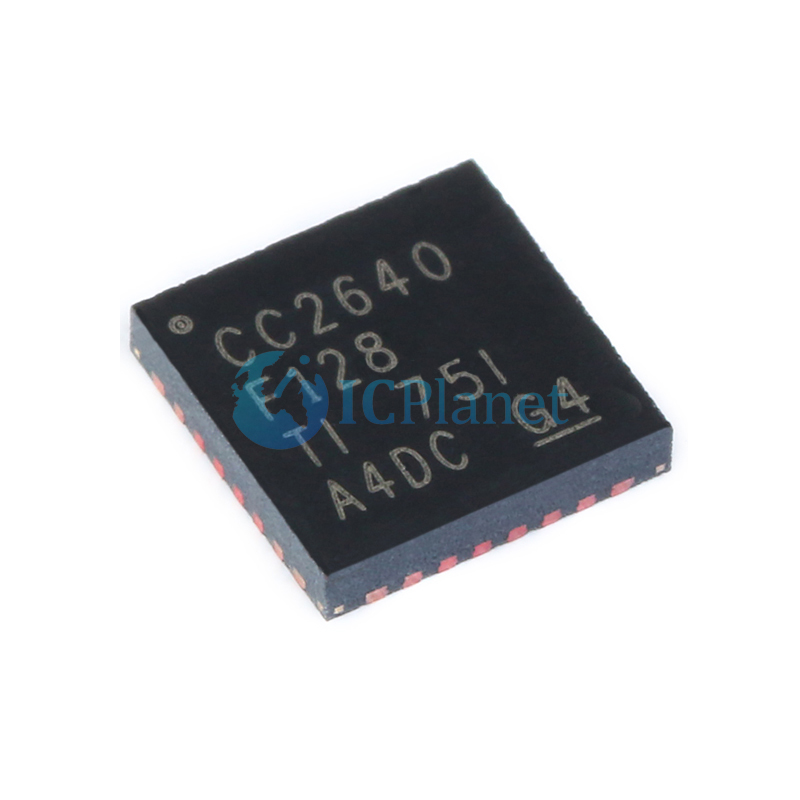

| IC RF TXRX+MCU BLE 5.1 32VQFN |
CC2640F128RHBT
Texas Instruments
ICPlanet
IC RF TxRx + MCU Bluetooth Bluetooth v5.1 2.4GHz 32-VFQFN Exposed Pad
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | RF/IF and RFID RF Transceiver ICs |
Mfr | Texas Instruments |
Series | SimpleLink™ |

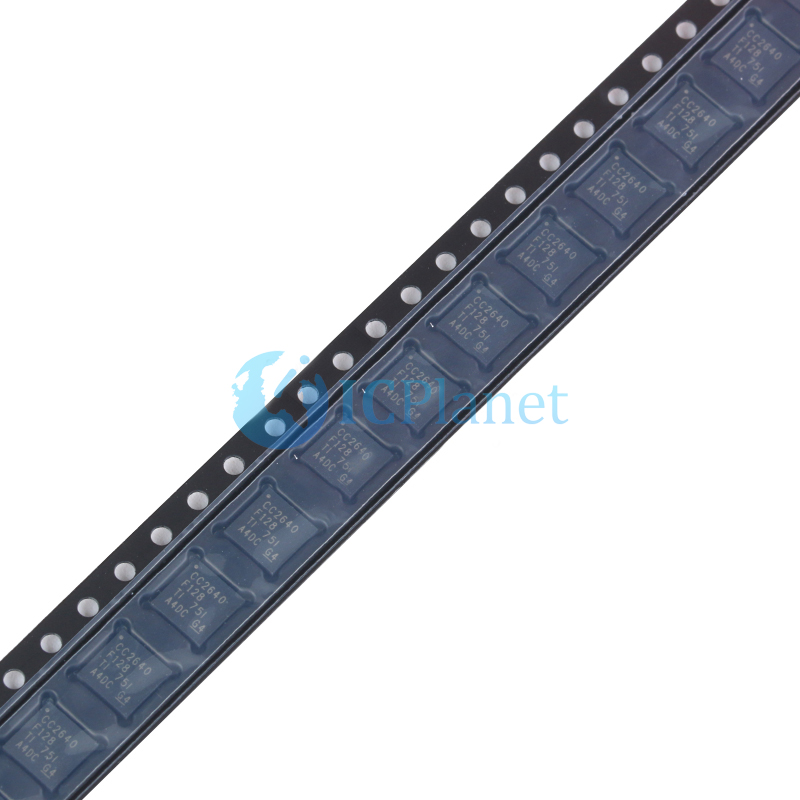

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | TxRx + MCU |
RF Family/Standard | Bluetooth |
Protocol | Bluetooth v5.1 |
Modulation | DSSS, O-QPSK, GFSK |
Frequency | 2.4GHz |
Data Rate (Max) | 1Mbps |
Power - Output | 5dBm |
Sensitivity | -97dBm |
Memory Size | 128kB Flash, 28kB SRAM |
Serial Interfaces | I²C, I²S, JTAG, SPI, UART |
GPIO | 15 |
Voltage - Supply | 1.8V ~ 3.8V |
Current - Receiving | 5.9mA ~ 6.1mA |
Current - Transmitting | 6.1mA ~ 9.1mA |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |

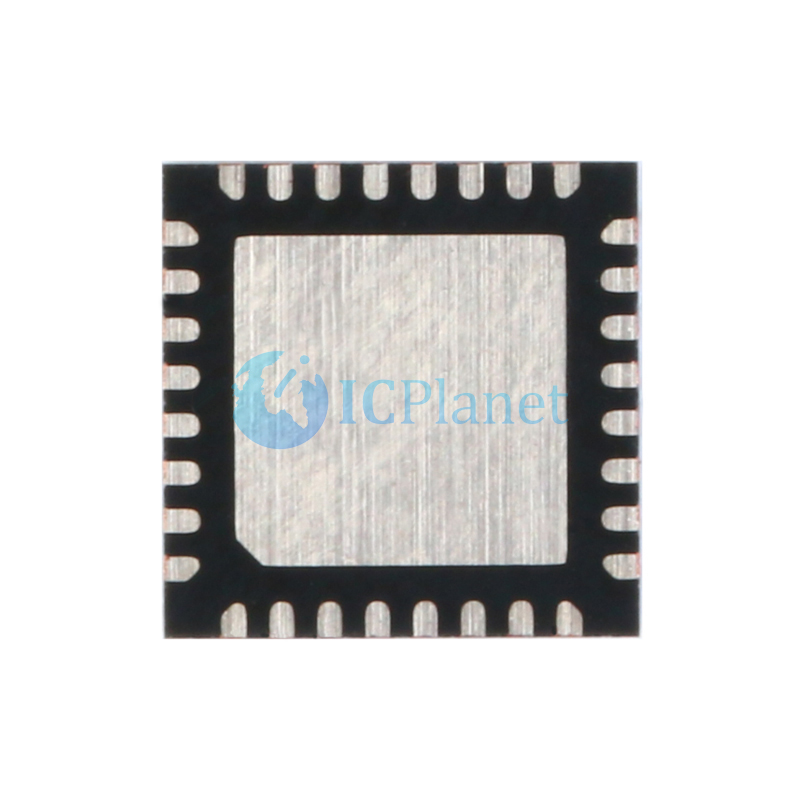

Package / Case | 32-VFQFN Exposed Pad |
Supplier Device Package | 32-VQFN (5x5) |
The CC2640 device is a wireless MCU targeting Bluetooth applications.
The device is a member of the CC26xx family of cost-effective, ultralow power, 2.4-GHz RF devices. Very low active RF and MCU current and low-power mode current consumption provide excellent battery lifetime and allow for operation on small coin cell batteries and in energy-harvesting applications.
The CC2640 device contains a 32-bit ARM Cortex-M3 processor that runs at 48 MHz as the main processor and a rich peripheral feature set that includes a unique ultralow power sensor controller. This sensor controller is ideal for interfacing external sensors and for collecting analog and digital data autonomously while the rest of the system is in sleep mode. Thus, the CC2640 device is ideal for a wide range of applications where long battery lifetime, small form factor, and ease of use is important.
The Bluetooth Low Energy controller is embedded into ROM and runs partly on an ARM Cortex-M0 processor. This architecture improves overall system performance and power consumption and frees up flash memory for the application.
Features
• Microcontroller
– Powerful ARM® Cortex® -M3
– EEMBC CoreMark® Score: 142
– Up to 48-MHz Clock Speed
– 128KB of In-System Programmable Flash
– 8KB of SRAM for Cache
– 20KB of Ultralow-Leakage SRAM
– 2-Pin cJTAG and JTAG Debugging
– Supports Over-The-Air Upgrade (OTA)
• Ultralow-Power Sensor Controller
– Can Run Autonomous From the Rest of the System
– 16-Bit Architecture
– 2KB of Ultralow-Leakage SRAM for Code and Data
• Efficient Code Size Architecture, Placing Drivers, Bluetooth® Low Energy Controller, and Bootloader in ROM
• RoHS-Compliant Packages
– 4-mm × 4-mm RSM VQFN32 (10 GPIOs)
– 5-mm × 5-mm RHB VQFN32 (15 GPIOs)
– 7-mm × 7-mm RGZ VQFN48 (31 GPIOs)
• Peripherals
– All Digital Peripheral Pins Can Be Routed to Any GPIO
– Four General-Purpose Timer Modules (Eight 16-Bit or Four 32-Bit Timers, PWM Each)
– 12-Bit ADC, 200-ksamples/s, 8-Channel Analog MUX
– Continuous Time Comparator
– Ultralow-Power Analog Comparator
– Programmable Current Source
– UART – 2× SSI (SPI, MICROWIRE, TI)
– I2C
– I2S
– Real-Time Clock (RTC)
– AES-128 Security Module
– True Random Number Generator (TRNG)
– 10, 15, or 31 GPIOs, Depending on Package Option
– Support for Eight Capacitive-Sensing Buttons
– Integrated Temperature Sensor
• External System
– On-Chip internal DC-DC Converter
– Very Few External Components
– Seamless Integration With the SimpleLink™ CC2590 and CC2592 Range Extenders
– Pin Compatible With the SimpleLink CC13xx in 4-mm × 4-mm and 5-mm × 5-mm VQFN Packages
• Low Power
– Wide Supply Voltage Range
• Normal Operation: 1.8 to 3.8 V
• External Regulator Mode: 1.7 to 1.95 V
– Active-Mode RX: 5.9 mA
– Active-Mode TX at 0 dBm: 6.1 mA
– Active-Mode TX at +5 dBm: 9.1 mA
– Active-Mode MCU: 61 µA/MHz
– Active-Mode MCU: 48.5 CoreMark/mA
– Active-Mode Sensor Controller: 8.2 µA/MHz
– Standby: 1 µA (RTC Running and RAM/CPU Retention)
– Shutdown: 100 nA (Wake Up on External Events)
• RF Section
– 2.4-GHz RF Transceiver Compatible With Bluetooth Low Energy (BLE) 4.2 Specification
– Excellent Receiver Sensitivity (–97 dBm for BLE), Selectivity, and Blocking Performance
– Link budget of 102 dB for BLE
– Programmable Output Power up to +5 dBm
– Single-Ended or Differential RF Interface
– Suitable for Systems Targeting Compliance With Worldwide Radio Frequency Regulations
• ETSI EN 300 328 (Europe)
• EN 300 440 Class 2 (Europe)
• FCC CFR47 Part 15 (US)
• ARIB STD-T66 (Japan)
• Tools and Development Environment
– Full-Feature and Low-Cost Development Kits
– Multiple Reference Designs for Different RF Configurations
– Packet Sniffer PC Software
– Sensor Controller Studio
– SmartRF™ Studio
– SmartRF Flash Programmer 2
– IAR Embedded Workbench® for ARM
– Code Composer Studio™
Applications
• Home and Building Automation
– Connected Appliances
– Lighting
– Locks
– Gateways
– Security Systems
• Industrial
– Logistics
– Production and Manufacturing
– Automation
– Asset Tracking and Management
– Remote Display
– Cable Replacement
– HMI
– Access Control
• Retail
– Beacons
– Advertising
– ESL and Price Tags
– Point of Sales and Payment Systems
• Health and Medical
– Thermometers
– SpO2
– Blood Glucose and Pressure Meters
– Weight Scales
– Vitals Monitoring
– Hearing Aids
• Sports and Fitness
– Activity Monitors and Fitness Trackers
– Heart Rate Monitors
– Running Sensors
– Biking Sensors
– Sports Watches
– Gym Equipment
– Team Sports Equipment
• HID
– Remote Controls
– Keyboards and Mice
– Gaming
• Accessories
– Toys
– Trackers
– Luggage Tags
– Wearables
