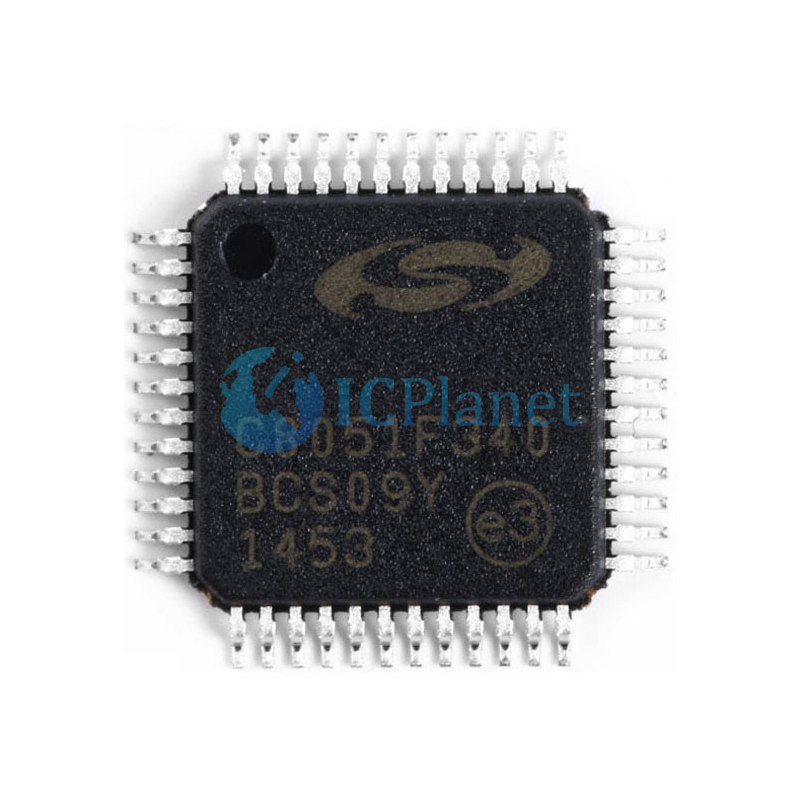

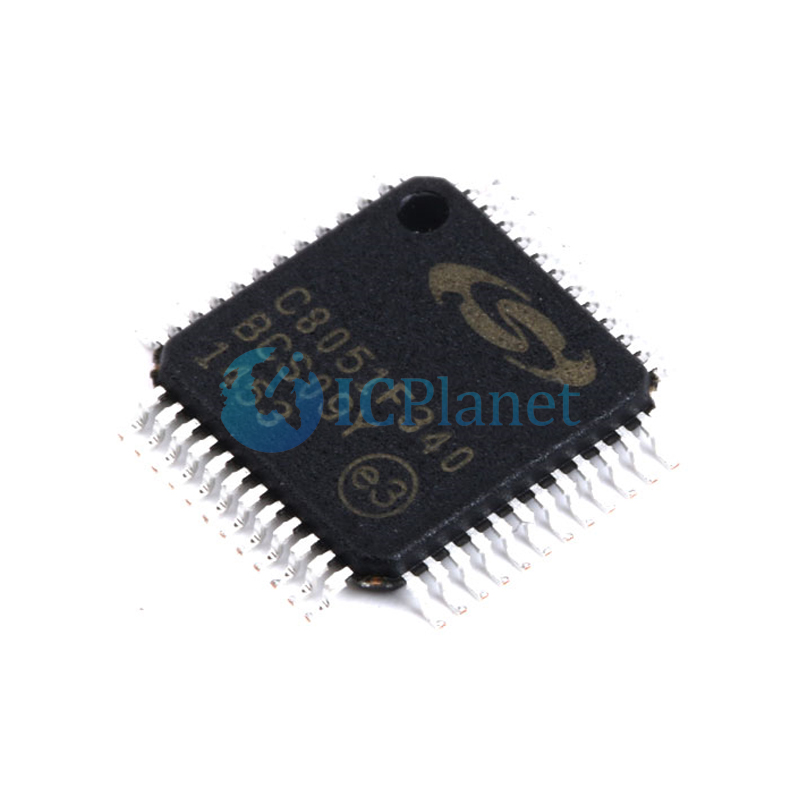

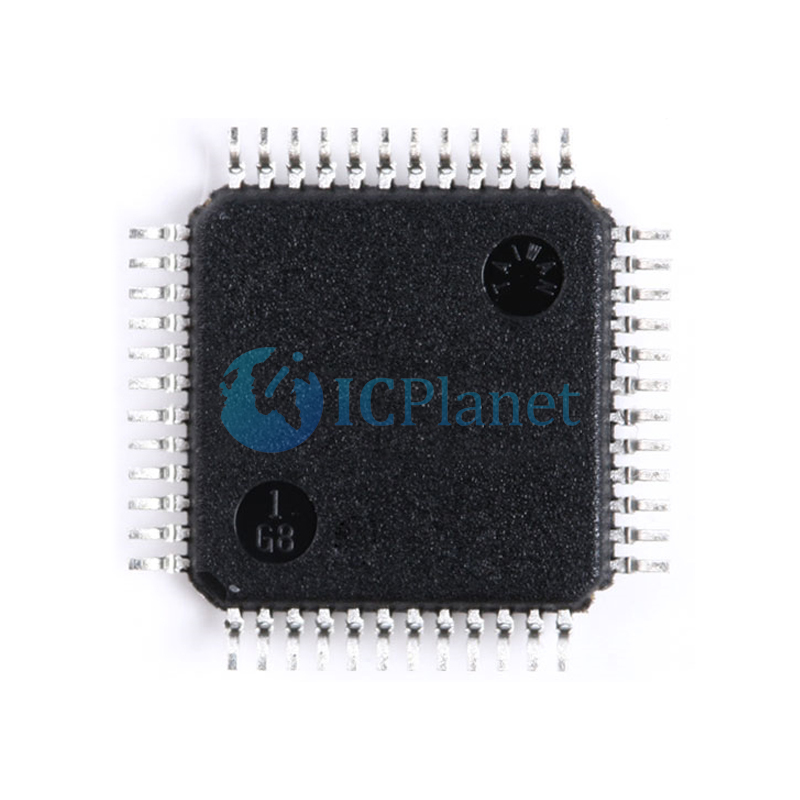

| IC MCU 8BIT 64KB FLASH 48TQFP |
C8051F340-GQR
STMicroelectronics
ICPlanet
8051 series Microcontroller IC 8-Bit 48MHz 64KB (64K x 8) FLASH 48-TQFP (7x7)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Silicon Labs |
Series | C8051F34x |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Not For New Designs |
Core Processor | 8051 |
Core Size | 8-Bit |
Speed | 48MHz |
Connectivity | EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART, USB |
Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
Number of I/O | 40 |
Program Memory Size | 64KB (64K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 4.25K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
Data Converters | A/D 20x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 48-TQFP |
Supplier Device Package | 48-TQFP (7x7) |
Analog Peripherals
- 10-Bit ADC (C8051F340/1/2/3/4/5/6/7/A/B only)
• Up to 200 ksps
• Built-in analog multiplexer with single-ended and differential mode
• VREF from external pin, internal reference, or VDD
• Built-in temperature sensor
• External conversion start input option
- Two comparators
- Internal voltage reference (C8051F340/1/2/3/4/5/6/7/A/B only)
- Brown-out detector and POR Circuitry
USB Function Controller
- USB specification 2.0 compliant
- Full speed (12 Mbps) or low speed (1.5 Mbps) operation
- Integrated clock recovery; no external crystal required for full speed or low speed
- Supports eight flexible endpoints
- 1 kB USB buffer memory
- Integrated transceiver; no external resistors required
On-Chip Debug
- On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (No emulator required)
- Provides breakpoints, single stepping, inspect/modify memory and registers
- Superior performance to emulation systems using ICE-chips, target pods, and sockets
Voltage Supply Input: 2.7 to 5.25 V
- Voltages from 3.6 to 5.25 V supported using On-Chip Voltage Regulator
HIgh Speed 8051 µC Core
- Pipelined instruction architecture; executes 70% of Instructions in 1 or 2 system clocks
- 48 MIPS and 25 MIPS versions available.
- Expanded interrupt handler
Memory
- 4352 or 2304 Bytes RAM
- 64 or 32 kB Flash; In-system programmable in 512-byte sectors
Digital Peripherals
- 40/25 Port I/O; All 5 V tolerant with high sink current
- Hardware enhanced SPI™, SMBus™, and one or two enhanced UART serial ports
- Four general purpose 16-bit counter/timers
- 16-bit programmable counter array (PCA) with five capture/compare modules
- External Memory Interface (EMIF)
Clock Sources
- Internal Oscillator: ±0.25% accuracy with clock recovery enabled. Supports all USB and UART modes
- External Oscillator: Crystal, RC, C, or clock (1 or 2 Pin modes)
- Low Frequency (80 kHz) Internal Oscillator
- Can switch between clock sources on-the-fly
Packages
- 48-pin TQFP (C8051F340/1/4/5/8/C)
- 32-pin LQFP (C8051F342/3/6/7/9/A/B/D)
- 5x5 mm 32-pin QFN (C8051F342/3/6/7/9/A/B)
Temperature Range: –40 to +85 °C
