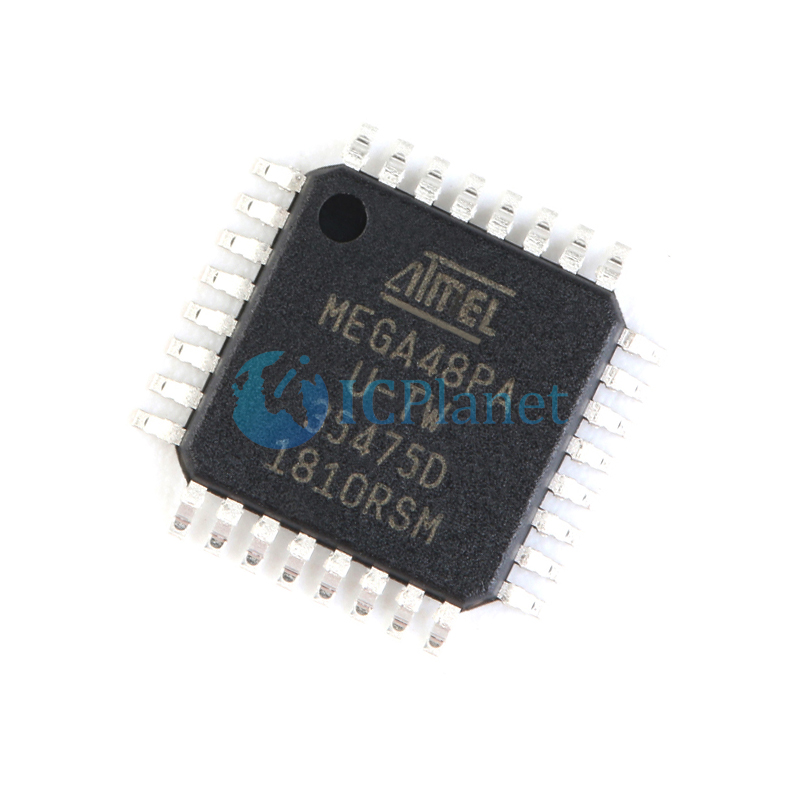

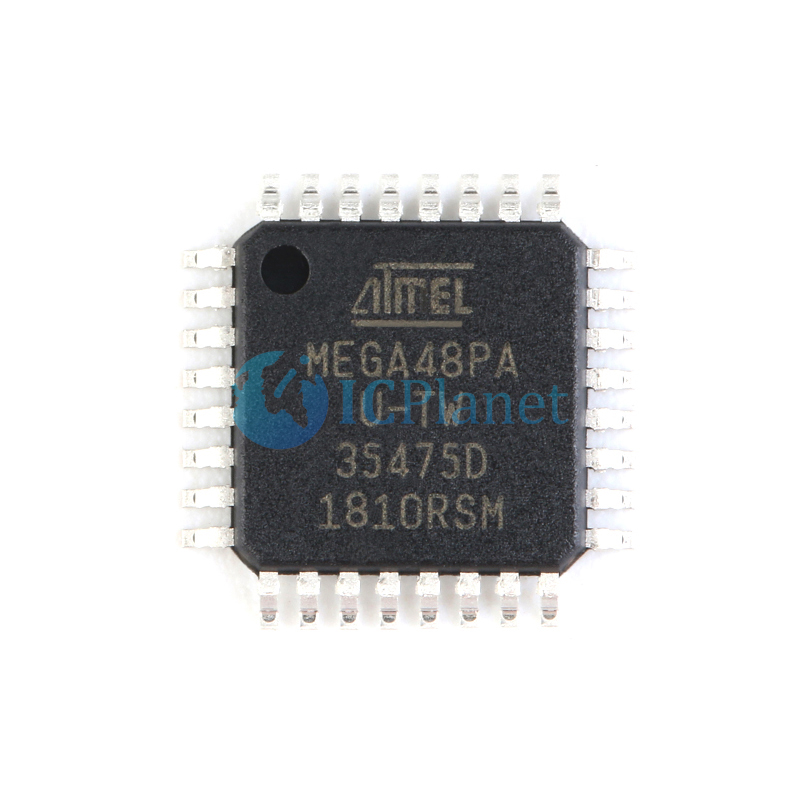

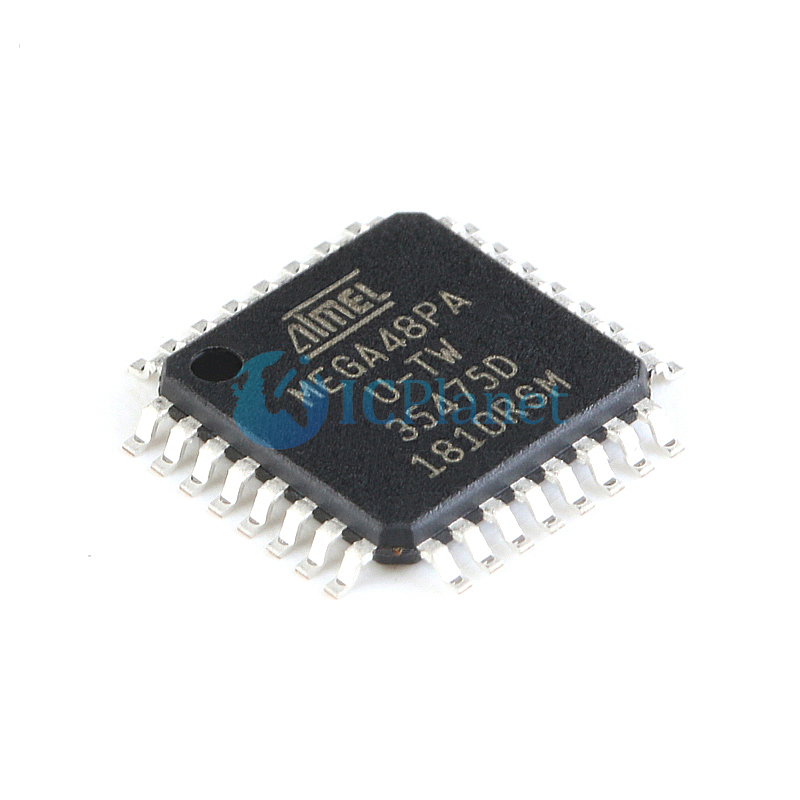

ATMEGA48PA-AU TQFP-32 AVR series 8-Bit Embedded Microcontroller Chip

The ATmega48A/PA/88A/PA/168A/PA/328/P is a low power, CMOS 8-bit microcontrollers based on the AVR® enhanced RISC architecture. By executing instructions in a single clock cycle, the devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz, allowing the system designer to optimize power consumption versus processing speed.

Features

 ✦ High Performance, Low Power AVR® 8-Bit Microcontroller Family

 ✦ Advanced RISC Architecture

 ̶ 131 Powerful Instructions – Most Single Clock Cycle Execution

 ̶ 32 x 8 General Purpose Working Registers ̶ Fully Static Operation

 ̶ Up to 20 MIPS Throughput at 20MHz

 ̶ On-chip 2-cycle Multiplier

 ✦ High Endurance Non-volatile Memory Segments

 ̶ 4/8/16/32KBytes of In-System Self-Programmable Flash program memory

 ̶ 256/512/512/1KBytes EEPROM

 ̶ 512/1K/1K/2KBytes Internal SRAM

 ̶ Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

 ̶ Data retention: 20 years at 85°C/100 years at 25°C(1)

 ̶ Optional Boot Code Section with Independent Lock Bits

       ✦ In-System Programming by On-chip Boot Program

       ✦ True Read-While-Write Operation

 ̶ Programming Lock for Software Security

 ✦ QTouch® library support

 ̶ Capacitive touch buttons, sliders and wheels

 ̶ QTouch and QMatrix™ acquisition

 ̶ Up to 64 sense channels

 ✦ Peripheral Features

 ̶ Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

 ̶ One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

̶ Real Time Counter with Separate Oscillator

 ̶ Six PWM Channels

 ̶ 8-channel 10-bit ADC in TQFP and VQFN package

Temperature Measurement

 ̶ 6-channel 10-bit ADC in SPDIP Package

 ✦ Temperature Measurement

 ̶ Programmable Serial USART

 ̶ Master/Slave SPI Serial Interface

 ̶ Byte-oriented 2-wire Serial Interface (Philips I2C compatible)

 ̶ Programmable Watchdog Timer with Separate On-chip Oscillator

 ̶ On-chip Analog Comparator

 ̶ Interrupt and Wake-up on Pin Change 

 ✦ Special Microcontroller Features

 ̶ Power-on Reset and Programmable Brown-out Detection

 ̶ Internal Calibrated Oscillator

 ̶ External and Internal Interrupt Sources

 ̶ Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby

 ✦ I/O and Packages

 ̶ 23 Programmable I/O Lines

 ̶ 28-pin SPDIP, 32-lead TQFP, 28-pad VQFN and 32-pad VQFN

 ✦ Operating Voltage:

 ̶ 1.8 - 5.5V

 ✦ Temperature Range:

 ̶ -40°C to 85°C  Speed Grade:

 ̶ 0 - 4MHz@1.8 - 5.5V, 0 - 10MHz@2.7 - 5.5.V, 0 - 20MHz @ 4.5 - 5.5V

 ✦ Power Consumption at 1MHz, 1.8V, 25°C

 ̶ Active Mode: 0.2mA

 ̶ Power-down Mode: 0.1µA

• Power-save Mode: 0.75µA (Including 32kHz RTC)
