| IC MCU 8BIT 16KB FLASH 32TQFP |

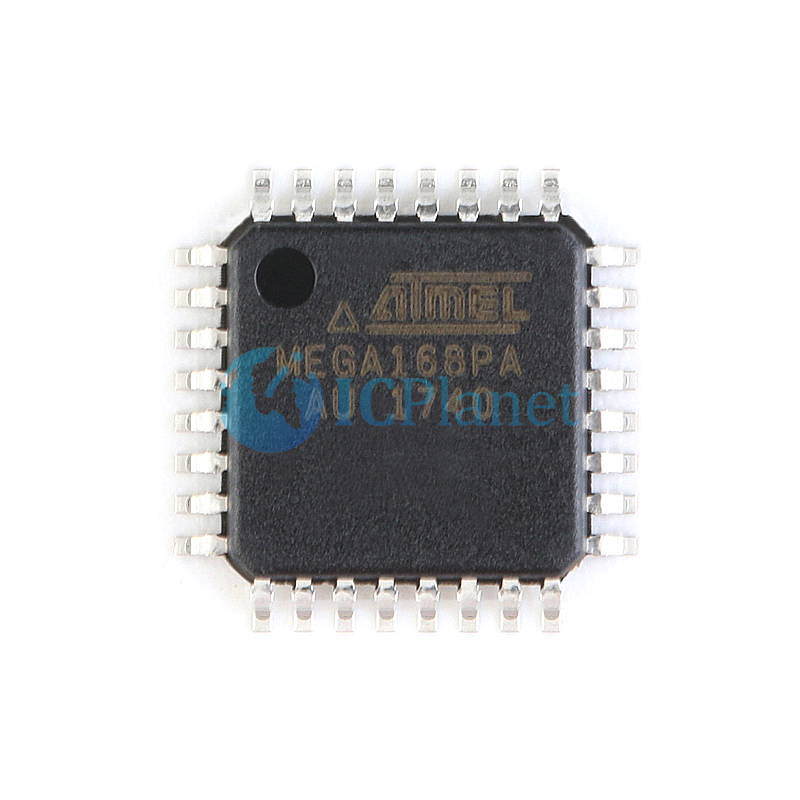

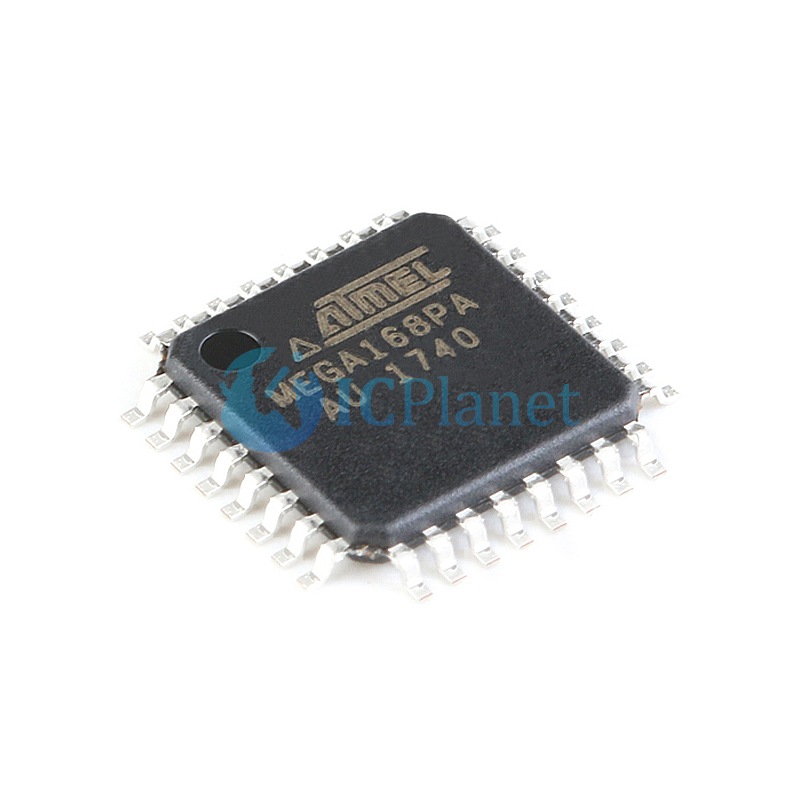

ATMEGA168PA-AU
Atmel
ICPlanet
AVR series Microcontroller IC 8-Bit 20MHz 16KB (8K x 16) FLASH 32-TQFP (7x7)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Atmel |
Series | AVRĀ® ATmega |
Package | Bulk |
Part Status | Active |
Core Processor | AVR |
Core Size | 8-Bit |
Speed | 20MHz |
Connectivity | IĀ²C, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 23 |
Program Memory Size | 16KB (8K x 16) |
Program Memory Type | FLASH |
EEPROM Size | 512 x 8 |
RAM Size | 1K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
Data Converters | A/D 8x10b |
Oscillator Type | Internal |
Operating Temperature | -40Ā°C ~ 85Ā°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 32-TQFP |
High Performance, Low Power AtmelĀ®AVRĀ® 8-Bit Microcontroller Family
ā¢ Advanced RISC Architecture
ā 131 Powerful Instructions
ā Most Single Clock Cycle Execution
ā 32 x 8 General Purpose Working Registers
ā Fully Static Operation
ā Up to 20 MIPS Throughput at 20MHz
ā On-chip 2-cycle Multiplier
ā¢ High Endurance Non-volatile Memory Segments
ā 4K/8K/16KBytes of In-System Self-Programmable Flash programMemory
ā 256/512/512Bytes EEPROM
ā 512/1K/1KBytes Internal SRAM
ā Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
ā Data Retention: 20 years at 85Ā°C/100 years at 25Ā°C(1)
ā Optional Boot Code Section with Independent Lock Bits
ā¢ In-System Programming by On-chip Boot Programā¢ True Read-While-Write Operation
ā Programming Lock for Software Security
ā¢ AtmelĀ® QTouchĀ® Library Support
ā Capacitive Touch Buttons, Sliders and Wheels
ā QTouch and QMatrixĀ® Acquisition
ā Up to 64 sense channels
ā¢ Peripheral Features
ā Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
ā One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
ā Real Time Counter with Separate Oscillator
ā Six PWM Channels
ā 8-channel 10-bit ADC in TQFP and QFN/MLF package
ā¢ Temperature Measurement
ā 6-channel 10-bit ADC in PDIP Package
ā¢ Temperature Measurement
ā Two Master/Slave SPI Serial Interface
ā One Programmable Serial USART
ā One Byte-oriented 2-wire Serial Interface (Philips I2C compatible)
ā Programmable Watchdog Timer with Separate On-chip Oscillator
ā One On-chip Analog Comparator
ā Interrupt and Wake-up on Pin Change
ā¢ Special Microcontroller Features
ā Power-on Reset and Programmable Brown-out Detectionā Internal Calibrated Oscillator
ā External and Internal Interrupt Sources
ā Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, andExtended Standby
ā¢ I/O and Packages
ā 23 Programmable I/O Lines
ā 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
ā¢ Operating Voltage:
ā 1.8 - 5.5Vā¢ Temperature Range:
ā -40Ā°C to 105Ā°Cā¢ Speed Grade:
ā 0 - 4MHz @ 1.8 - 5.5V
ā 0 - 10MHz @ 2.7 - 5.5V
ā 0 - 20MHz @ 4.5 - 5.5V
ā¢ Power Consumption at 1MHz, 1.8V, 25Ā°C
ā Active Mode: 0.2mA
ā Power-down Mode: 0.1Ī¼A
ā Power-save Mode: 0.75Ī¼A (Including 32kHz RTC)
