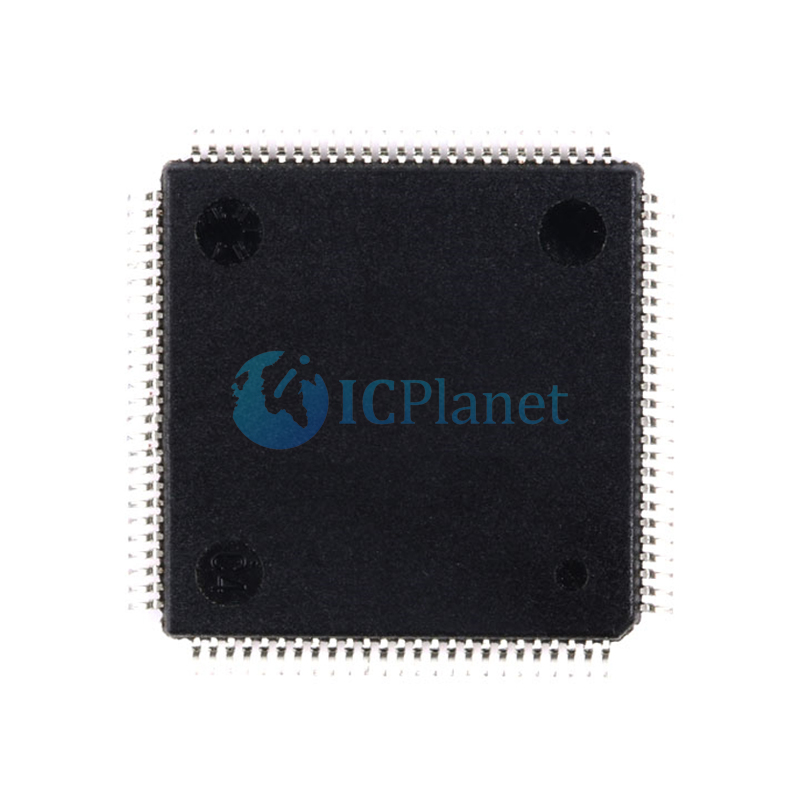

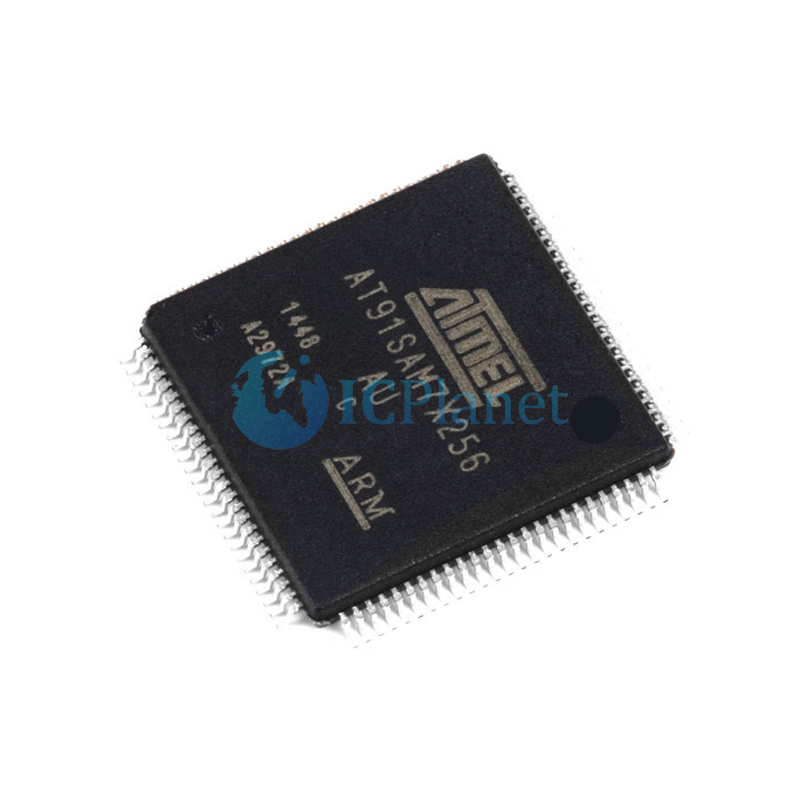

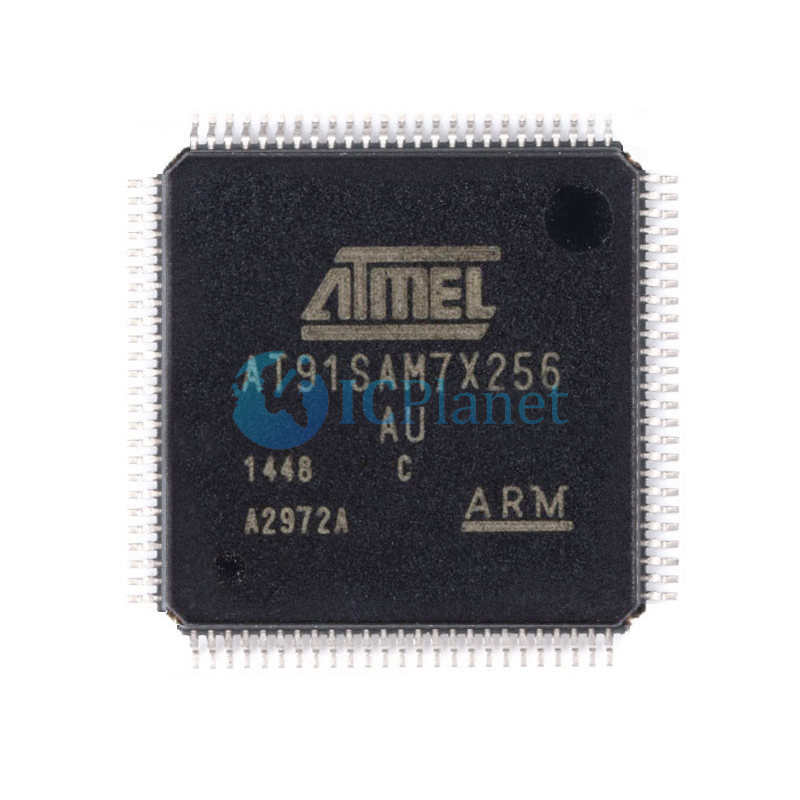

| IC MCU 16/32B 256KB FLSH 100LQFP |
AT91SAM7X256C-AU
Microchip Technology
ICPlanet
ARM7® series Microcontroller IC 16/32-Bit 55MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | Microchip Technology |
Series | SAM7X |
Package | Tray |
Part Status | Active |
Core Processor | ARM7® |
Core Size | 16/32-Bit |
Speed | 55MHz |
Connectivity | CANbus, Ethernet, I²C, SPI, SSC, UART/USART, USB |
Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
Number of I/O | 62 |
Program Memory Size | 256KB (256K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 64K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V |
Data Converters | A/D 8x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 100-LQFP |
Supplier Device Package | 100-LQFP (14x14) |
Description
The Atmel SAM7X512/256/128 is a highly-integrated Flash microcontroller based on the 32-bit ARM® RISC processor. It features 512/256/128 Kbytes of high-speed Flash and 128/64/32 Kbytes of SRAM, a large set of peripherals, including an 802.3 Ethernet MAC, and a CAN controller. A complete set of system functions minimizes the number of external components.
The embedded Flash memory can be programmed in-system via the JTAG-ICE interface or via a parallel interface on a production programmer prior to mounting. Builtin lock bits and a security bit protect the firmware from accidental overwrite and preserve its confidentiality.
The SAM7X512/256/128 system controller includes a reset controller capable of managing the power-on sequence of the microcontroller and the complete system. Correct device operation can be monitored by a built-in brownout detector and a watchdog running off an integrated RC oscillator.
By combining the ARM7TDMI® processor with on-chip Flash and SRAM, and a wide range of peripheral functions, including USART, SPI, CAN controller, Ethernet MAC, Timer Counter, RTT and analog-to-digital converters on a monolithic chip, the SAM7X512/256/128 is a powerful device that provides a flexible, cost-effective solution to many embedded control applications requiring communication over Ethernet, wired CAN and ZigBee® wireless networks.
Features
✦ Incorporates the ARM7TDMI ARM Thumb® Processor
■ High-performance 32-bit RISC Architecture
■ High-density 16-bit Instruction Set
■ Leader in MIPS/Watt
■ EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
✦ Internal High-speed Flash
■ 512 Kbytes (SAM7X512) Organized in Two Banks of 1024 Pages of 256 Bytes (Dual Plane)
■ 256 Kbytes (SAM7X256) Organized in 1024 Pages of 256 Bytes (Single Plane)
■ 128 Kbytes (SAM7X128) Organized in 512 Pages of 256 Bytes (Single Plane)
■ Single Cycle Access at Up to 30 MHz in Worst Case Conditions
■ Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed
■ Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms
■ 10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities, Flash Security Bit
■ Fast Flash Programming Interface for High Volume Production
✦ Internal High-speed SRAM, Single-cycle Access at Maximum Speed
■ 128 Kbytes (SAM7X512)
■ 64 Kbytes (SAM7X256)
■ 32 Kbytes (SAM7X128)
✦ Memory Controller (MC)
■ Embedded Flash Controller, Abort Status and Misalignment Detection
✦ Reset Controller (RSTC)
■ Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
■ Provides External Reset Signal Shaping and Reset Source Status
✦ Clock Generator (CKGR)
■ Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and one PLL
✦ Power Management Controller (PMC)
■ Power Optimization Capabilities, Including Slow Clock Mode (Down to 500 Hz) and Idle Mode
■ Four Programmable External Clock Signals
✦ Advanced Interrupt Controller (AIC)
■ Individually Maskable, Eight-level Priority, Vectored Interrupt Sources
■ Two External Interrupt Sources and One Fast Interrupt Source, Spurious Interrupt Protected
✦ Debug Unit (DBGU)
■ 2-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention ■ Mode for General Purpose 2-wire UART Serial Communication
✦ Periodic Interval Timer (PIT)
■ 20-bit Programmable Counter plus 12-bit Interval Counter
✦ Windowed Watchdog (WDT)
■ 12-bit key-protected Programmable Counter
■ Provides Reset or Interrupt Signals to the System
■ Counter May Be Stopped While the Processor is in Debug State or in Idle Mode
✦ Real-time Timer (RTT)
■ 32-bit Free-running Counter with Alarm
■ Runs Off the Internal RC Oscillator
✦ Two Parallel Input/Output Controllers (PIO)
■ Sixty-two Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os
■ Input Change Interrupt Capability on Each I/O Line
■ Individually Programmable Open-drain, Pull-up Resistor and Synchronous Output
✦ Thirteen Peripheral DMA Controller (PDC) Channels
✦ One USB 2.0 Full Speed (12 Mbits per second) Device Port
■ On-chip Transceiver, 1352-byte Configurable Integrated FIFOs
✦ One Ethernet MAC 10/100 base-T
■ Media Independent Interface (MII) or Reduced Media Independent Interface (RMII)
■ Integrated 28-byte FIFOs and Dedicated DMA Channels for Transmit and Receive
✦ One Part 2.0A and Part 2.0B Compliant CAN Controller
■ Eight Fully-programmable Message Object Mailboxes, 16-bit Time Stamp Counter
✦ One Synchronous Serial Controller (SSC)
■ Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
■ I²S Analog Interface Support, Time Division Multiplex Support
■ High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
✦ Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
■ Individual Baud Rate Generator, IrDA® Infrared Modulation/Demodulation
■ Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support
■ Full Modem Line Support on USART1
✦ Two Master/Slave Serial Peripheral Interfaces (SPI)
■ 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects
✦ One Three-channel 16-bit Timer/Counter (TC)
■ Three External Clock Inputs, Two Multi-purpose I/O Pins per Channel
■ Double PWM Generation, Capture/Waveform Mode, Up/Down Capability
✦ One Four-channel 16-bit Power Width Modulation Controller (PWMC)
✦ One Two-wire Interface (TWI)
■ Master Mode Support Only, All Two-wire Atmel EEPROMs and I2 C Compatible Devices Supported
✦ One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
✦ SAM-BA® Boot Assistance
■ Default Boot program
■ Interface with SAM-BA Graphic User Interface
✦ IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
✦ 5V-tolerant I/Os, Including Four High-current Drive I/O lines, Up to 16 mA Each
✦ Power Supplies
■ Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
■ 3.3V VDDIO I/O Lines Power Supply, Independent 3.3V VDDFLASH Flash Power Supply
■ 1.8V VDDCORE Core Power Supply with Brownout Detector
✦ Fully Static Operation: Up to 55 MHz at 1.65V and 85°C Worst Case Conditions
✦ Available in 100-lead LQFP Green and 100-ball TFBGA Green Packages
