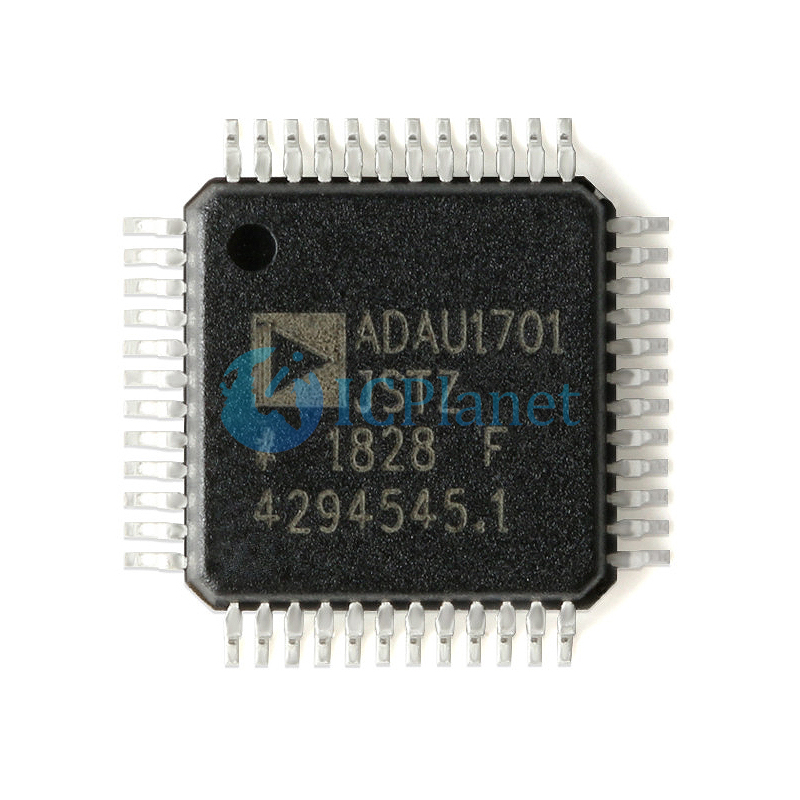

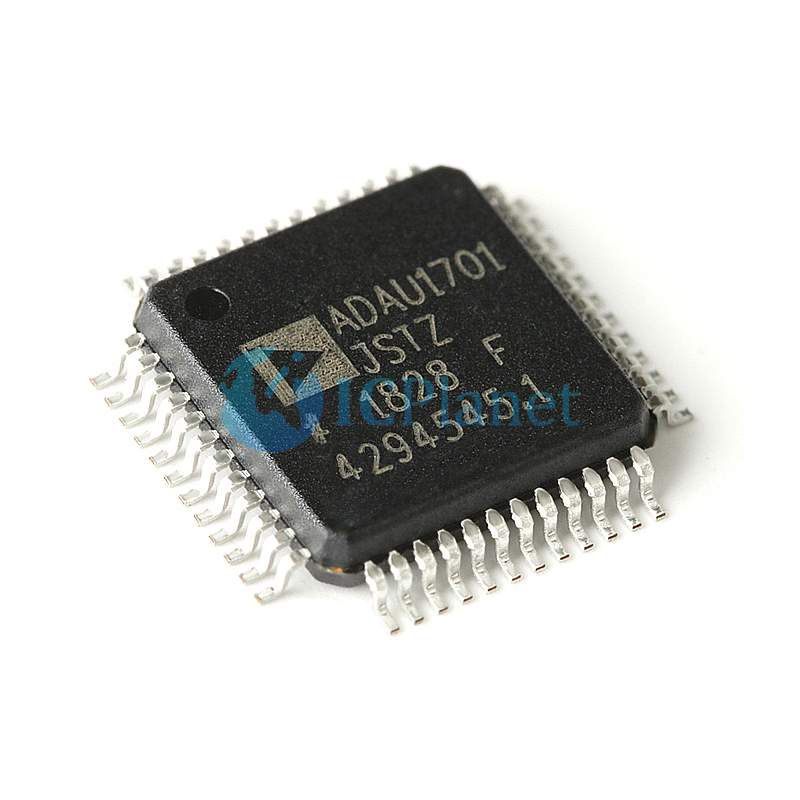

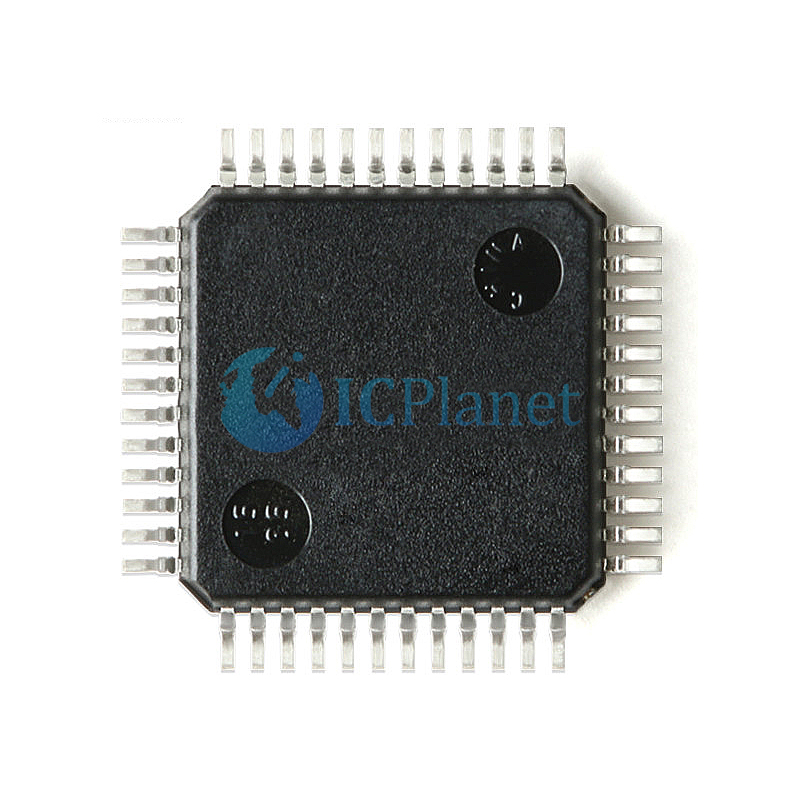

ADAU1701JSTZ-RL
Analog Devices Inc.
ICPlanet
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - DSP (Digital Signal Processors) |
Mfr | Analog Devices Inc. |
Series | SigmaDSP® |

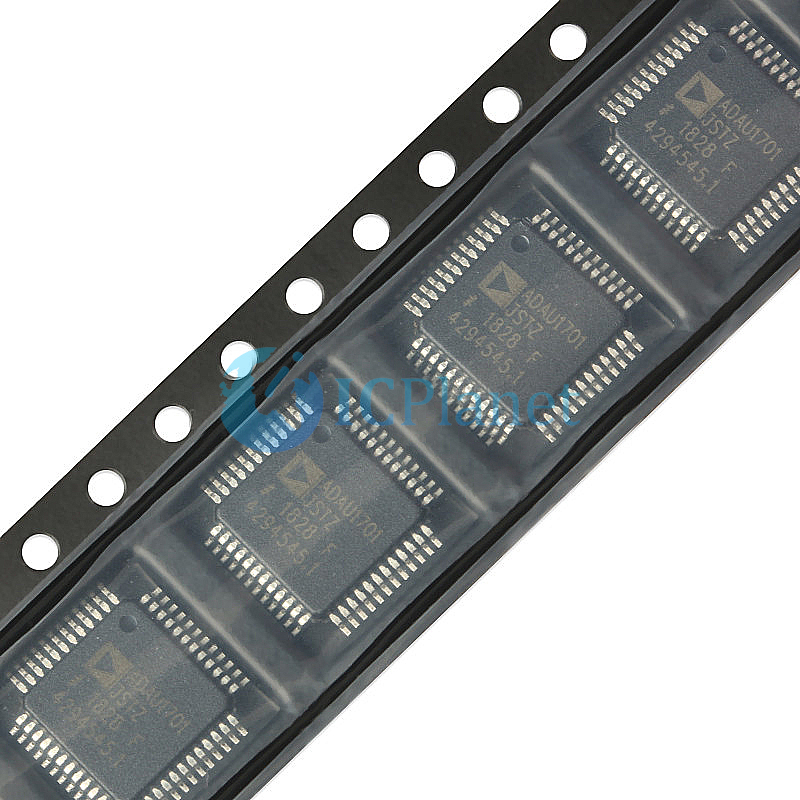

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Sigma |
Interface | I²C, SPI |
Clock Rate | 50MHz |
Non-Volatile Memory | - |
On-Chip RAM | 12kB |
Voltage - I/O | 3.30V |
Voltage - Core | 1.80V |
Operating Temperature | 0°C ~ 70°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 48-LQFP |
Supplier Device Package | 48-LQFP (7x7) |
FEATURES
28-/56-bit, 50 MIPS digital audio processor
2 ADCs: SNR of 100 dB, THD + N of −83 dB
4 DACs: SNR of 104 dB, THD + N of −90 dB
Complete standalone operation
Self-boot from serial EEPROM
Auxiliary ADC with 4-input mux for analog control
GPIOs for digital controls and outputs
Fully programmable with SigmaStudio graphical tool
28-bit × 28-bit multiplier with 56-bit accumulator for full double-precision processing
Clock oscillator for generating a master clock from crystal PLL for generating master clock from 64 × fS, 256 × fS,
384 × fS, or 512 × fS clocks
Flexible serial data input/output ports with I²S-compatible,
left-justified, right-justified, and TDM modes
Sampling rates of up to 192 kHz are supported
On-chip voltage regulator for compatibility with 3.3V systems
48-lead, plastic LQFP
APPLICATIONS
Multimedia speaker systems
MP3 player speaker docks
Automotive head units
Minicomponent stereos
Digital televisions
Studio monitors
Speaker crossovers
Musical instrument effects processors
In-seat sound systems (aircraft/motor coaches)
