| IC REG LINEAR 3.3V 30MA SCT595-5 |
TLE4296GV33NTSA1
Infineon Technologies
TLE4296G V33
ICPlanet
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) PMIC - Voltage Regulators - Linear |
Mfr | Infineon Technologies |
Series | Automotive, AEC-Q100, OPTIREGā¢ |
Package | Tape & Reel (TR) |
Part Status | Not For New Designs |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 45V |
Voltage - Output (Min/Fixed) | 3.3V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.3V @ 20mA |
Current - Output | 30mA |
Current - Quiescent (Iq) | 170 ĀµA |
Current - Supply (Max) | 4.5 mA |
PSRR | 60dB (100Hz) |
Control Features | Inhibit |
Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
Operating Temperature | -40Ā°C ~ 150Ā°C |
Mounting Type | Surface Mount |
Package / Case | 6-SMD (5 Leads), Gull Wing |
Supplier Device Package | PG-SCT595-5 |
Features
ā¢Three versions: 3.0 V, 3.3 V, 5.0 V
ā¢Output voltage tolerance ā¤Ā±4%
ā¢Very low drop voltage
ā¢Output current: 30 mA
ā¢Inhibit input
ā¢Low quiescent current consumption
ā¢Wide operation range: up to 45 V
ā¢Wide temperature range: -40 Ā°C ā¤Tj ā¤ 150 Ā°C
ā¢Output protected against short circuit
ā¢Overtemperature protectionā¢Reverse polarity proof

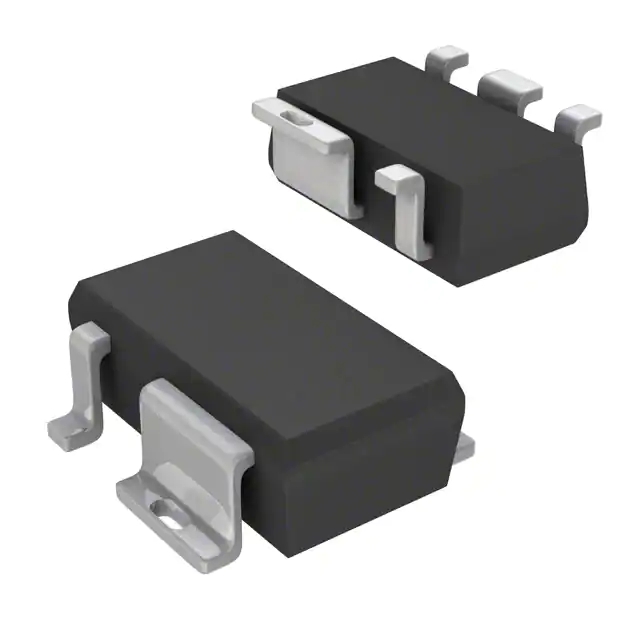

ā¢Very small SMD-Package PG-SCT595-5
ā¢Green product (RoHS compliant)
ā¢AEC qualified
Functional Description
The TLE 4296 G is a monolithic integrated low drop voltage regulator in the very smallSMD package PG-SCT595-5. It is designed to supply e.g. microprocessor systemsunder the severe conditions of automotive applications. Therefore the device is equippedwith additional protection functions against overload, short circuit and reverse polarity.At overtemperature the regulator is automatically turned off by the integrated thermalprotection circuit.nput voltages up to 40 V are regulated to VQ,nom = 3.0 V (V30 version) 3.3 V (V33version) or 5.0 V (V50 version). The output is able to drive a load of more than 30 mAwhile it regulates the output voltage within a 4% accuracy.To save energy the device can be switched in stand-by mode via an inhibit input whichcauses the current consumption to drop below 5Ī¼A.
