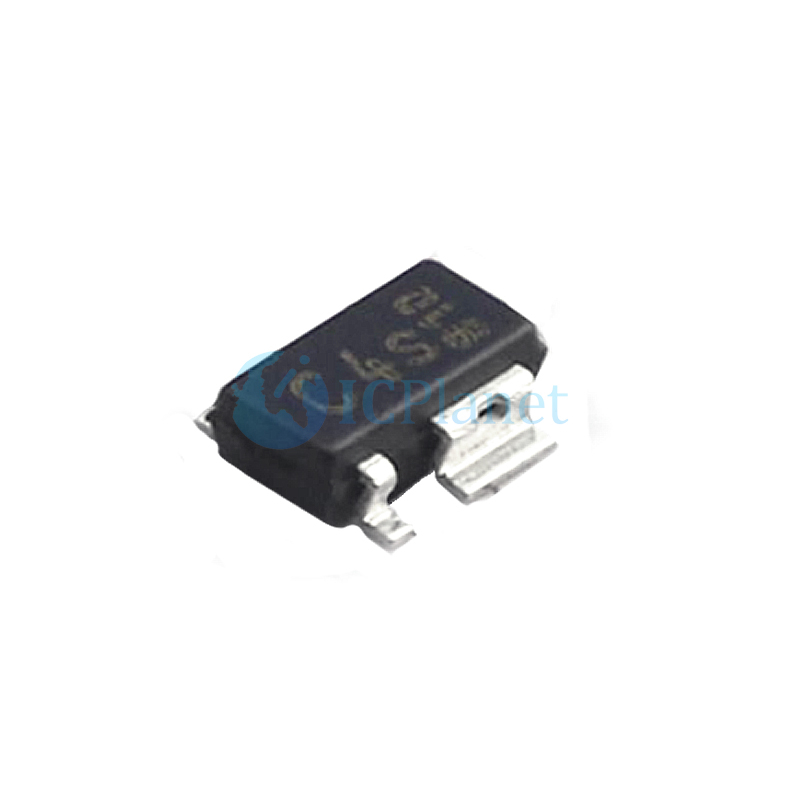

IC REG LINEAR 5V 30MA SCT595-5 |
TLE42962GV50HTSA1
Infineon Technologies
TLE4296-2G V50
ICPlanet
Encapsulation: | |
---|---|
SKU: | |
Availability: | |
Quantity: | |
PDF Export | |
TYPE | DESCRIPTION |
---|---|
Category | Integrated Circuits (ICs) PMIC - Voltage Regulators - Linear |
Mfr | Infineon Technologies |
Series | Automotive, AEC-Q100, OPTIREG™ |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 45V |
Voltage - Output (Min/Fixed) | 5V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.3V @ 20mA |
Current - Output | 30mA |
Current - Quiescent (Iq) | 170 µA |
Current - Supply (Max) | 5.2 mA |
PSRR | 60dB (100Hz) |
Control Features | Inhibit |
Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
Operating Temperature | -40°C ~ 150°C |
Mounting Type | Surface Mount |
Package / Case | 6-SMD (5 Leads), Gull Wing |
Supplier Device Package | PG-SCT595-5 |
Features
• Two output voltage versions: 3.3 V, 5.0 V
• Output voltage tolerance ≤ ±4%
• Very low drop voltage
• Output current: 30 mA
• Inhibit function
• Low quiescent current consumption
• Input voltage up to 45 V
• Wide temperature range: Tj = -40°C to +150°C
• Output protected against short circuit
• Overtemperature protection
• Reverse polarity proof
• Very small and thermally enhanced package
• Green Product (RoHS compliant)
Potential applications
General automotive applications
Product validation
Qualified for automotive applications. Product validation according to AEC-Q100.
Description
The OPTIREG™ linear TLE4296-2 is a monolithic integrated low drop voltage regulator in very small SMD package PG-SCT595-5. It is designed to supply various loads (e.g. microcontrollers, sensors, or as stand-by supply, etc.) under severe conditions. Therefore the device is equipped with additional protection functions against overload, short circuit and reverse polarity. In case of an overtemperature condition the regulator is automatically turned off by the integrated thermal protection circuit.
Input voltages up to 40 V are regulated to VQ,nom = 3.3 V (V33 version) or 5.0 V (V50 version). The output is able to drive a load of 30 mA while it regulates the output voltage within a 4% accuracy. To save energy the device can be switched to stand-by mode via an inhibit input which causes the current consumption to drop below 5 µA
