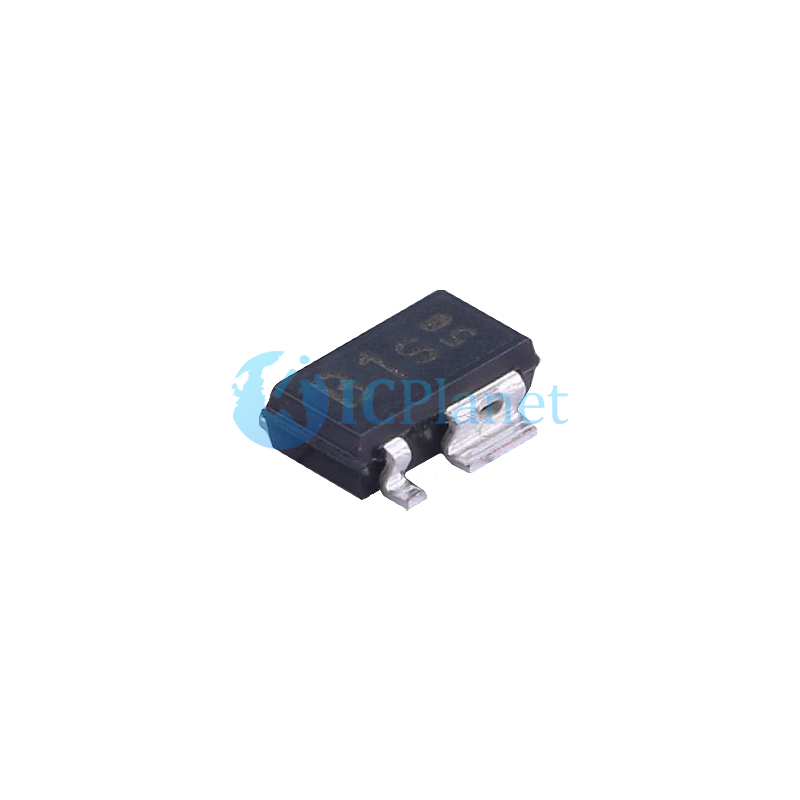

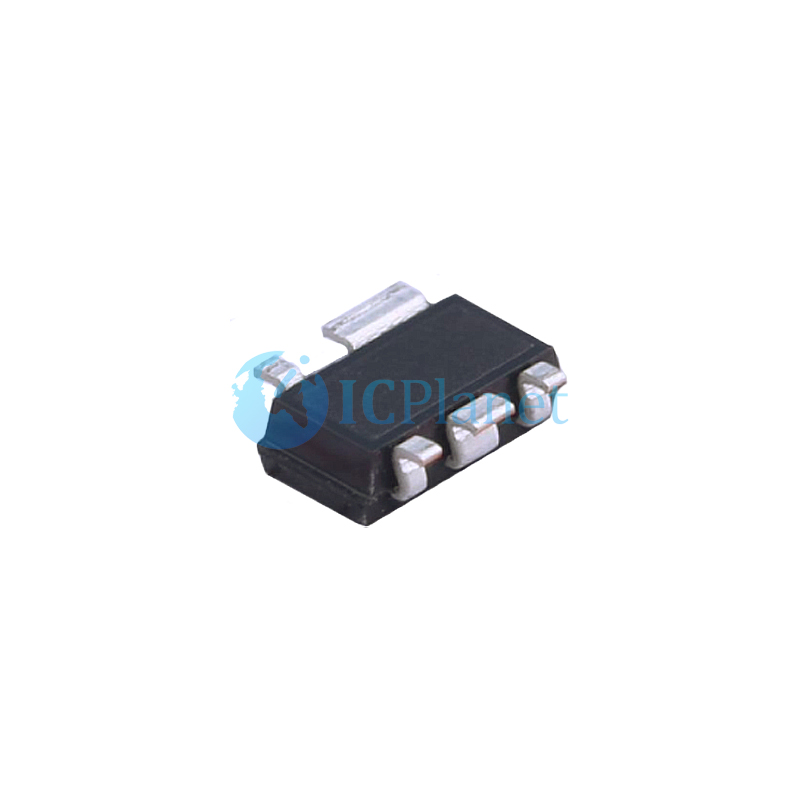

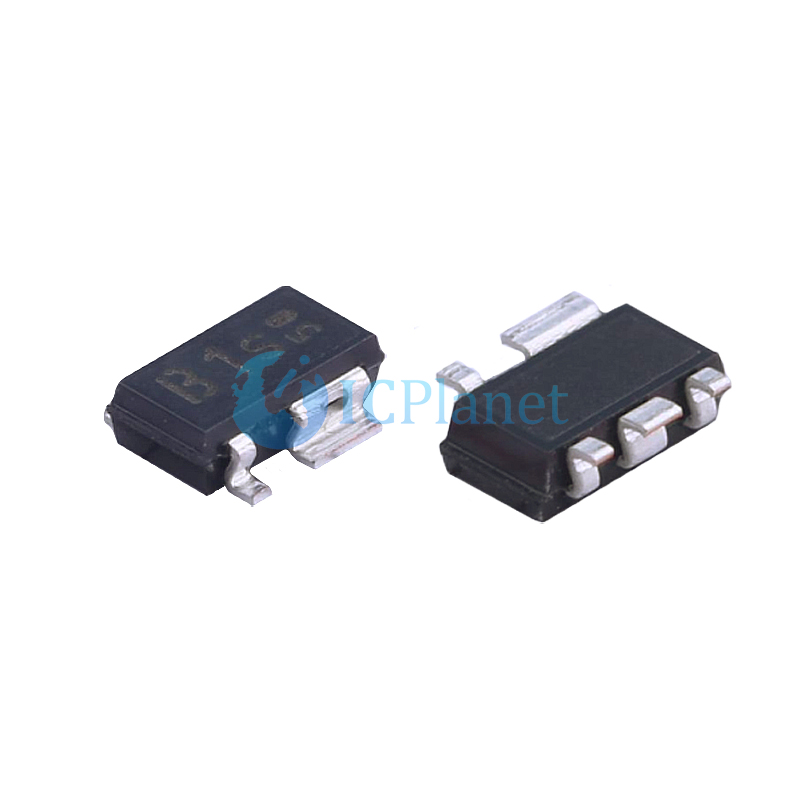

TLE4285GHTSA1
Infineon Technologies
ICPlanet
Encapsulation: | |
---|---|
SKU: | |
Availability: | |
Quantity: | |
PDF Export | |
TYPE | DESCRIPTION |
---|---|
Category | Integrated Circuits (ICs) PMIC - Voltage Regulators - Linear |
Mfr | Infineon Technologies |
Series | Automotive, AEC-Q100, OPTIREG™ |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 42V |
Voltage - Output (Min/Fixed) | 5V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 1.1V @ 10mA |
Current - Output | 15mA |
Current - Quiescent (Iq) | 150 µA |
PSRR | 60dB (100Hz) |
Control Features | Power Fail |
Protection Features | Over Temperature, Short Circuit |
Operating Temperature | -40°C ~ 150°C |
Mounting Type | Surface Mount |
Package / Case | 6-SMD (5 Leads), Gull Wing |
Supplier Device Package | PG-SCT595-5 |
Features
• 15 mA current capability
• Low quiescent current consumption
• Power fail output
• Wide operation range: up to 45 V
• Wide temperature range: -40 °C to 150 °C
• Output protected against short circuit
• Overtemperature protection
• Very small SMD-Package PG-SCT-595-5
• Green product (RohS compliant) • AEC qualified
Functional Description
The TLE 4285 G is a 5-V fixed voltage regulator in a very small SMD package PG-SCT-595-5. The maximum input voltage is 45 V. The output is able to drive an output current of more than 10 mA while it regulates the output voltage within a 4% accuracy. The Power Fail Output (open collector) is switched to low in case of under-voltage at the output pin. To reduce external components the Power Fail Output has an internal pull-up resistor of 50 kΩ which is connected to the output Q. The device incorporates a temperature protection that disables the circuit at overtemperature.
