BF771E6327HTSA1
Infineon Technologies
BF 771 E6327
ICPlanet
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
NPN Silicon RF Transistor
• For modulators and amplifiers in TV and VCR tuners
• Pb-free (RoHS compliant) package1)
• Qualified according AEC Q101
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Transistors - Bipolar (BJT) - RF |
Mfr | Infineon Technologies |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Transistor Type | NPN |
Voltage - Collector Emitter Breakdown (Max) | 12V |
Frequency - Transition | 8GHz |
Noise Figure (dB Typ @ f) | 1dB ~ 1.6dB @ 900MHz ~ 1.8GHz |
Gain | 10dB ~ 15dB |
Power - Max | 580mW |
DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 30mA, 8V |
Current - Collector (Ic) (Max) | 80mA |
Operating Temperature | 150°C (TJ) |
Mounting Type | Surface Mount |

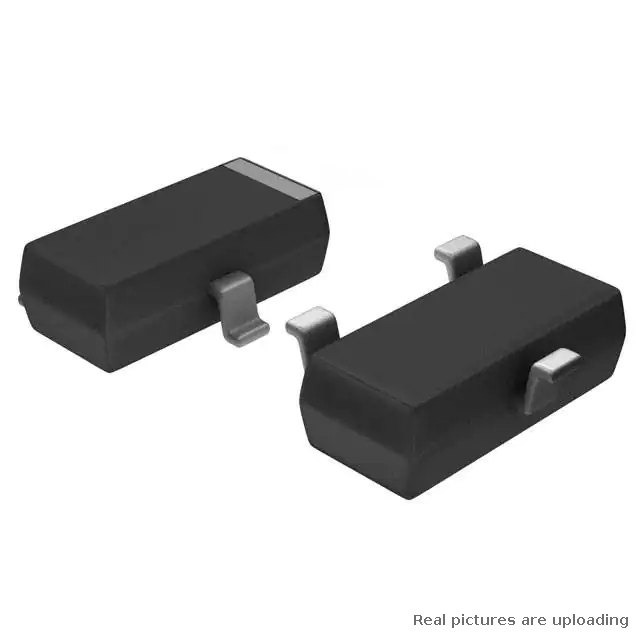

Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | PG-SOT23 |
