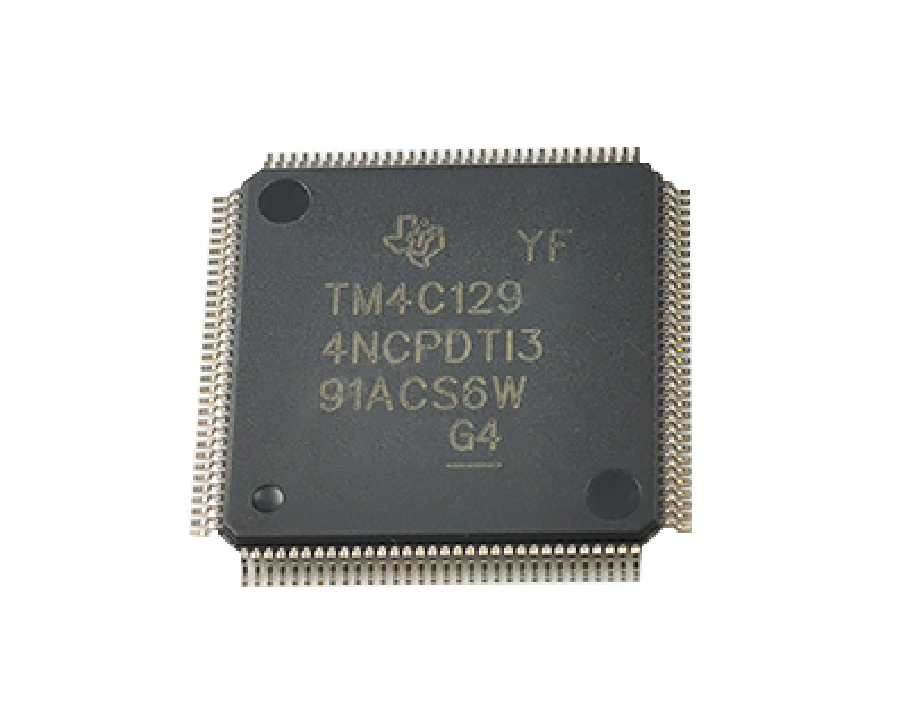

TM4C1294NCPDTI3
Texas Instruments
128-TQFP (14x14)
Yes
2321
ARM® Cortex®-M4F Tiva™ C Microcontroller IC 32-Bit Single-Core 120MHz 1MB (1M x 8) FLASH 128-TQFP (14x14)
SKU: | |
---|---|
Availability: | |
Quantity: | |
PDF Export | |
TYPE | DESCRIPTION |
---|---|
Category | |
Mfr | |
Series | |
Package | Tray |
Product Status | Active |
Core Processor | ARM® Cortex®-M4F |
Core Size | |
Speed | 120MHz |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG |
Peripherals | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT |
Number of I/O | 90 |
Program Memory Size | |
Program Memory Type | FLASH |
EEPROM Size | 6K x 8 |
RAM Size | 256K x 8 |
Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V |
Data Converters | A/D 20x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 128-TQFP |
Supplier Device Package | 128-TQFP (14x14) |
Base Product Number |
