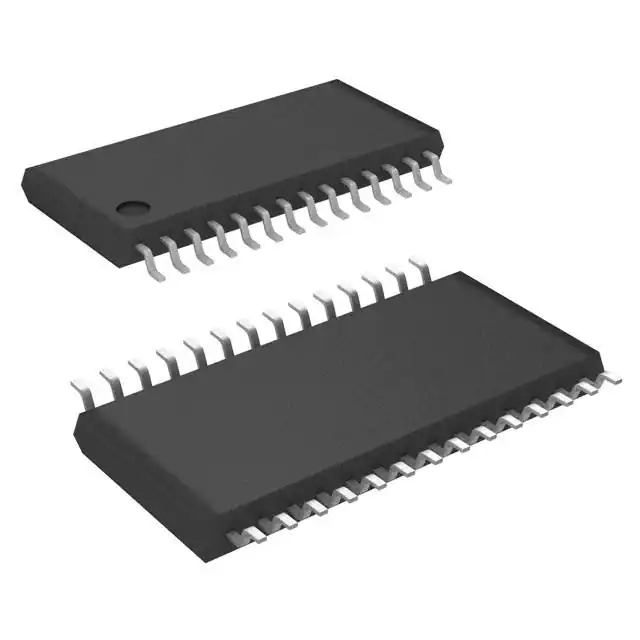

| RF RX ASK/FSK 810-870MHZ 28TSSOP |
TDA5220XUMA1
Infineon Technologies
TDA5220
ICPlanet
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | RF/IF and RFID RF Receivers |
Mfr | Infineon Technologies |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Last Time Buy |
Frequency | 810MHz ~ 870MHz, 400MHz ~ 440MHz |
Sensitivity | -110dBm |
Data Rate (Max) | 100kbps |
Modulation or Protocol | ASK, FSK |
Applications | RKE, Remote Control Systems |
Current - Receiving | 5.9mA |
Data Interface | PCB, Surface Mount |
Memory Size | - |
Antenna Connector | PCB, Surface Mount |
Features | - |
Voltage - Supply | 4.5V ~ 5.5V |
Operating Temperature | -40°C ~ 105°C |
Mounting Type | Surface Mount |
Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package | PG-TSSOP-28 |
Overview
The IC is a very low power consumption single chip FSK/ASK Superheterodyne Receiver (SHR) for the frequency bands 810 to 870 MHz and 400 to 440 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a PLL FSK demodulator, a data filter, an advanced data comparator (slicer) with selection between two threshold modes and a peak detector. Additionally there is a power down feature to save current and extend battery life, and two selectable alternatives of generating the data slicer threshold.
Features
• Low supply current (Is = 5.7/5.9 mA typ. in FSK mode, Is = 5.0/5.2 mA typ. in ASK mode for 434/868 MHz)
• Supply voltage range 5V ±10%
• Power down mode with very low supply current (50nA typ.)
• FSK and ASK demodulation capability
• Fully integrated VCO and PLL Synthesiser
• ASK sensitivity better than -106 dBm over specified temperature range (- 40 to +105°C) • FSK sensitivity better than -100 dBm over specified temperature range (- 40 to +105°C)
• Selectable frequency ranges 810-870 MHz and 400-440 MHz • Limiter with RSSI generation, operating at 10.7MHz
• 2nd order low pass data filter with external capacitors • Data slicer with selection between two threshold modes
Application
• Keyless Entry Systems • Remote Control Systems
• Alarm Systems
• Low Bitrate Communication Systems
