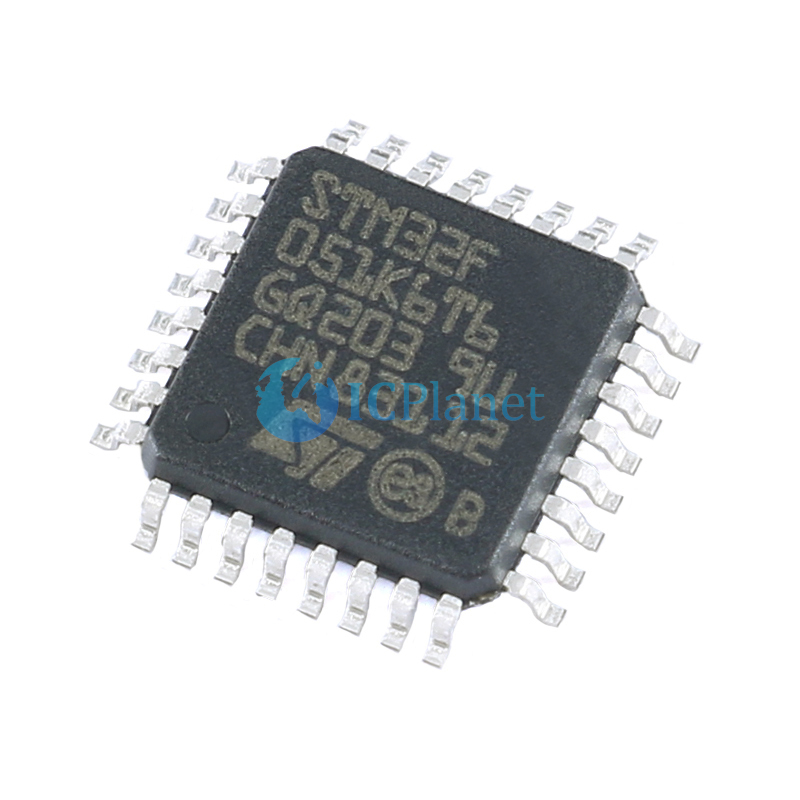

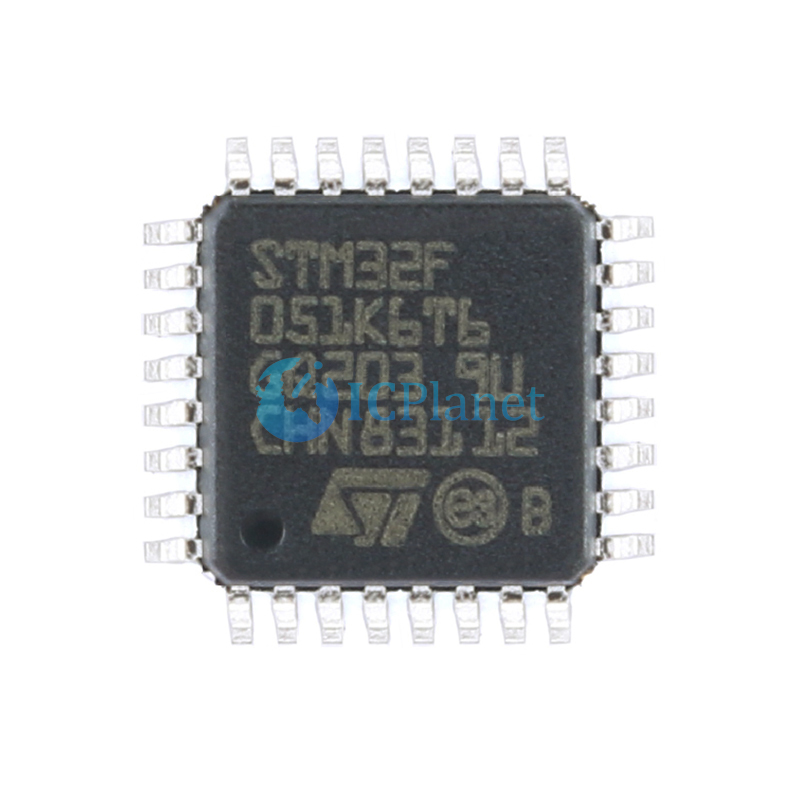

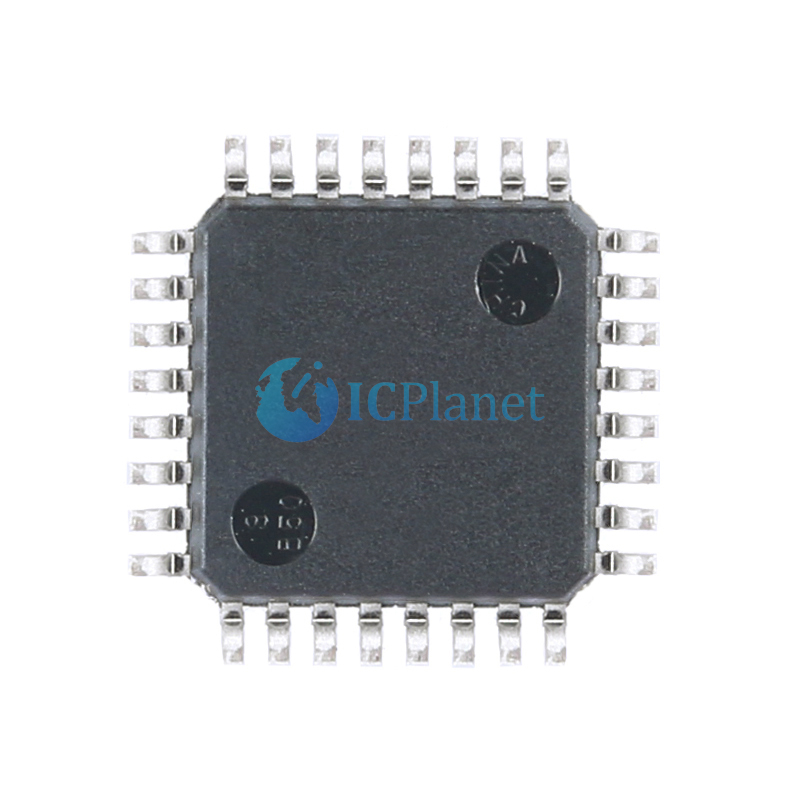

STM32F051K6T6
STMicroelectronics
ICPlanet
ARM® Cortex®-M0 series Microcontroller IC 32-Bit 48MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32F0 |
Package | Tray |
Part Status | Active |
Core Processor | ARM® Cortex®-M0 |
Core Size | 32-Bit |
Speed | 48MHz |
Connectivity | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | DMA, I²S, POR, PWM, WDT |
Number of I/O | 25 |
Program Memory Size | 32KB (32K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 8K x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
Data Converters | A/D 13x12b; D/A 1x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 32-LQFP |
Supplier Device Package | 32-LQFP (7x7) |
Features
• Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
• Memories
– 16 to 64 Kbytes of Flash memory
– 8 Kbytes of SRAM with HW parity checking
• CRC calculation unit
• Reset and power management
– Digital and I/O supply: VDD = 2.0 V to 3.6 V
– Analog supply: VDDA = from VDD to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Programmable voltage detector (PVD)
– Low power modes: Sleep, Stop, Standby
– VBAT supply for RTC and backup registers
• Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator
• Up to 55 fast I/Os
– All mappable on external interrupt vectors
– Up to 36 I/Os with 5 V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 µs ADC (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Separate analog supply from 2.4 up to 3.6
• One 12-bit DAC channel
• Two fast low-power analog comparators with programmable input and output
• Up to 18 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
• Up to 11 timers
– One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
– One 32-bit and one 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
– One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
– Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
– One 16-bit timer with 1 IC/OC
– Independent and system watchdog timers
– SysTick timer: 24-bit downcounter
– One 16-bit basic timer to drive the DAC
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• Communication interfaces
– Up to two I2C interfaces, one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus and wakeup from Stop mode
– Up to two USARTs supporting master synchronous SPI and modem control, one with ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature
– Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame, one with I2S interface multiplexed
• HDMI CEC interface, wakeup on header reception
• Serial wire debug (SWD)
• 96-bit unique ID
• All packages ECOPACK®2
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Embedded - Microcontrollers |
Mfr | STMicroelectronics |
Series | STM32F0 |
Package | Tray |
Part Status | Active |
Core Processor | ARM® Cortex®-M0 |
Core Size | 32-Bit |
Speed | 48MHz |
Connectivity | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals | DMA, I²S, POR, PWM, WDT |
Number of I/O | 25 |
Program Memory Size | 32KB (32K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 8K x 8 |
Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
Data Converters | A/D 13x12b; D/A 1x12b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 32-LQFP |
Supplier Device Package | 32-LQFP (7x7) |
Features
• Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
• Memories
– 16 to 64 Kbytes of Flash memory
– 8 Kbytes of SRAM with HW parity checking
• CRC calculation unit
• Reset and power management
– Digital and I/O supply: VDD = 2.0 V to 3.6 V
– Analog supply: VDDA = from VDD to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Programmable voltage detector (PVD)
– Low power modes: Sleep, Stop, Standby
– VBAT supply for RTC and backup registers
• Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator
• Up to 55 fast I/Os
– All mappable on external interrupt vectors
– Up to 36 I/Os with 5 V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 µs ADC (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Separate analog supply from 2.4 up to 3.6
• One 12-bit DAC channel
• Two fast low-power analog comparators with programmable input and output
• Up to 18 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
• Up to 11 timers
– One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
– One 32-bit and one 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
– One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
– Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
– One 16-bit timer with 1 IC/OC
– Independent and system watchdog timers
– SysTick timer: 24-bit downcounter
– One 16-bit basic timer to drive the DAC
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• Communication interfaces
– Up to two I2C interfaces, one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus and wakeup from Stop mode
– Up to two USARTs supporting master synchronous SPI and modem control, one with ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature
– Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame, one with I2S interface multiplexed
• HDMI CEC interface, wakeup on header reception
• Serial wire debug (SWD)
• 96-bit unique ID
• All packages ECOPACK®2
