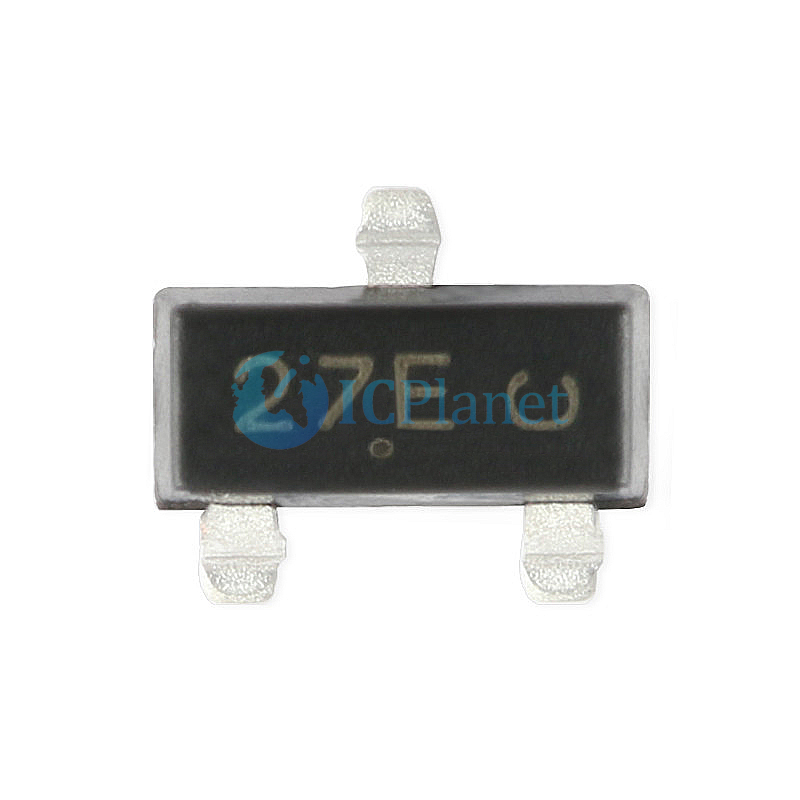

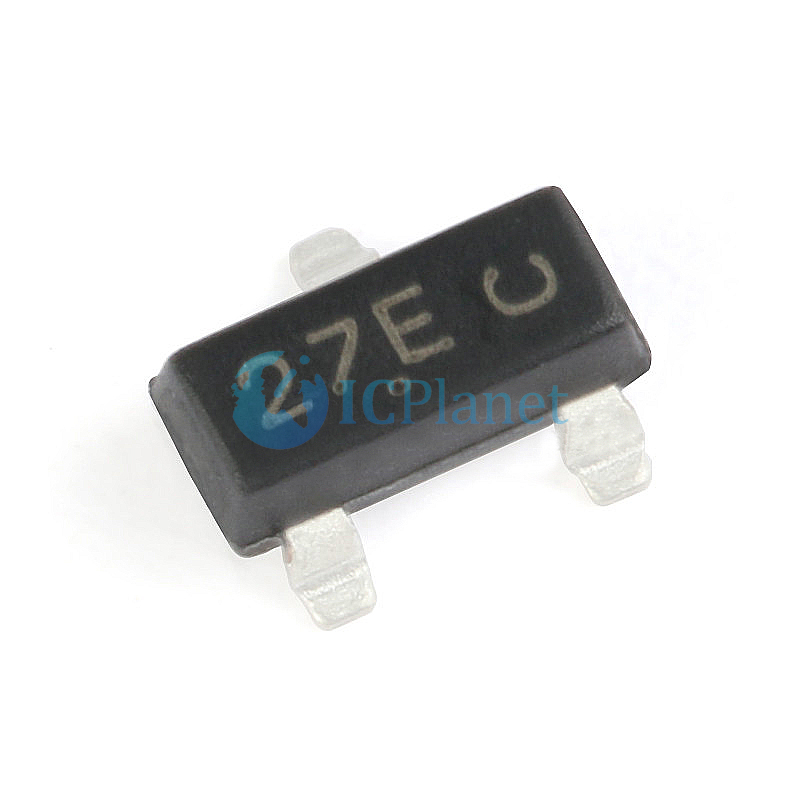

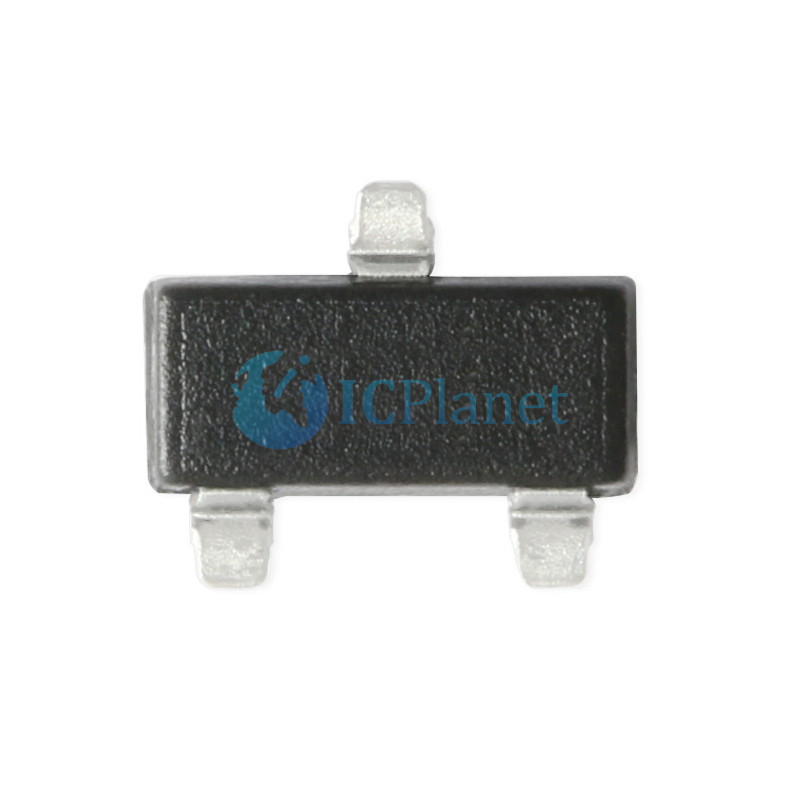

TVS DIODE 24VWM 44VC SOT23-3 |
NUP2105LT1G
Onsemi
ICPlanet
44V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Encapsulation: | |
---|---|
SKU: | |
Availability: | |
Quantity: | |
PDF Export | |
TYPE | DESCRIPTION |
---|---|
Category | Circuit Protection TVS - Diodes |
Mfr | onsemi |
Series | - |

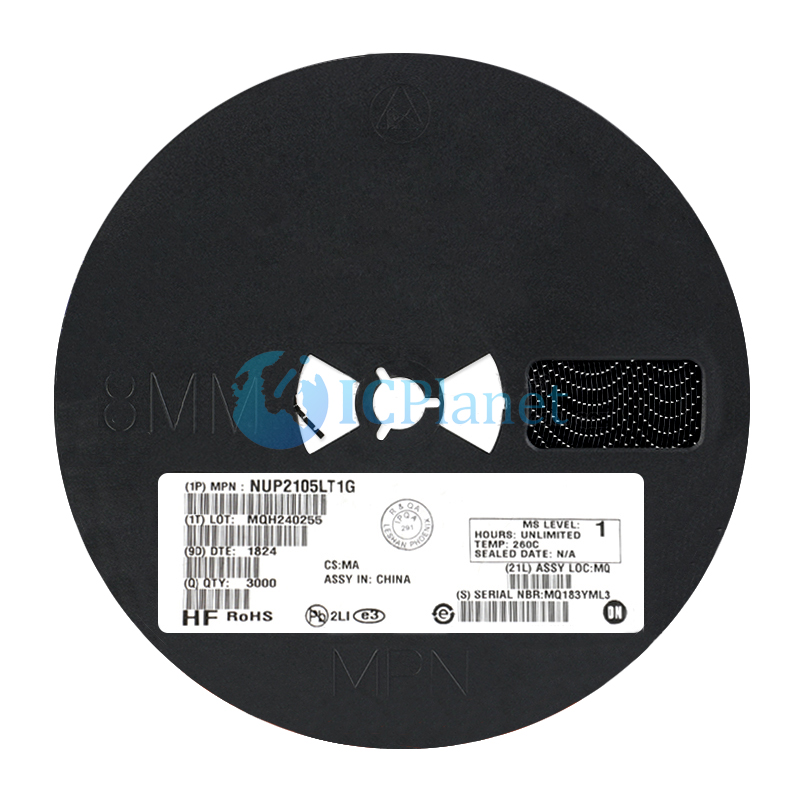

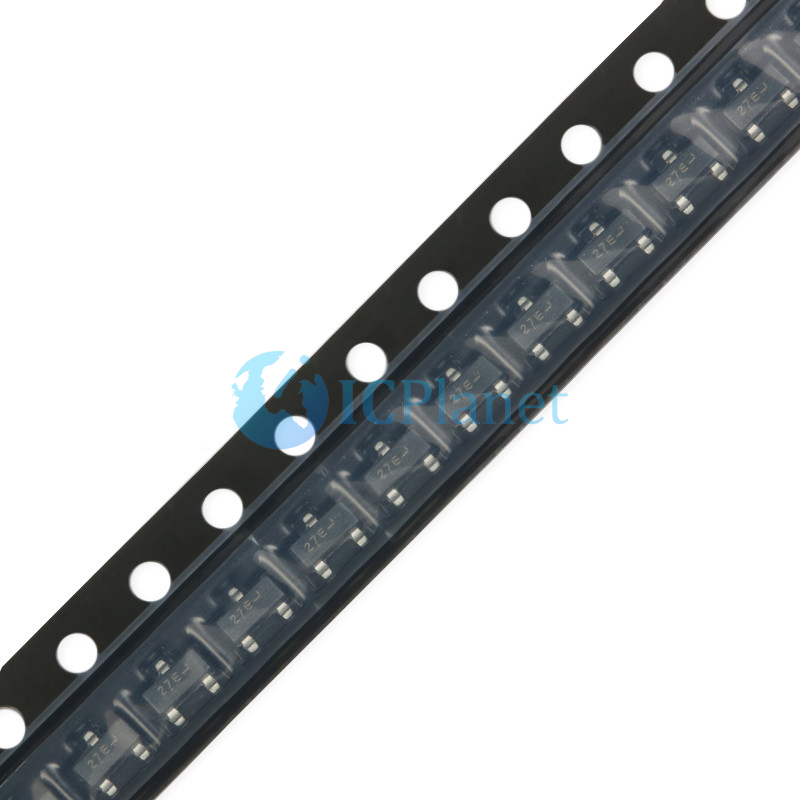

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | Zener |
Bidirectional Channels | 2 |
Voltage - Reverse Standoff (Typ) | 24V (Min) |
Voltage - Breakdown (Min) | 26.2V |
Voltage - Clamping (Max) @ Ipp | 44V |
Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
Power - Peak Pulse | 350W |
Power Line Protection | No |
Applications | General Purpose |
Capacitance @ Frequency | 30pF @ 1MHz |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | SOT-23-3 (TO-236) |
27 V ESD Protection Diode Dual Line CAN Bus Protector
The SZ/NUP2105L has been designed to protect the CAN transceiver in high−speed and fault tolerant networks from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT−23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.
Features
• 350 W Peak Power Dissipation per Line (8/20 sec Waveform)
• Low Reverse Leakage Current (< 100 nA)
• Low Capacitance High−Speed CAN Data Rates
• IEC Compatibility: − IEC 61000−4−2 (ESD): Level 4, 30 kV
− IEC 61000−4−4 (EFT): 40 A – 5/50 ns
− IEC 61000−4−5 (Lighting) 8.0 A (8/20 s)
• ISO 7637−2 Pulse 2a: Repetitive Load Switch Disconnect, 9.5 A
• ISO 7637−3 Pulse 3a,b: Repetitive Load Switching Fast Transients, 50 A
• Flammability Rating UL 94 V−0
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications
• Industrial Control Networks
♦ Smart Distribution Systems (SDS®)
♦ DeviceNet™
• Automotive Networks
♦ Low and High−Speed CAN
♦ Fault Tolerant CAN
