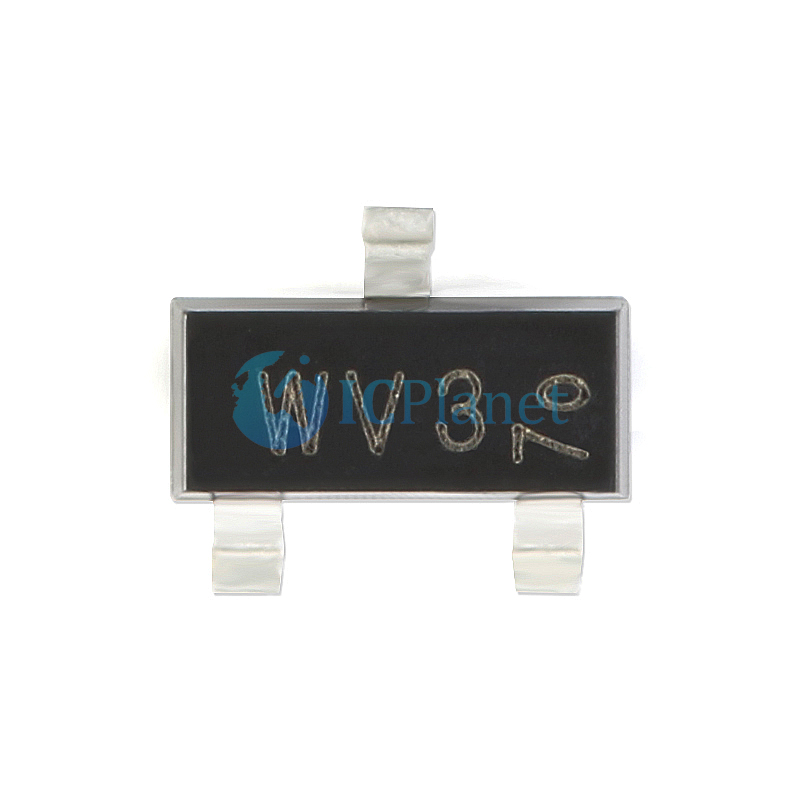

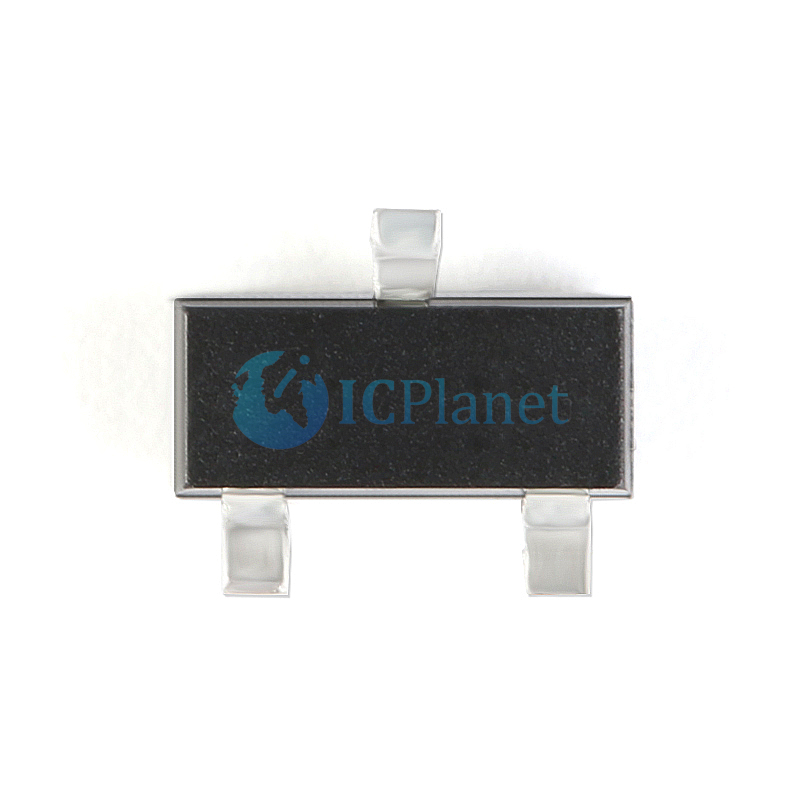

BAT54A,215
Nexperia USA Inc.
ICPlanet
Diode Array 1 Pair Common Anode Schottky 30 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Diodes - Rectifiers - Arrays |
Mfr | Nexperia USA Inc. |
Series | Automotive, AEC-Q101 |

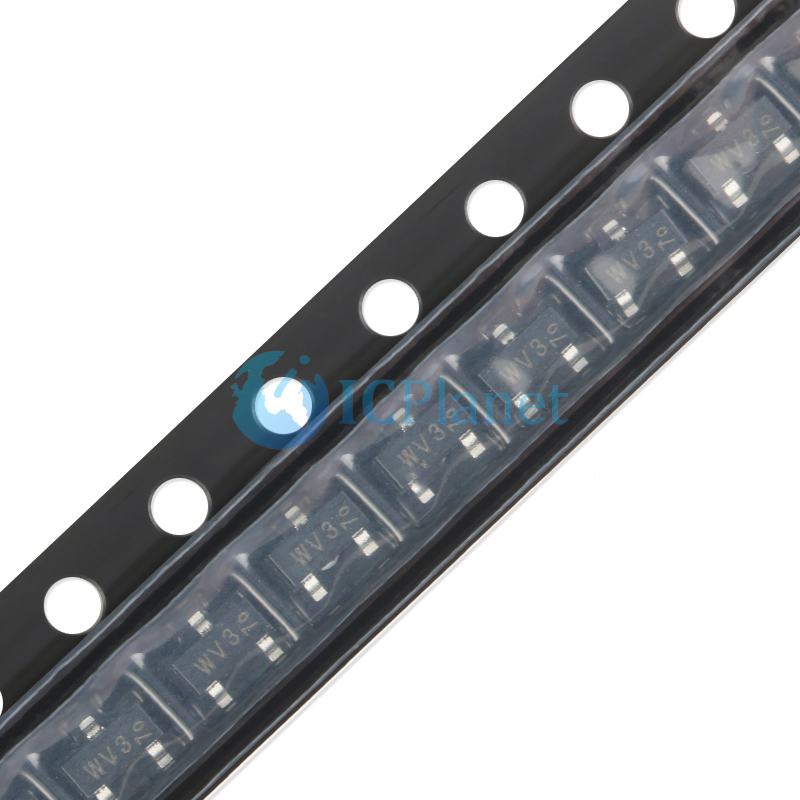

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Diode Configuration | 1 Pair Common Anode |
Diode Type | Schottky |
Voltage - DC Reverse (Vr) (Max) | 30 V |
Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
Speed | Small Signal =< 200mA (Io), Any Speed |
Reverse Recovery Time (trr) | 5 ns |
Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
Operating Temperature - Junction | 150°C (Max) |
Mounting Type | Surface Mount |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Supplier Device Package | TO-236AB |
