GS1M-LTP
Micro Commercial Components Corp
ICPlanet

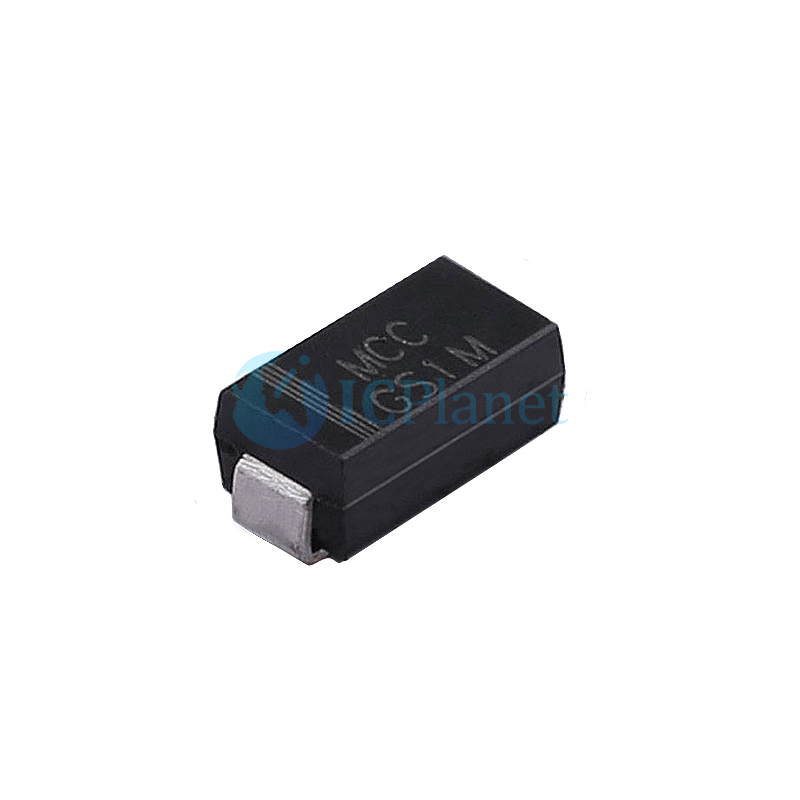

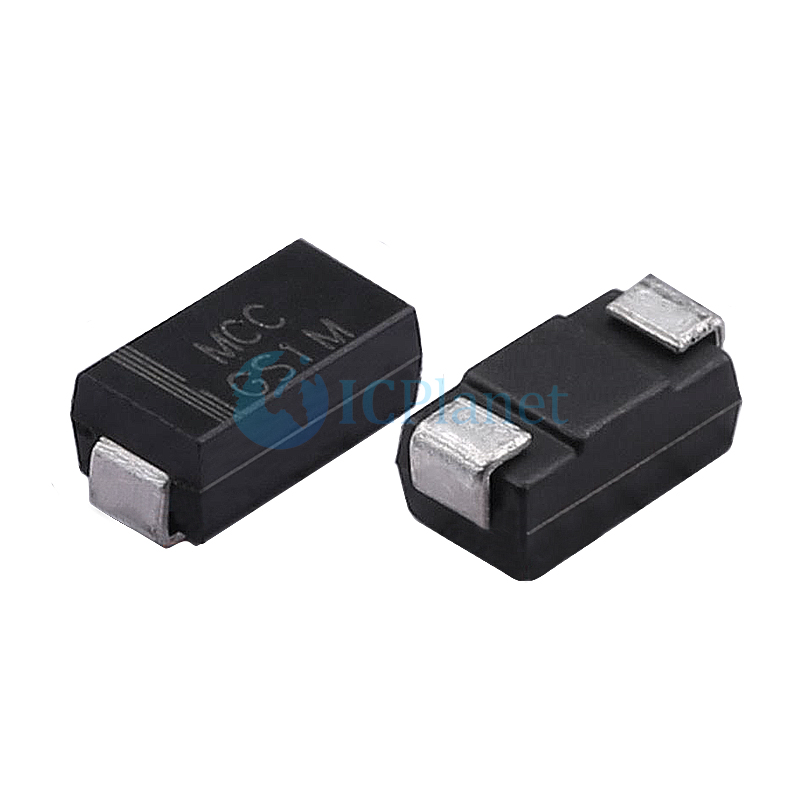

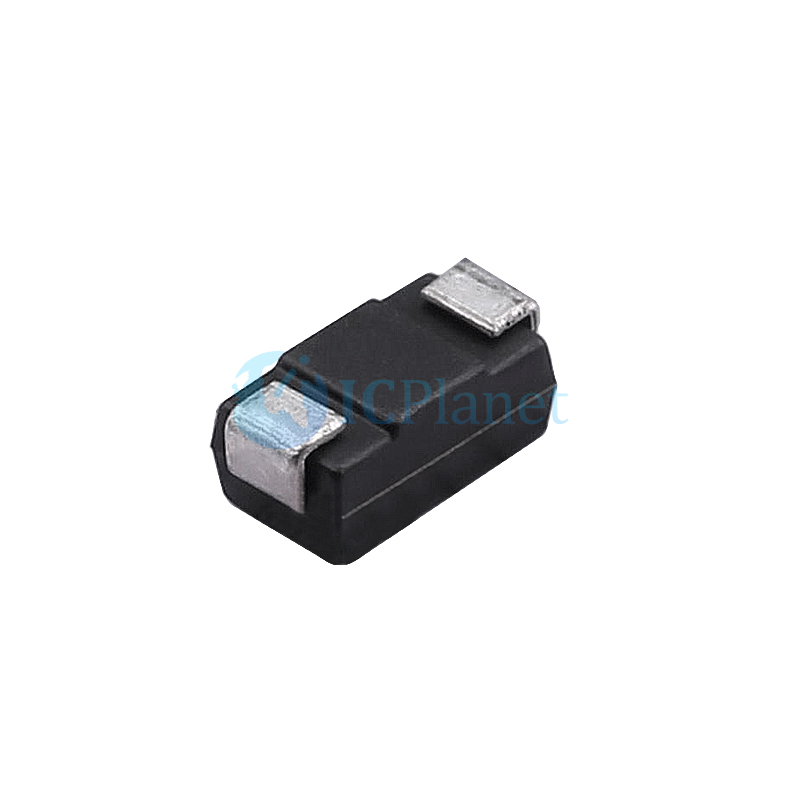

Diode Standard 1000 V 1A Surface Mount DO-214AC (SMA)
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Diodes - Rectifiers - Single |
Mfr | Micro Commercial Co |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Part Status | Active |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 1000 V |
Current - Average Rectified (Io) | 1A |
Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
Speed | Standard Recovery >500ns, > 200mA (Io) |
Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
Mounting Type | Surface Mount |
Package / Case | DO-214AC, SMA |
Supplier Device Package | DO-214AC (SMA) |
Operating Temperature - Junction | -55°C ~ 150°C |
• Glass Passivated Junction
• Extremely Low Thermal Resistance
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
• Halogen Free. “Green” Device (Note 1)
• Lead Free Finish/RoHS Compliant (Note2) ("P"Suffix Designates Compliant. See Ordering Information)
Maximum Ratings
• Operating Junction Temperature Range: -55°C to +150°C
• Storage Temperature Range: -55°C to +150°C
• Maximum Thermal Resistance: 15°C/W Junction to Lead
• Maximum Thermal Resistance: 85°C/W Junction to Ambient
