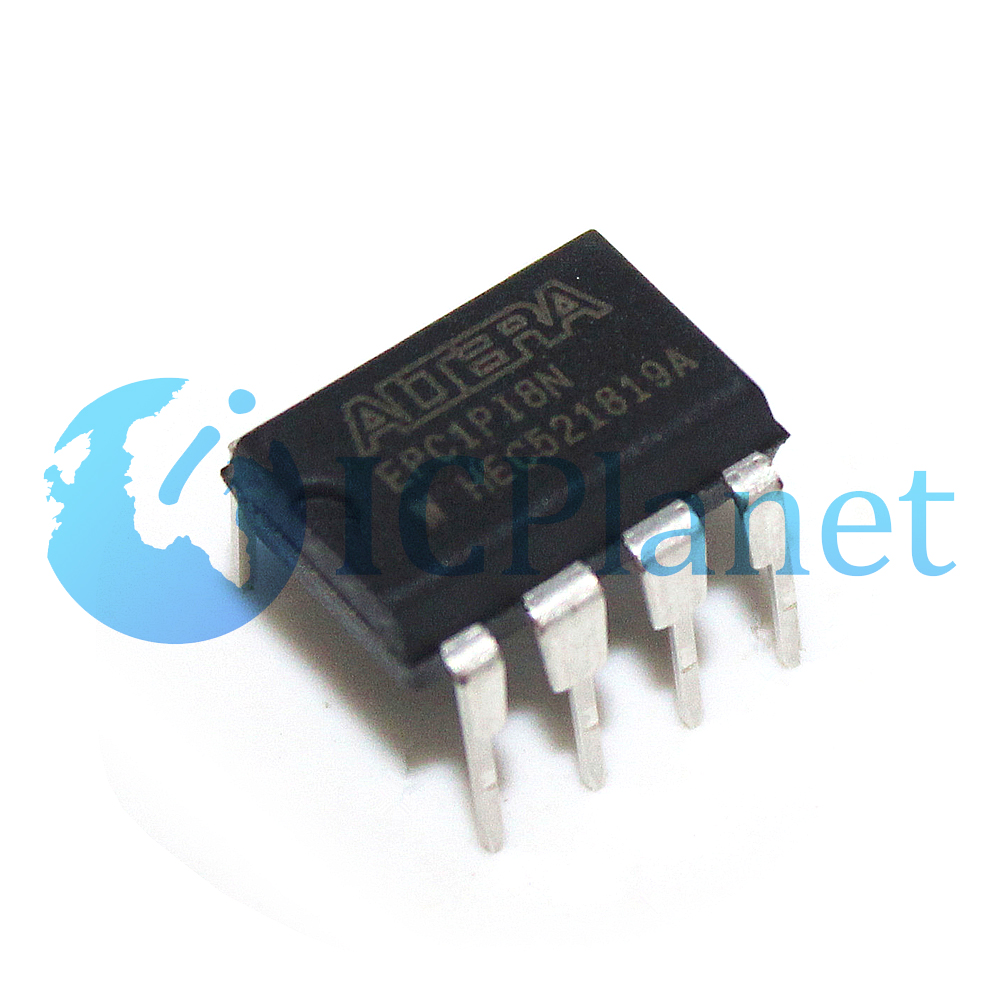

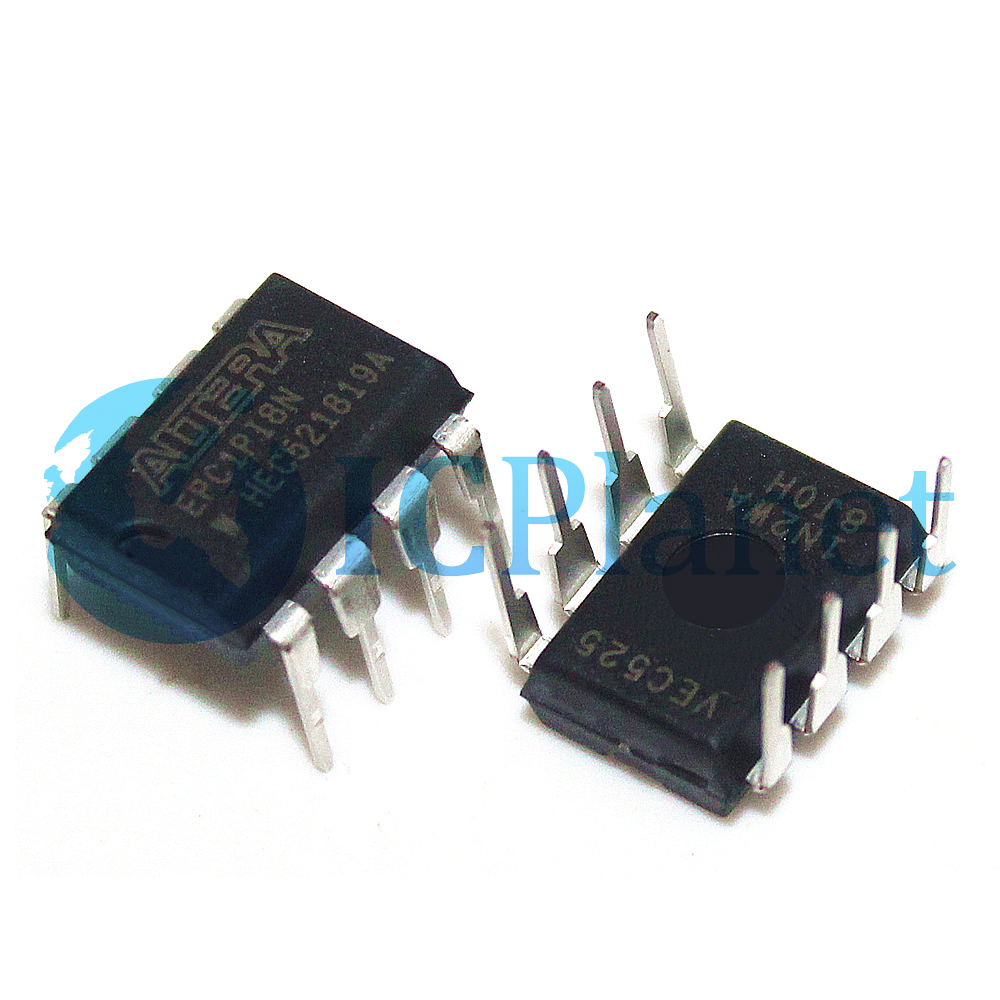

EPC1PI8N DIP-8 EPC Series OTP 1MB Memory Configuration Proms for FPGAs

IC CONFIG DEVICE 1MBIT 8DIP
  • EPC1PI8N

  • Intel

  • ICPlanet

SKU:
Availability:
Quantity:

PDF Export

Product Attributes

TYPEDESCRIPTION
CategoryIntegrated Circuits (ICs)
Memory - Configuration Proms for FPGAs
MfrIntel
SeriesEPC
PackageTube
Part StatusObsolete
Programmable TypeOTP
Memory Size1Mb
Voltage - Supply3V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature·-40℃ ~+ 85℃
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-PDIP


EPC devices offer the following features:

• Single-chip configuration solution for Altera® ACEX® 1K, APEX® 20K (including APEX 20K, APEX 20KC, and APEX 20KE), APEX II, Arria® GX, Cyclone® , Cyclone II, FLEX® 10K (including FLEX 10KE and FLEX 10KA), Mercury®, Stratix® II, and Stratix II GX devices

• Contains 4-, 8-, and 16-Mb flash memories for configuration data storage

• On-chip decompression feature almost doubles the effective configuration density

• Standard flash die and a controller die combined into single stacked chip package

• External flash interface supports parallel programming of flash and external processor access to unused portions of memory

• Flash memory block or sector protection capability using the external flash interface

• Supported in EPC4 and EPC16 devices

• Page mode support for remote and local reconfiguration with up to eight configurations for the entire system

• Compatible with Stratix series remote system configuration feature

• Supports byte-wide configuration mode fast passive parallel (FPP) with an 8-bit data output per DCLK cycle

• Supports true n-bit concurrent configuration (n = 1, 2, 4, and 8) of Altera FPGAs

• Pin selectable 2-ms or 100-ms power-on reset (POR) time

• Configuration clock supports programmable input source and frequency synthesis

• Multiple configuration clock sources supported (internal oscillator and external clock input pin)

• External clock source with frequencies up to 100 MHz

• Internal oscillator defaults to 10 MHz and you can program the internal oscillator for higher frequen‐cies of 33, 50, and 66 MHz

• Clock synthesis supported using user programmable divide counter

• Available in the 100-pin plastic quad flat pack (PQFP) and the 88-pin Ultra FineLine BGA (UFBGA) packages

• Vertical migration between all devices supported in the 100-pin PQFP package

• Supply voltage of 3.3 V (core and I/O)

• Hardware compliant with IEEE Std. 1532 in-system programmability (ISP) specification

• Supports ISP using Jam Standard Test and Programming Language (STAPL)

• Supports JTAG boundary scan

• The nINIT_CONF pin allows private JTAG instruction to start FPGA configuration

• Internal pull-up resistor on the nINIT_CONF pin always enabled

• User programmable weak internal pull-up resistors on nCS and OE pins

• Internal weak pull-up resistors on external flash interface address and control lines, bus hold on data lines

• Standby mode with reduced power consumption


Note: For more information about FPGA configuration schemes and advanced features, refer to the

configuration chapter in the appropriate device handbook.
