BSS169H6327
Infineon Technologies
BSS169H6327XTSA1
ICPlanet
N-Channel 100 V 170mA (Ta) 360mW (Ta) Surface Mount PG-SOT23
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single |
Mfr | Infineon Technologies |
Series | SIPMOS® |

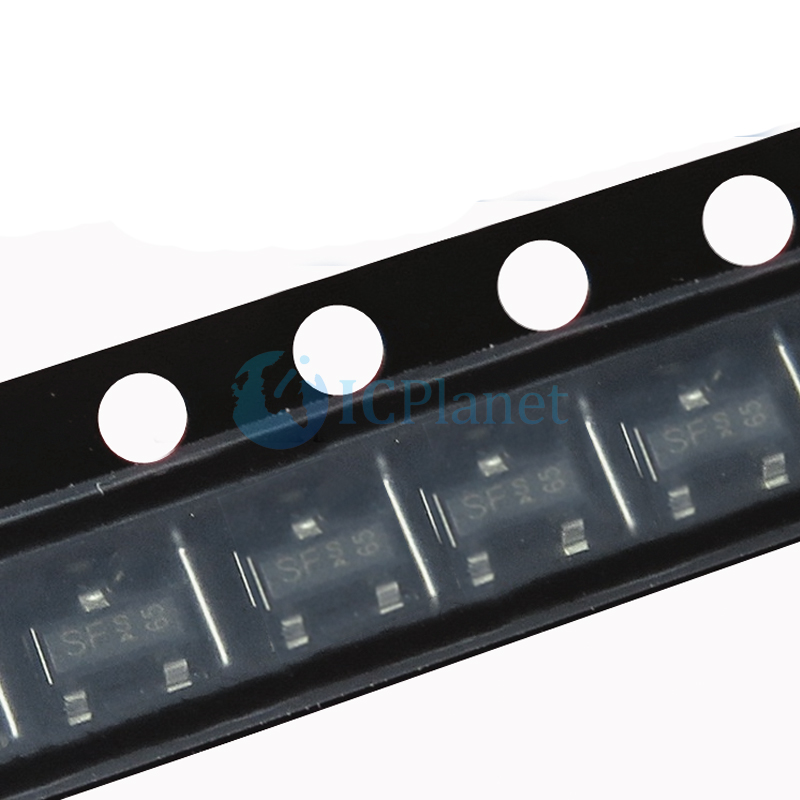

Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 100 V |
Current - Continuous Drain (Id) @ 25°C | 170mA (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 0V, 10V |
Rds On (Max) @ Id, Vgs | 6Ohm @ 170mA, 10V |
Vgs(th) (Max) @ Id | 1.8V @ 50µA |
Gate Charge (Qg) (Max) @ Vgs | 2.8 nC @ 7 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 68 pF @ 25 V |
FET Feature | Depletion Mode |
Power Dissipation (Max) | 360mW (Ta) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | PG-SOT23 |

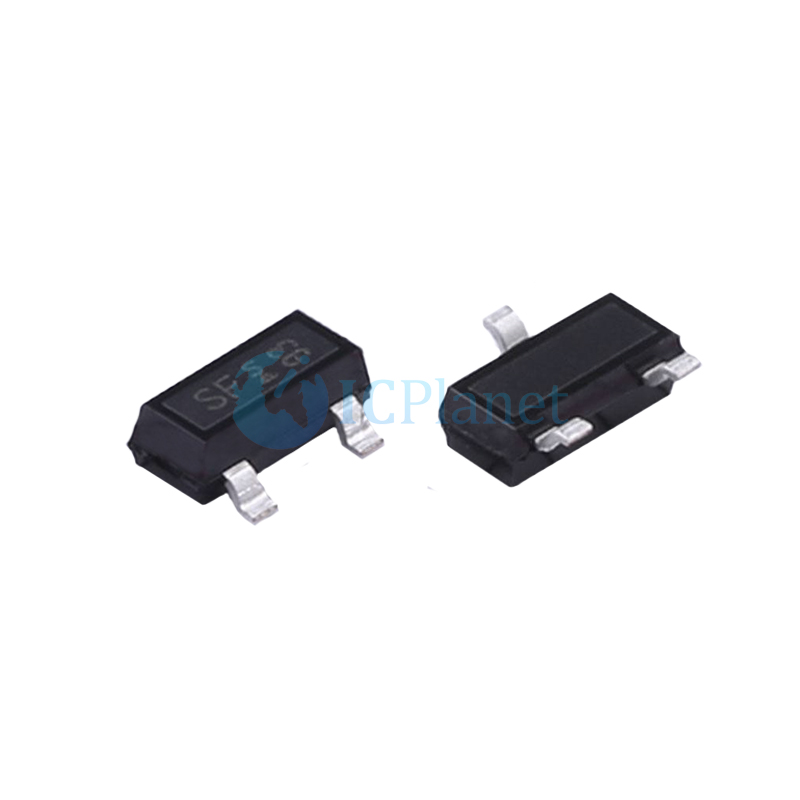

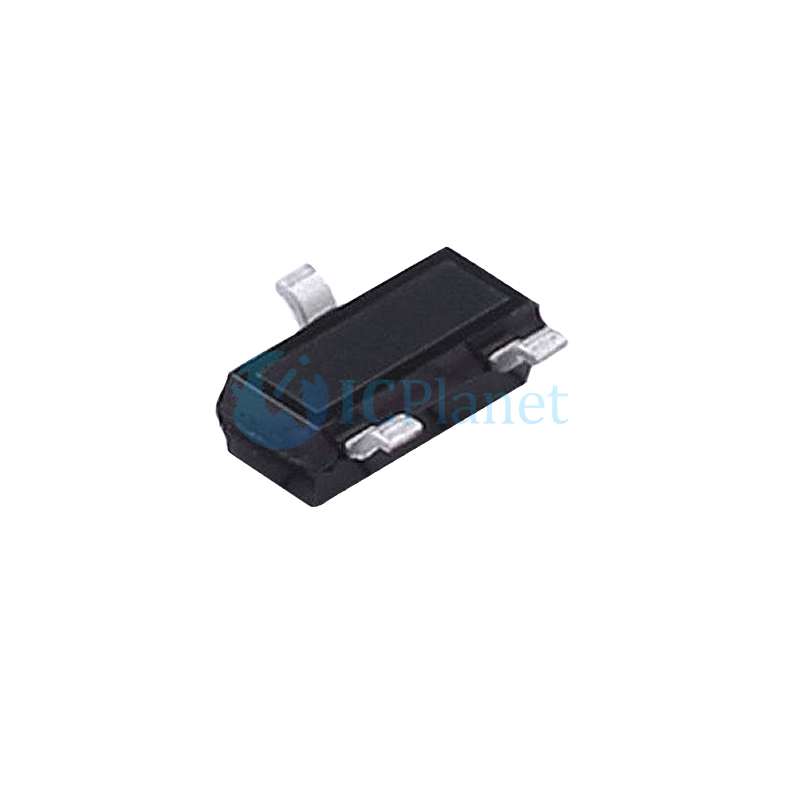

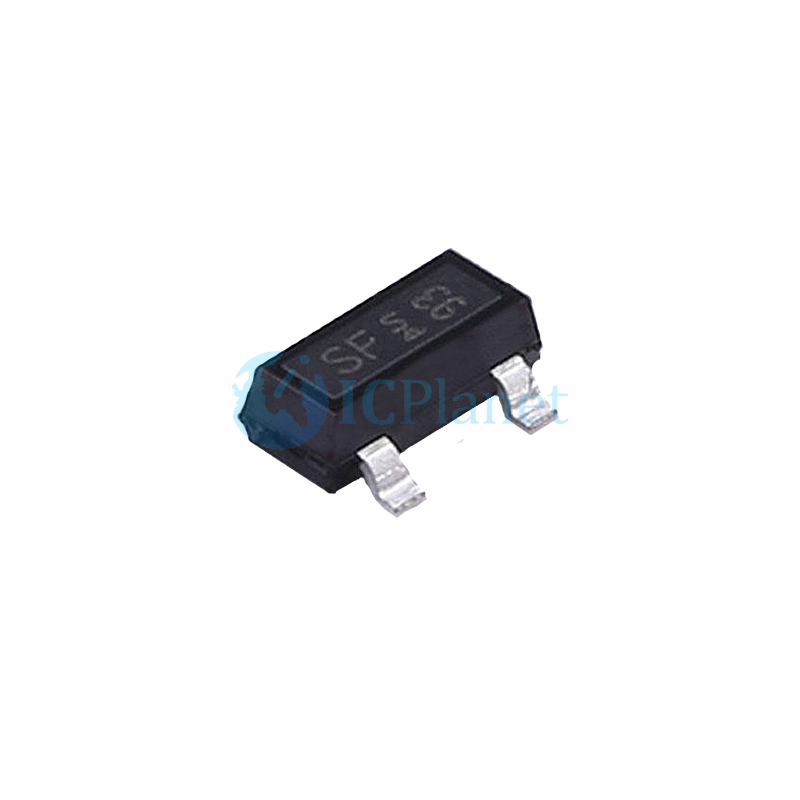

Package / Case | TO-236-3, SC-59, SOT-23-3 |
• N-channel
• Depletion mode
• dv /dt rated
• Available with V GS(th) indicator on reel
• Pb-free lead-plating; RoHS compliant
• Halogen-free according to AEC61249-2-21
• Qualified according to AEC Q101
