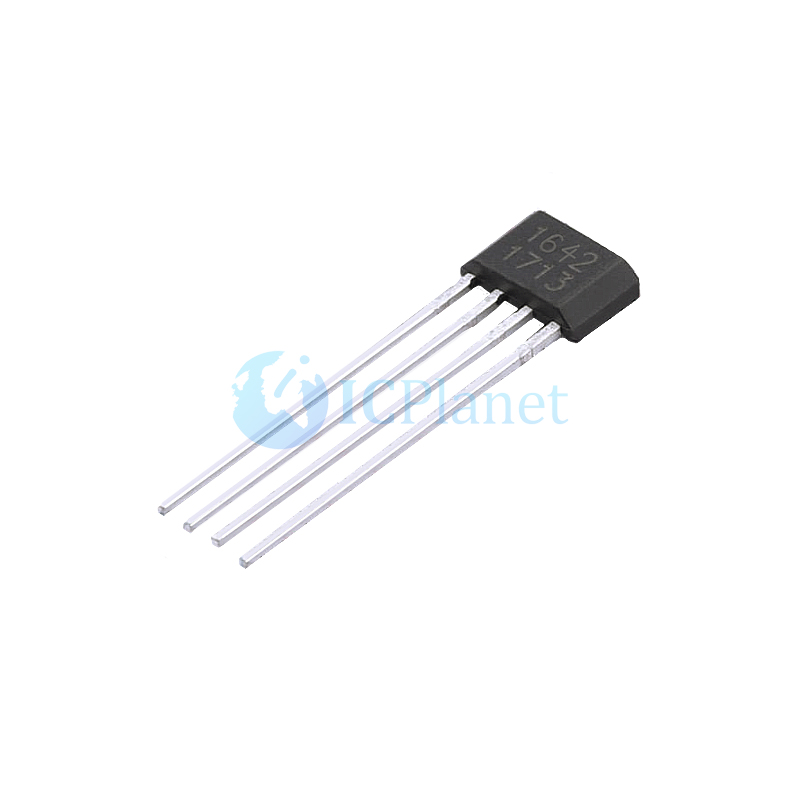

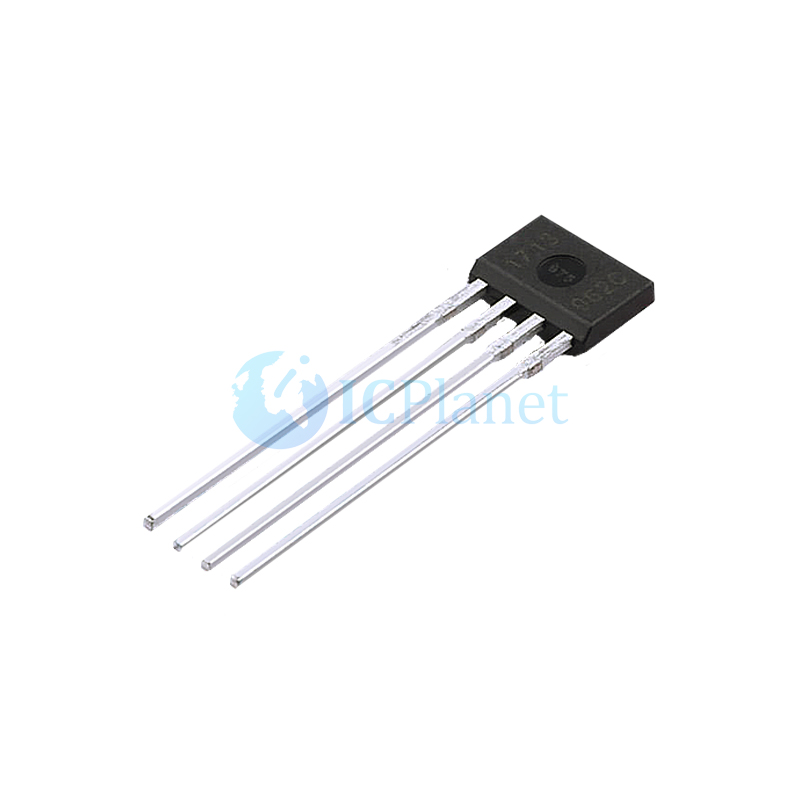

A1642LKNTN-I2-T
Allegro MicroSystems
ICPlanet
Digital Switch Special Purpose Open Collector Hall Effect 4-SIP
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Sensors, Transducers Magnetic Sensors - Switches (Solid State) |
Mfr | Allegro MicroSystems |
Series | - |
Package | Tape & Reel (TR) |
Part Status | Active |
Function | Special Purpose |
Technology | Hall Effect |
Polarization | - |
Sensing Range | - |
Test Condition | - |
Voltage - Supply | 4V ~ 24V |
Current - Supply (Max) | 16.8mA |
Current - Output (Max) | - |
Output Type | Open Collector |
Features | Temperature Compensated |
Operating Temperature | -40°C ~ 150°C (TA) |
Mounting Type | Through Hole |
Supplier Device Package | 4-SIP |
Package / Case | 4-SSIP |
This addendum adds a 4-pin SIP (suffix K) variant to the main datasheet for this device. For parameters not listed in this addendum, refer to the main datasheet. In the event of a conflict between this addendum and the main datasheet, this addendum takes precedence.
