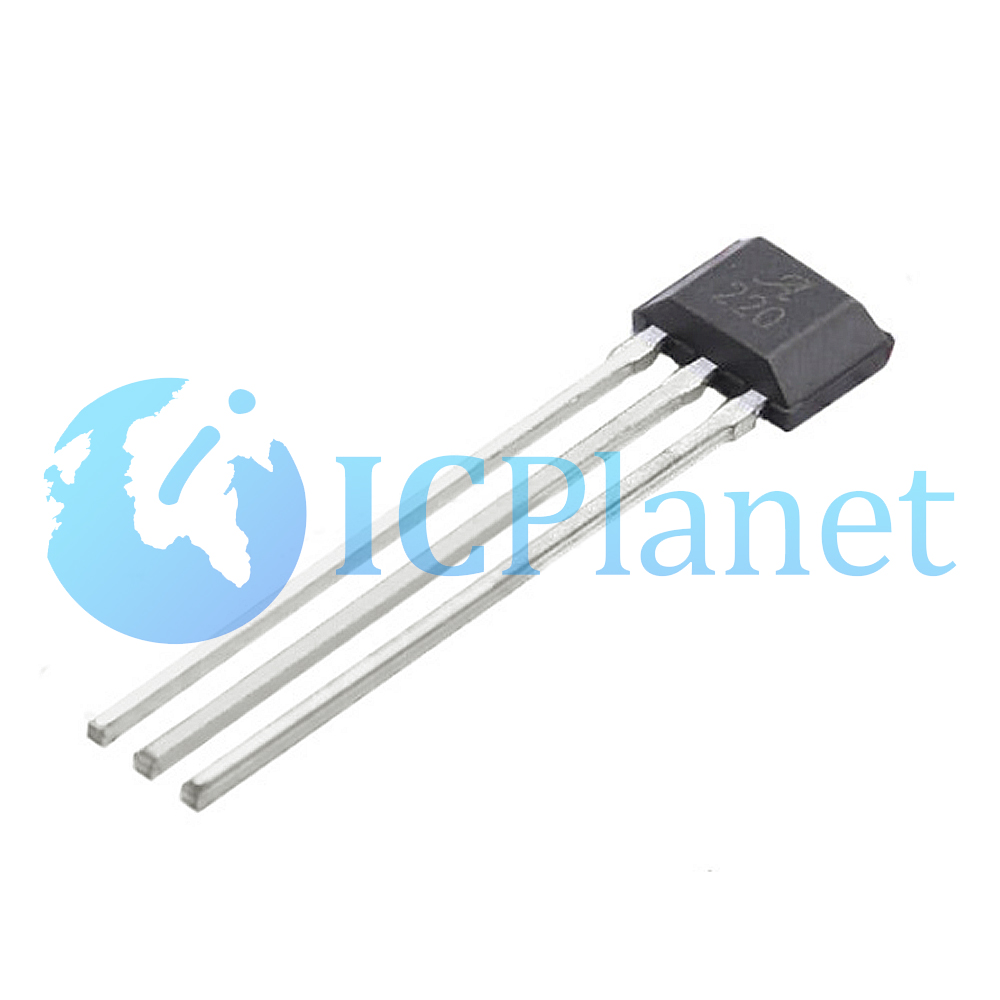

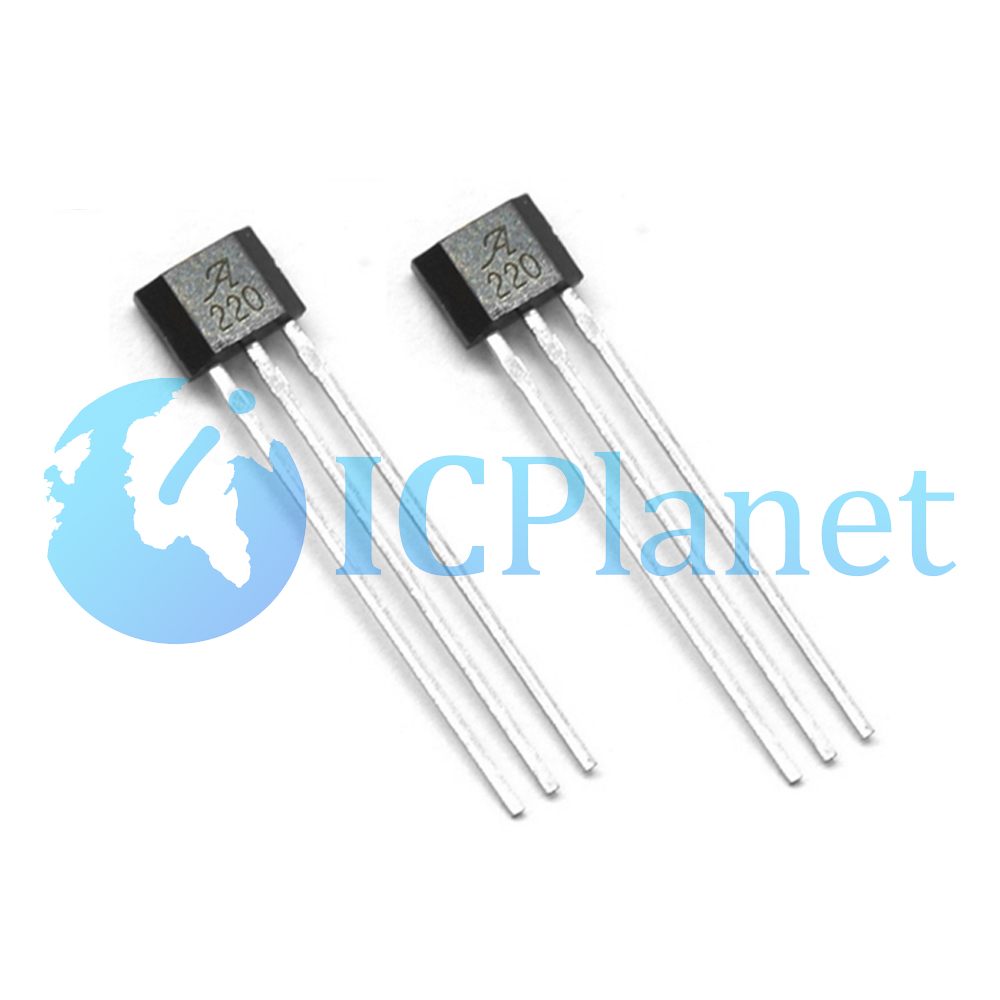

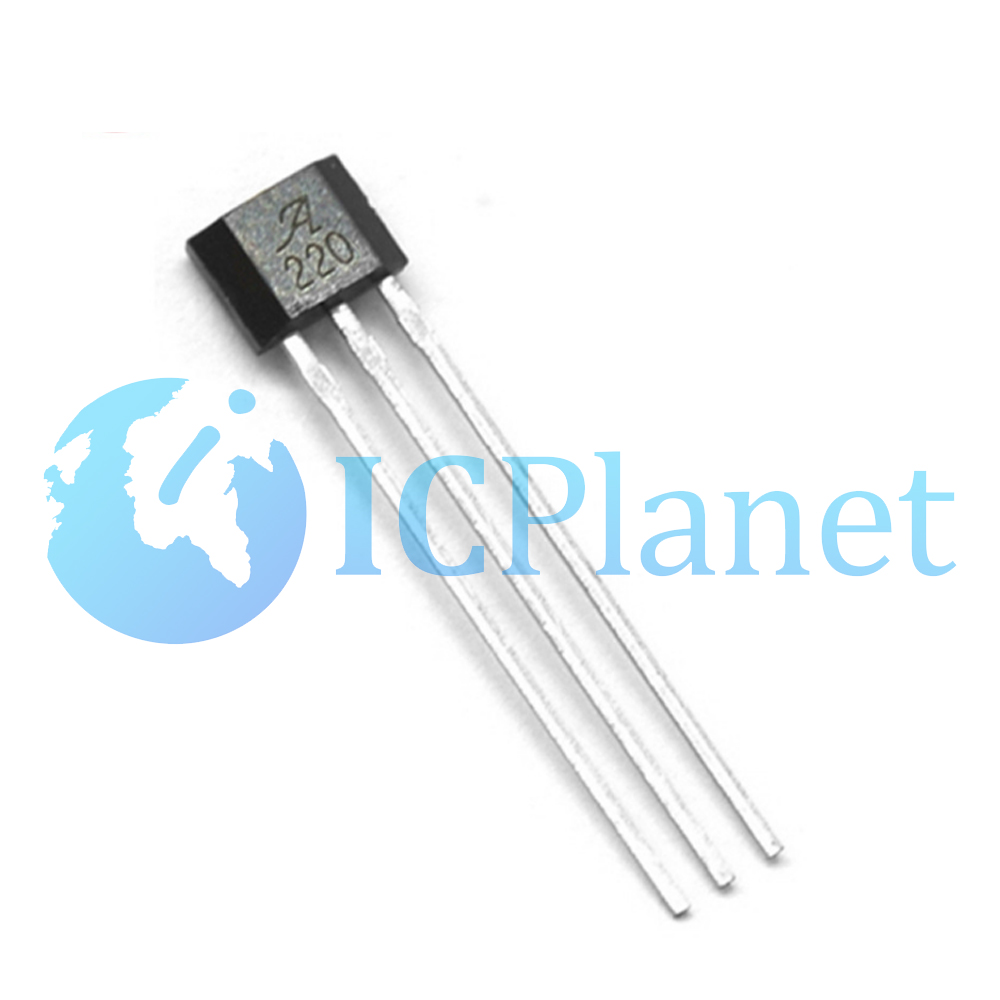

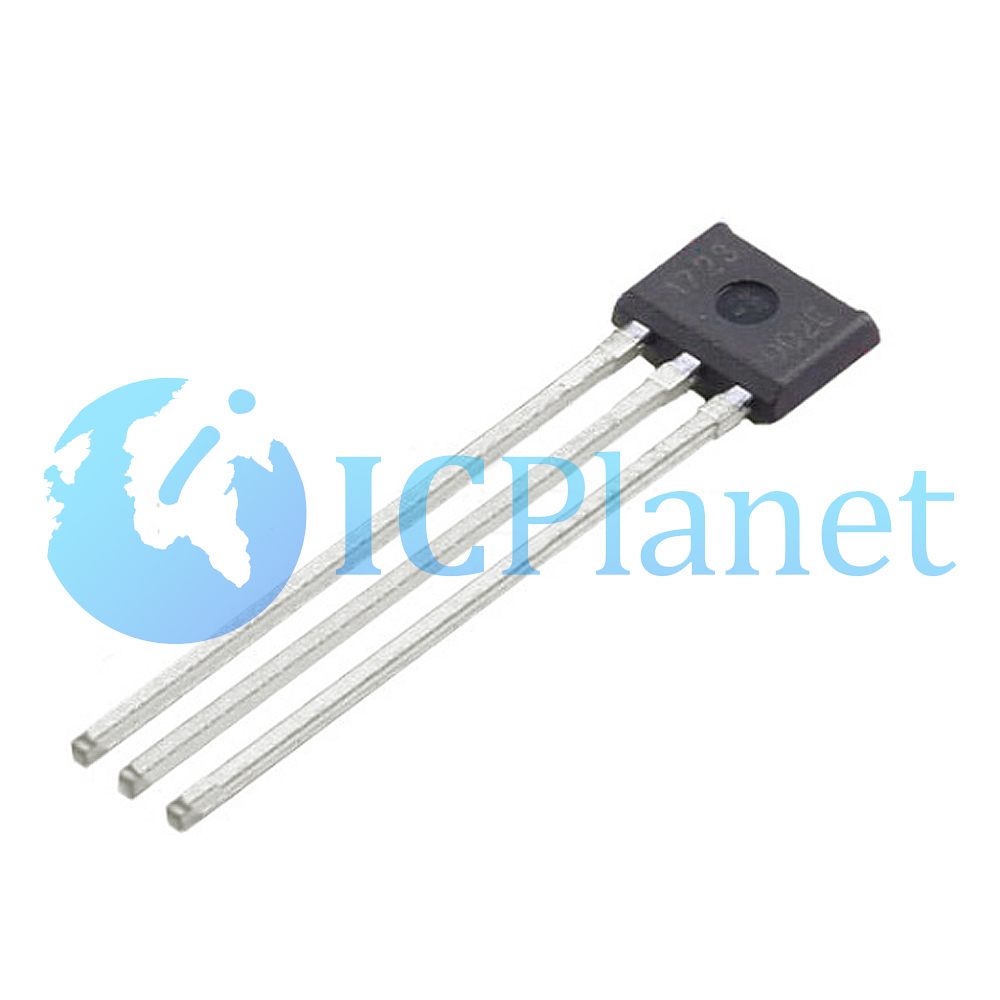

Product Attributes
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Magnetic Sensors - Switches (Solid State) | |
| Mfr | Allegro MicroSystems |
| Series | Automotive, AEC-Q100 |
| Package | Bulk |
| Part Status | Active |
| Function | Latch |
| Technology | Hall Effect |
| Polarization | South Pole |
| Sensing Range | 4mT Trip, -4mT Release |
| Test Condition | Ā·-40ā~150ā |
| Voltage - Supply | 3V ~ 24V |
| Current - Supply (Max) | 4mA |
| Current - Output (Max) | 25mA |
| Output Type | Open Drain |
| Features | - |
| Operating Temperature | Ā·-40ā~150ā |
| Mounting Type | Through Hole |
| Supplier Device Package | 3-SIP |
| Package / Case | 3-SSIP |
Chopper-Stabilized Precision Hall-Effect Latches
FEATURES AND BENEFITSļ¼
ā¢ AEC-Q100 automotive qualified
ā¢ Quality Managed (QM)
ā¢ Symmetrical latch switch points
ā¢ Resistant to physical stress
ā¢ Superior temperature stability
ā¢ Output short-circuit protection
ā¢ Operation from unregulated supply down to 3 V
ā¢ Reverse-battery protection
ā¢ Solid-state reliability
ā¢ Small package sizes
DESCRIPTION
The A1220, A1221, A1222, and A1223 Hall-effect sensor ICs are extremely temperature-stable and stress-resistant devices especially suited for operation over extended temperature ranges to 150Ā°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. Each device includes on a single silicon chip a voltage regulator, Hallvoltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-drain output to sink up to 25 mA. A south pole of sufficient strength turns the output on. A north pole of sufficient strength is necessary to turn the output off. An onboard regulator permits operation with supply voltages of 3 to 24 V. The advantage of operating down to 3 V is that the device can be used in 3 V applications or with additional
TYPICAL APPLICATIONS
Continued on next page...
ā¢ Automotive
ā¦ Power closures/actuators
ā¦ Electronic power steering
ā¦ Seat/windows/sunroof motors
ā¦ Trunk/door/liftgate motors
ā¢ Industrial motor/encoders
ā¢ Commutation/index sensing
ā¢ BLDC motors
ā¢ Fan motors
