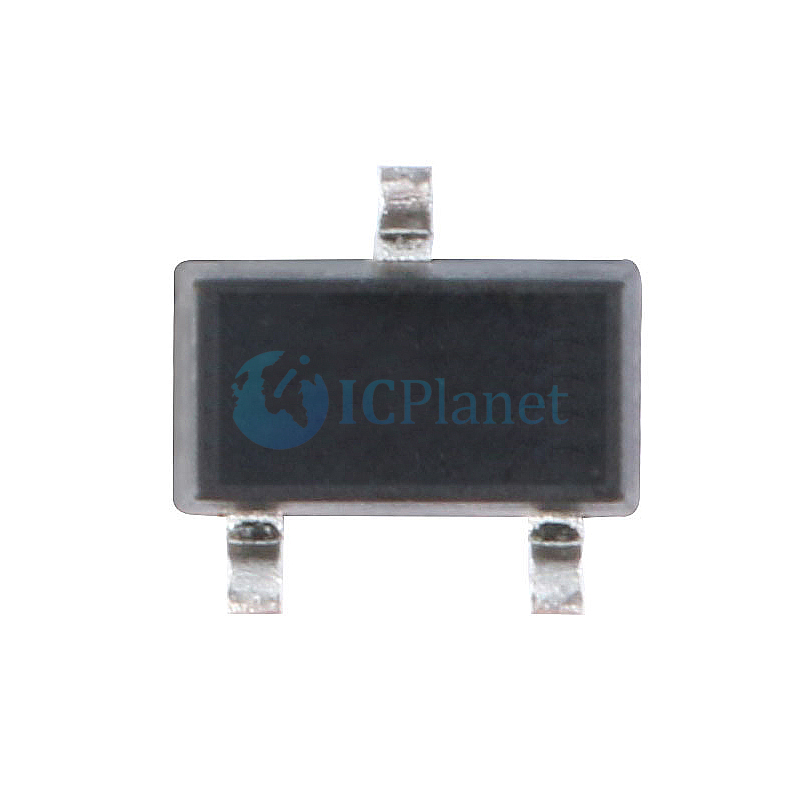

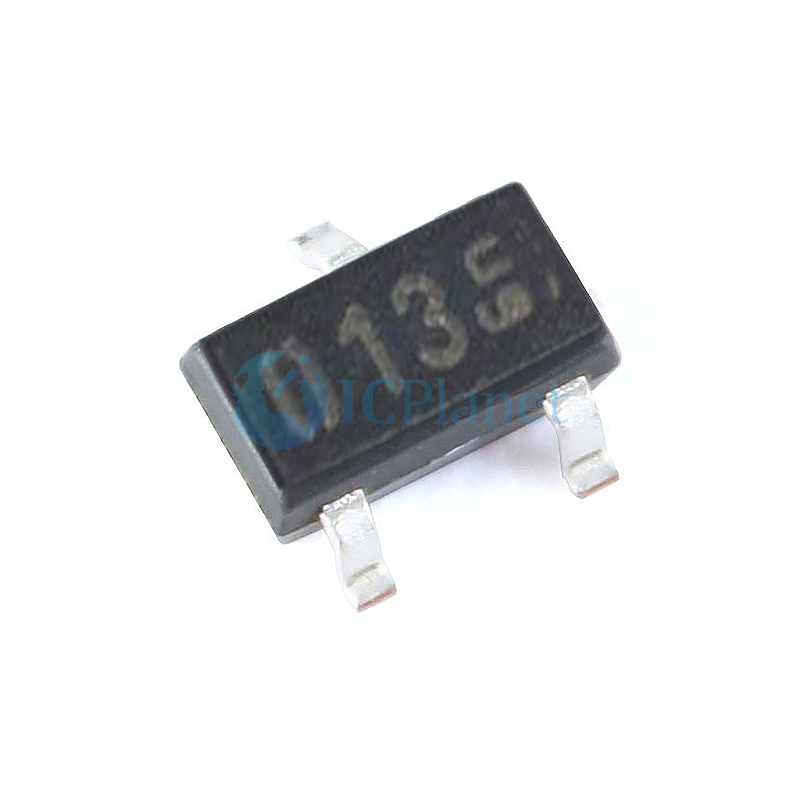

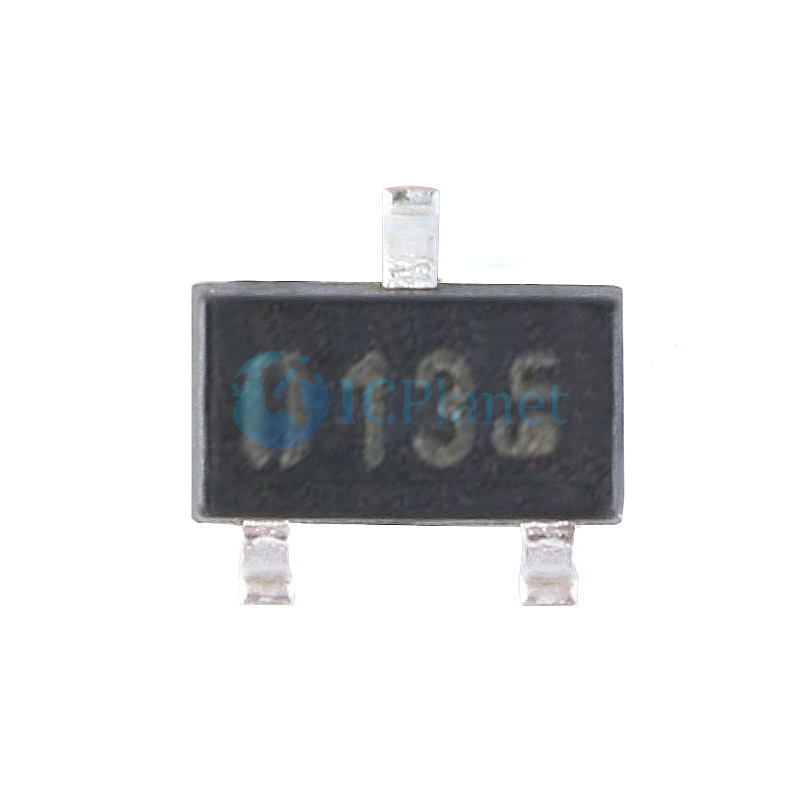

| Magnetic Digital Switch Omnipolar Switch Open Drain Hall Effect PG-SC59-3 |
TLE4913HTSA1
Infineon Technologies
TLE4913
ICPlanet
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Sensors, Transducers Magnetic Sensors - Switches (Solid State) |
Mfr | Infineon Technologies |
Series | Automotive, AEC-Q100 |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Function | Omnipolar Switch |
Technology | Hall Effect |
Polarization | North Pole, South Pole |
Sensing Range | ±5mT Trip, ±4.2mT Release |
Test Condition | 25°C |
Voltage - Supply | 2.4V ~ 5.5V |
Current - Supply (Max) | 2.5mA |
Current - Output (Max) | 2mA |
Output Type | Open Drain |
Features | Temperature Compensated |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Supplier Device Package | PG-SC59-3 |
Package / Case | TO-236-3, SC-59, SOT-23-3 |
Features
• Micro power design
• 2.4 V to 5.5 V battery operation
• High sensitivity and high stability of the magnetic switching points
• High resistance to mechanical stress
• Digital output signal • Switching for both poles of a magnet (omnipolar)
• Not suitable for automotive application
Functional Description
The TLE4913 is an Integrated Hall-Effect Sensor designed specifically to meet the requirements of low-power devices. e.g. as an On/Off switch in Cellular Flip-Phones, with battery operating voltages of 2.4V – 5.5V.
Precise magnetic switching points and high temperature stability are achieved through the unique design of the internal circuit.
An onboard clock scheme is used to reduce the average operating current of the IC.
During the operate phase the IC compares the actual magnetic field detected with the internally compensated switching points. The output Q is switched at the end of each operating phase.
During the Stand-by phase the output stage is latched and the current consumption of the device reduced to some µA.
The IC switching behaviour is Omnipolar, i.e. it can be switched on with either the North or South pole of a magnet.
