TLE4906LHALA1
Infineon Technologies
TLE4906L
ICPlanet
| Encapsulation: | |
|---|---|
| Quantity: | |
| PDF Export | |
TYPE | DESCRIPTION |
|---|---|
Category | Sensors, Transducers Magnetic Sensors - Switches (Solid State) |
Mfr | Infineon Technologies |
Series | Automotive, AEC-Q100 |
Package | Cut Tape (CT) Tape & Box (TB) |
Part Status | Active |
Function | Unipolar Switch |
Technology | Hall Effect |
Polarization | South Pole |
Sensing Range | 13.5mT Trip, 5mT Release |
Test Condition | 25°C |
Voltage - Supply | 2.7V ~ 18V |
Current - Supply (Max) | 6mA |
Current - Output (Max) | 20mA |
Output Type | Open Collector |
Features | Temperature Compensated |
Operating Temperature | -40°C ~ 150°C (TJ) |
Mounting Type | Through Hole |

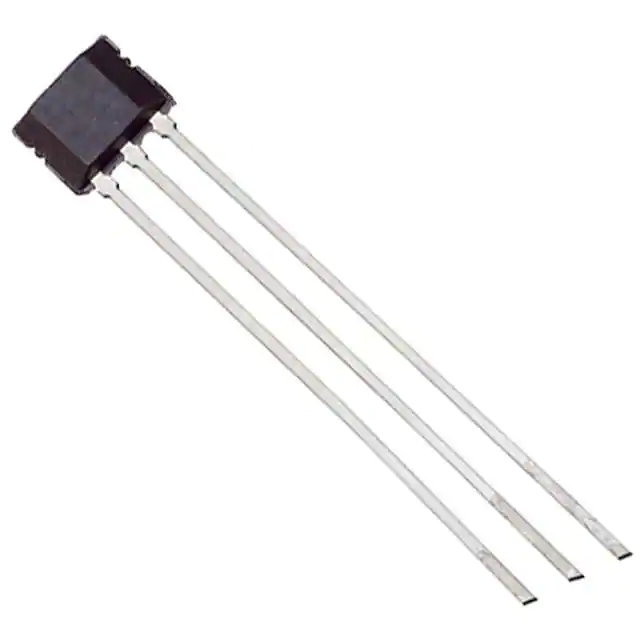

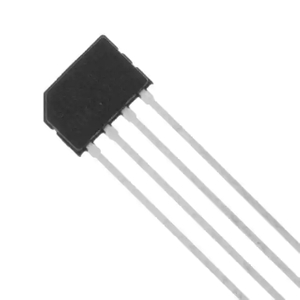

Supplier Device Package | PG-SSO-3-2 |
Package / Case | 3-SSIP, SSO-3-02 |
Features
• 2.7V to 24V supply voltage
• Operation from unregulated power supply
• High sensitivity and high stability of the magnetic switching points
• High resistance to mechanical stress by Active Error Compensation
• Reverse battery protection (-18V)
• Superior temperature stability
• Peak temperatures up to 195°C without damage
• Low jitter (typ. 1µs)
• High ESD performance (± 6kV HBM)
• Digital output signal

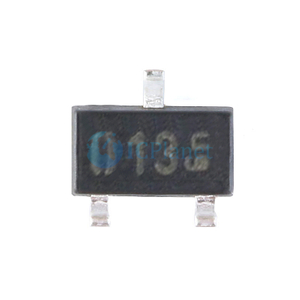

• SMD package SC59 (SOT23 compatible) - (TLE4906K))
• Leaded package PG-SSO-3-2 - (TLE4906L)
Target applications
Target applications for TLE4906 are all automotive applications which require a high precision Hall switch for position sensing with a operating temperature range from -40°C to +150°C.
